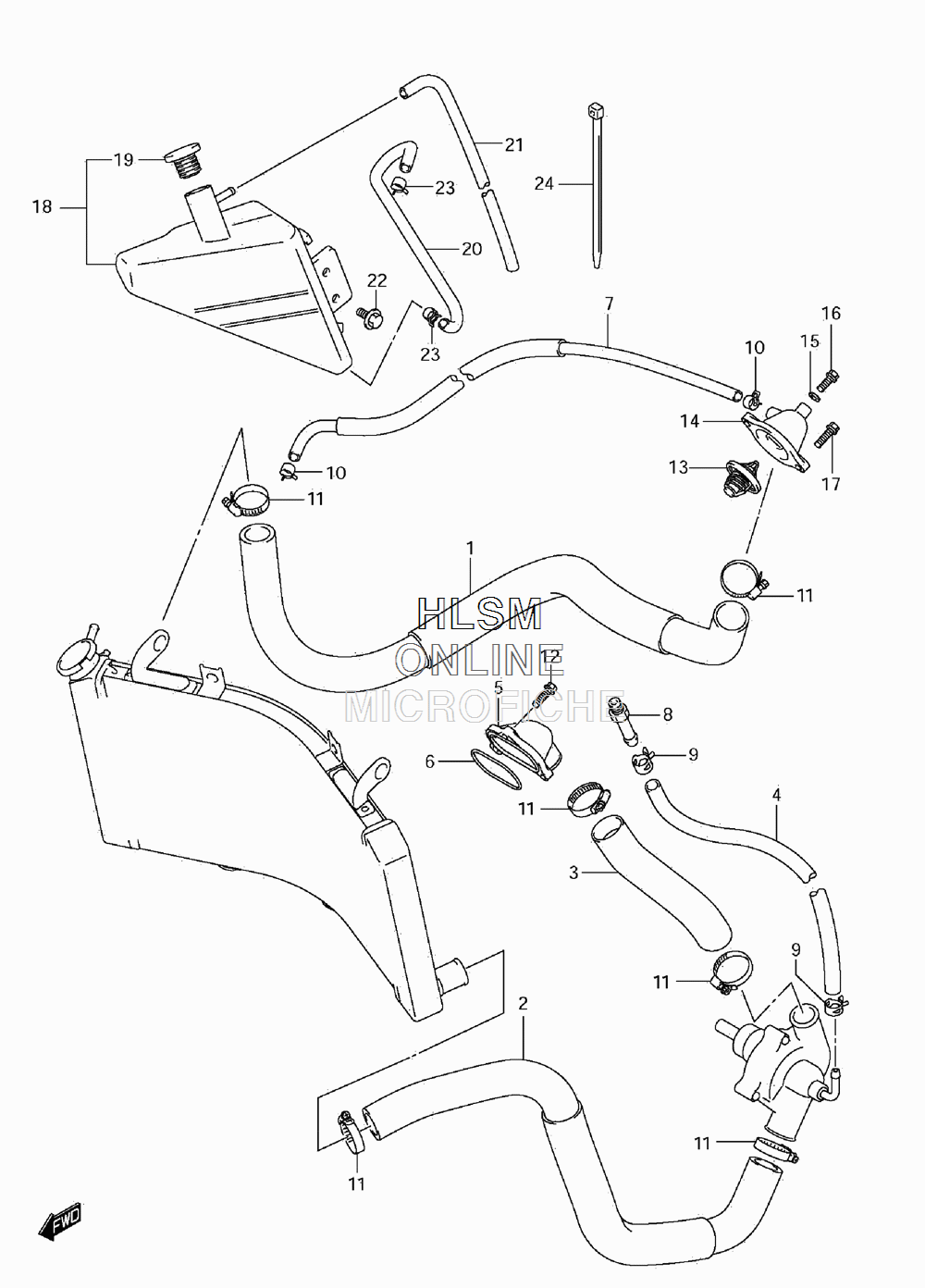

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX 1300R L1 - 2011 года выпуска
-
№АртикулНазвание
-
117851-15H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-15H00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-24F00 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
417854-24F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
517861-33E20 CONNECTORCONNECTOR
-
617863-33E00 O-RINGO-RING
-
717855-15H00 HOSE, WATER AIR BLEEDHOSE, WATER AIR BLEED
-
809362-09011 UNION, BYPASSUNION, BYPASS
-
909401-12409 CLIPCLIP
-
1009401-10409 CLIPCLIP
-
1109402-38512 CLAMPCLAMP
-
1201547-0620A BOLTBOLT
-
1317670-15H00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
1417661-35F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1509168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1617568-50F00 BOLTBOLT
-
1701547-0620A BOLTBOLT
-
1817910-15H00 TANK ASSY, RESERVOIR (INCL. 19)TANK ASSY, RESERVOIR (INCL. 19)
-
1917931-02FA0 CAPCAP
-
2017981-15H00 HOSE, RESERVER TANK INLETHOSE, RESERVER TANK INLET
-
2117982-22H00 HOSE, RESERVER TANK OVERFLOWHOSE, RESERVER TANK OVERFLOW
-
2209111-06085 BOLT (6X12)BOLT (6X12)
-
2309401-08411 CLIPCLIP
-
2409407-14407 CLAMP (L:145)CLAMP (L:145)
