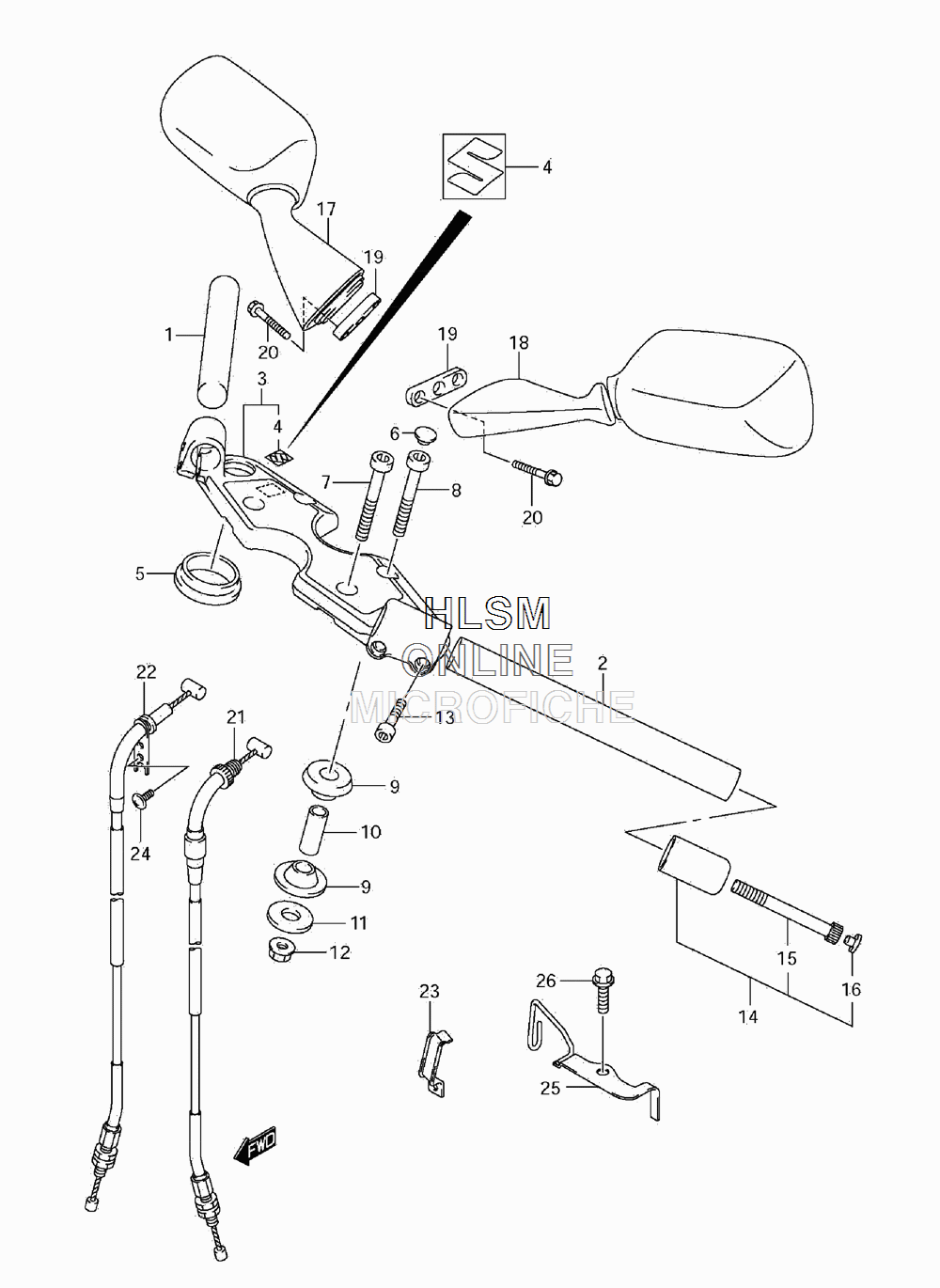

HANDLEBAR для Suzuki GSX 1300R L1 - 2011 года выпуска
-
№АртикулНазвание
-
156111-15H00 HANDLEBAR, RIGHT HANDHANDLEBAR, RIGHT HAND
-
256151-15H00 HANDLEBAR, LEFT HANDHANDLEBAR, LEFT HAND
-
356210-15H00 HOLDER, HANDLE (INCL. 4)HOLDER, HANDLE (INCL. 4)
-
468281-35F00 EMBLEMEMBLEM
-
556247-24F00 CUSHION, HANDLE HOLDERCUSHION, HANDLE HOLDER
-
656246-24F00 CAP, BOLTCAP, BOLT
-
707130-1065B BOLTBOLT
-
807130-1060A BOLTBOLT
-
956240-01D00 CUSHIONCUSHION
-
1056243-01D00 SPACERSPACER
-
1109160-10094 WASHER (10.5X30X3.2)WASHER (10.5X30X3.2)
-
1208319-3110A NUTNUT
-
1309106-06090 BOLT (6X25)BOLT (6X25)
-
1456200-15830 BALANCER SET, HANDLEBAR (INCL. 15 - 16)BALANCER SET, HANDLEBAR (INCL. 15 - 16)
-
1507130-0660B BOLTBOLT
-
1609250-05009 CAPCAP
-
1756500-24F00 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
1856600-24F00 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1994576-24F00 CUSHIONCUSHION
-
2001547-0630B BOLTBOLT
-
2158300-15H00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
2258300-15H10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
2358623-24F10 GUIDE, CABLEGUIDE, CABLE
-
2409125-05042 SCREW (5X10)SCREW (5X10)
-
2558620-15H00 GUIDE, CABLEGUIDE, CABLE
-
2601547-0612B BOLTBOLT
