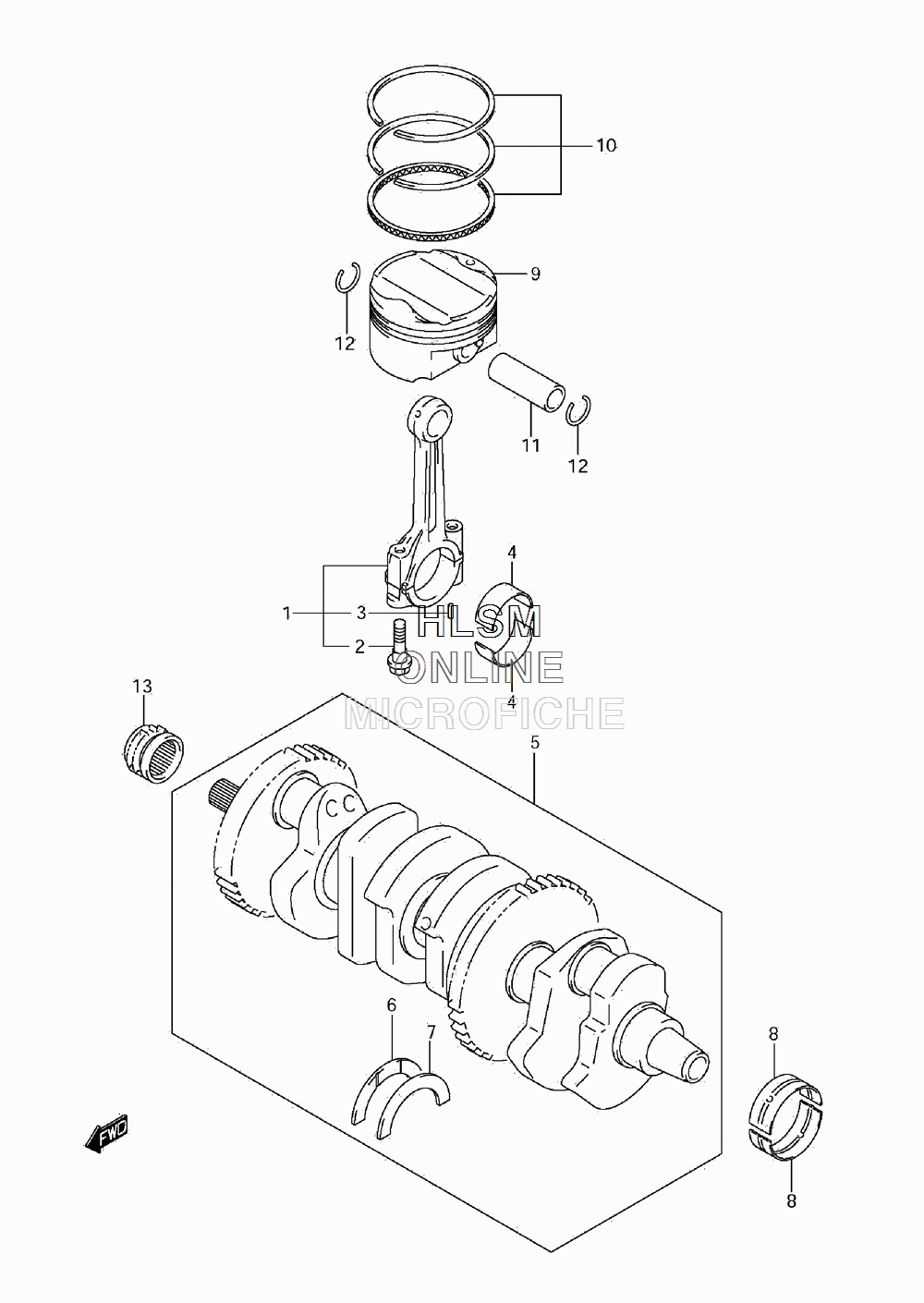

CRANKSHAFT W/ PISTON для Suzuki GSX 1300R L1 - 2011 года выпуска
-
№АртикулНазвание
-
112160-15H00 ROD ASSY, CONNECTING (INCL. 2 - 3)ROD ASSY, CONNECTING (INCL. 2 - 3)
-
212163-24F10 BOLTBOLT
-
304221-04089 PIN, CONNRODPIN, CONNROD
-
412164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-15810 CRANKSHAFT SET (INCL. 6 - 7)CRANKSHAFT SET (INCL. 6 - 7)
-
612228-24F00-0D0 BEARING, THRUST RIGHT HAND (GREEN)BEARING, THRUST RIGHT HAND (GREEN)
-
712228-24F00-0A0 BEARING, THRUST LEFT HAND (RED)BEARING, THRUST LEFT HAND (RED)
-
712228-24F00-0B0 BEARING, THRUST LEFT HAND (BLACK)BEARING, THRUST LEFT HAND (BLACK)
-
712228-24F00-0C0 BEARING, THRUST LEFT HAND (BLUE)BEARING, THRUST LEFT HAND (BLUE)
-
712228-24F00-0D0 BEARING, THRUST LEFT HAND (GREEN)BEARING, THRUST LEFT HAND (GREEN)
-
712228-24F00-0E0 BEARING, THRUST LEFT HAND (YELLOW)BEARING, THRUST LEFT HAND (YELLOW)
-
712228-24F00-0F0 BEARING, THRUST LEFT HAND (WHITE)BEARING, THRUST LEFT HAND (WHITE)
-
812229-15H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-15H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-15H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-15H00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
812229-15H00-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
912111-15H00-0F0 PISTONPISTON
-
1012140-15H00 RING SET, PISTONRING SET, PISTON
-
1112151-07D00 PIN, PISTONPIN, PISTON
-
1209381-18003 CIRCLIPCIRCLIP
-
1312731-24F10 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
