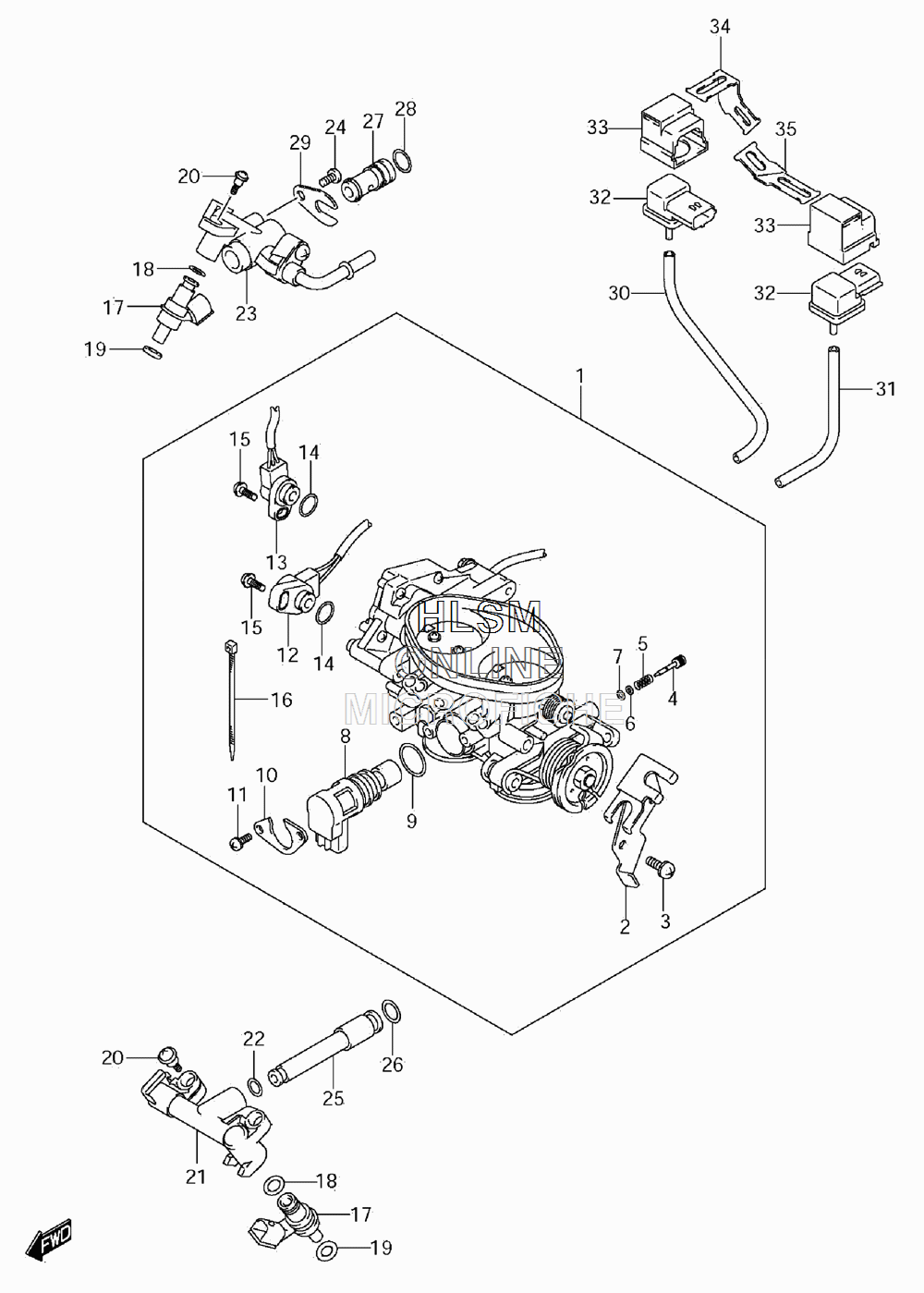

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki VL800T L1 - 2011 года выпуска
-
№АртикулНазвание
-
113401-41F20 BODY, THROTTLE (INCL. 2 - 16)BODY, THROTTLE (INCL. 2 - 16)
-
213565-41F20 PLATE, STAYPLATE, STAY
-
313601-21H00 SCREWSCREW
-
413269-18G00 SCREWSCREW
-
513271-43E00 SPRINGSPRING
-
613291-26E00 WASHERWASHER
-
713295-26E00 O RINGO RING
-
818117-15H11 VALVE ASSY, ISCVALVE ASSY, ISC
-
918119-05H00 O RINGO RING
-
1013428-15H00 PLATE, STAYPLATE, STAY
-
1113605-15H00 SCREWSCREW
-
1213580-40F20 SENSOR ASSY, MAINSENSOR ASSY, MAIN
-
1313580-41F00 SENSOR ASSY, SUBSENSOR ASSY, SUB
-
1413575-40F00 O RINGO RING
-
1513605-40F00 SCREWSCREW
-
1609407-14407 BANDBAND
-
1715710-26GA0 INJECTOR ASSYINJECTOR ASSY
-
1815721-21H00 O RINGO RING
-
1915722-21H00 O RINGO RING
-
2013602-34F50 SCREWSCREW
-
2113473-41FA0 PIPE SET, FUEL FRPIPE SET, FUEL FR
-
2215721-24F00 O RINGO RING
-
2313473-41FB0 PIPE SET, FUEL RRPIPE SET, FUEL RR
-
2413602-10F10 SCREWSCREW
-
2513473-41FC0 JOINTJOINT
-
2615721-10G00 O RINGO RING
-
2713474-41F20 PLUG, STRAIGHTPLUG, STRAIGHT
-
2815721-41F20 O RINGO RING
-
2913475-41F20 PLATEPLATE
-
3013683-41FA0 HOSEHOSE
-
3113683-41FD0 HOSEHOSE
-
3218591-42F00 SENSOR, PRESSURESENSOR, PRESSURE
-
3318595-42F20 HOLDERHOLDER
-
3418598-41F00 BRACKET, BOOST SENSOR FRBRACKET, BOOST SENSOR FR
-
3518599-39G00 BRACKET, BOOST SENSOR RRBRACKET, BOOST SENSOR RR
