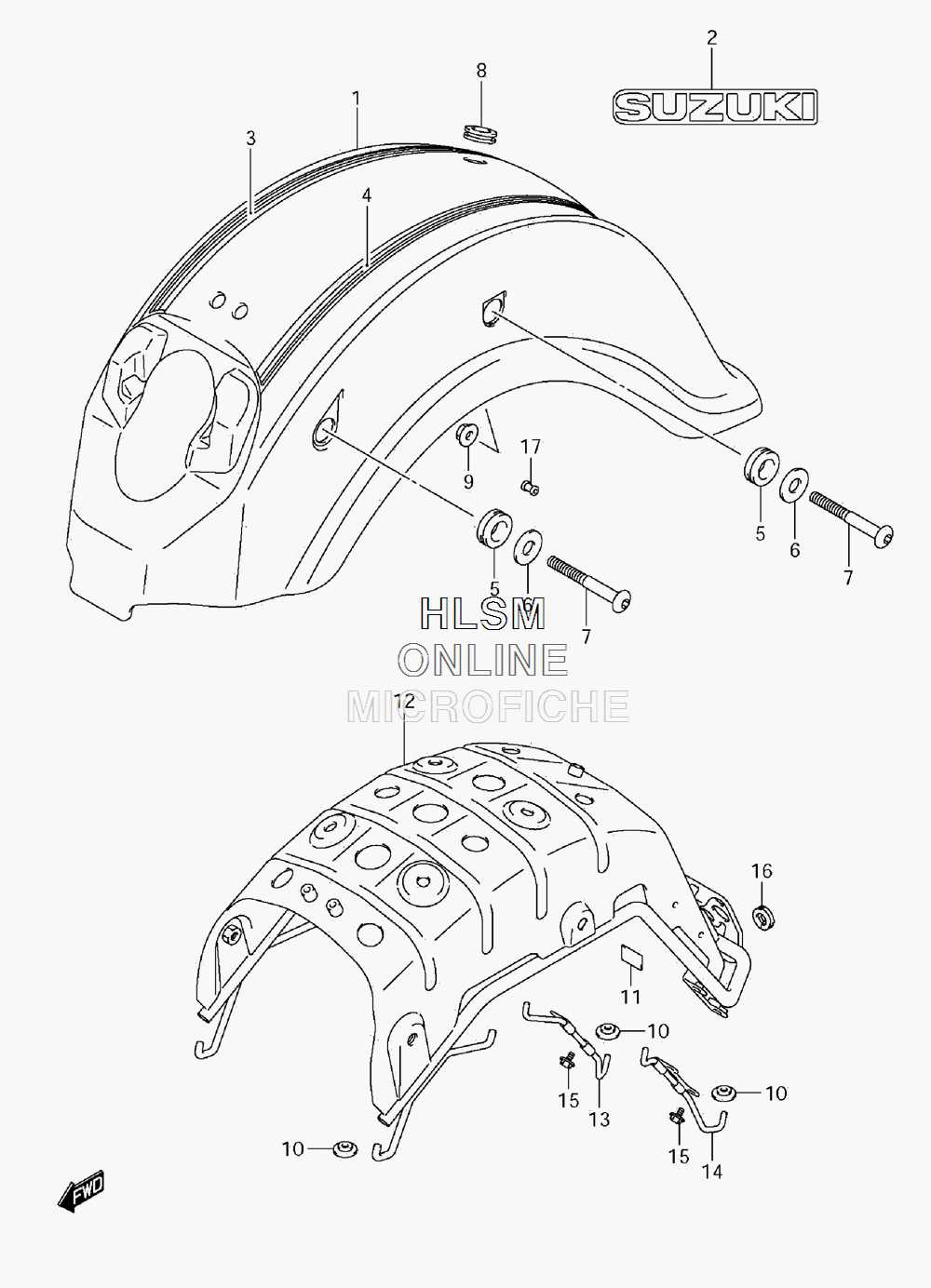

FENDER - REAR (CANADA) для Suzuki VL800T L1 - 2011 года выпуска
-
№АртикулНазвание
-
163110-43H20-JEY FENDER, REAR (WHITE/SILVER) (JEY)FENDER, REAR (WHITE/SILVER) (JEY)
-
163110-43H20-JEZ FENDER, REAR (BLACK/GRAY) (JEZ)FENDER, REAR (BLACK/GRAY) (JEZ)
-
268271-34A00-YES EMBLEM (SILVER) (YES FOR JEY, JEZ)EMBLEM (SILVER) (YES FOR JEY, JEZ)
-
368170-43H00-JFK TAPE SET, RIGHT HAND (JFK FOR JEY)TAPE SET, RIGHT HAND (JFK FOR JEY)
-
368170-43H00-JFL TAPE SET, RIGHT HAND (JFL FOR JEZ)TAPE SET, RIGHT HAND (JFL FOR JEZ)
-
468710-43H00-JFK TAPE SET, LEFT HAND (JFK FOR JEY)TAPE SET, LEFT HAND (JFK FOR JEY)
-
468710-43H00-JFL TAPE SET, LEFT HAND (JFL FOR JEZ)TAPE SET, LEFT HAND (JFL FOR JEZ)
-
547191-24F00 CUSHIONCUSHION
-
609160-15002 WASHER (15.5X26X2.3)WASHER (15.5X26X2.3)
-
763161-41F00 BOLTBOLT
-
809320-15008 CUSHION, PILLION SEATCUSHION, PILLION SEAT
-
908316-1008B NUTNUT
-
1009320-06026 CUSHION, REARCUSHION, REAR
-
1153145-17C11 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1263130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1363150-43H00 BRACKET, LOWER RIGHT HANDBRACKET, LOWER RIGHT HAND
-
1463160-43H00 BRACKET, LOWER LEFT HANDBRACKET, LOWER LEFT HAND
-
1501550-0610B BOLTBOLT
-
1609308-10017 GROMMET, MUDGUARDGROMMET, MUDGUARD
-
1709250-07004 CUSHION, GRIPCUSHION, GRIP
