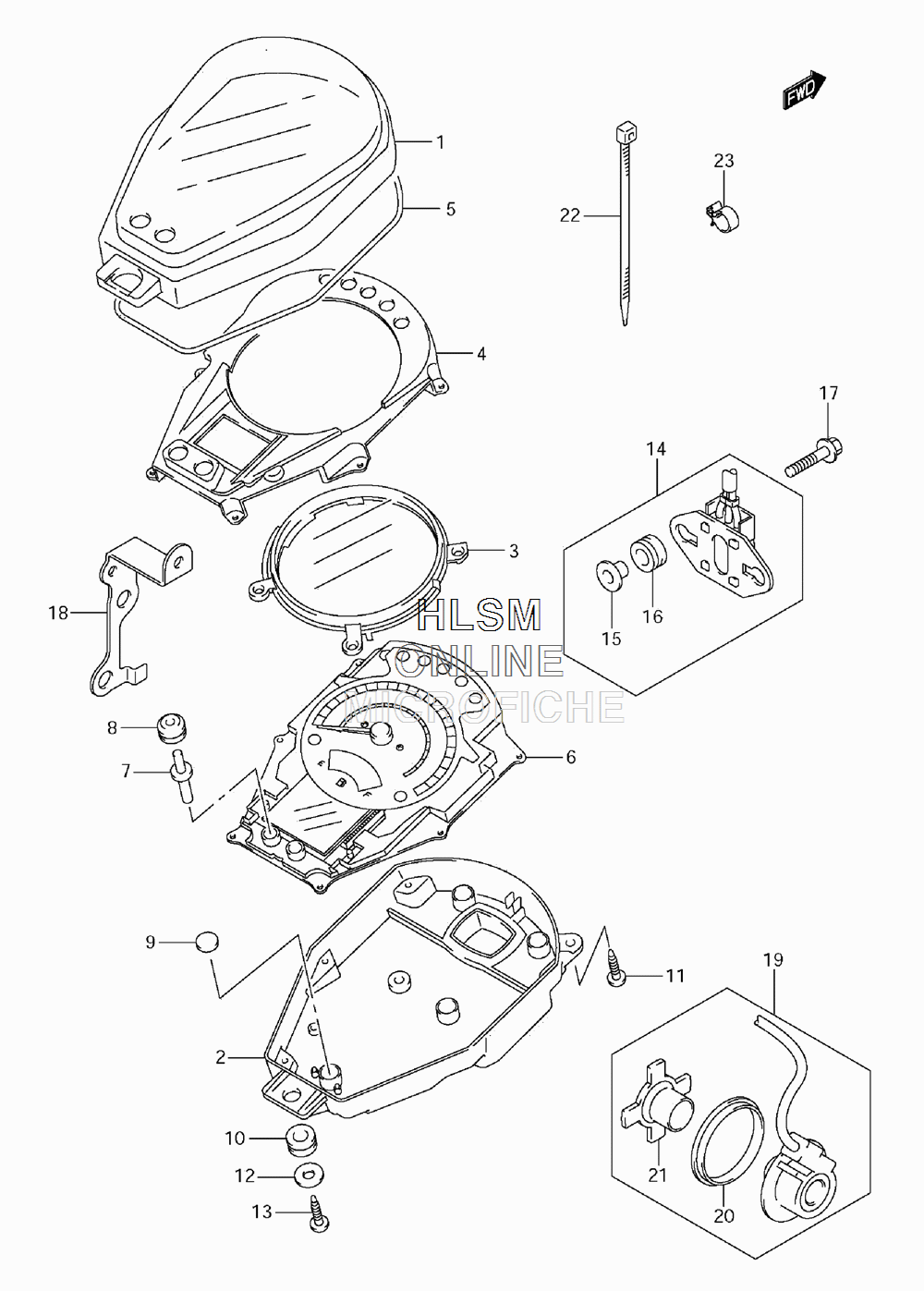

SPEEDOMETER (CALIF ONLY) для Suzuki VL800T L1 - 2011 года выпуска
-
№АртикулНазвание
-
134151-43H00 CASE ASSYCASE ASSY
-
234156-43H00 CASE, LOWERCASE, LOWER
-
334193-43H00 RINGRING
-
434125-43H40 PLATE, WINDOWPLATE, WINDOW
-
534153-43H00 PACKING, RUBBERPACKING, RUBBER
-
634120-43H50 SPEEDOMETER (MILE/KILO)SPEEDOMETER (MILE/KILO)
-
734124-16G00 NOBNOB
-
834126-44G00 BUSHINGBUSHING
-
934167-13E00 CUSHION, METERCUSHION, METER
-
1034996-43410 CUSHION, METERCUSHION, METER
-
1134183-29F00 SCREW (3X12)SCREW (3X12)
-
1209160-05037 WASHER (5.5X16X1.2)WASHER (5.5X16X1.2)
-
1303541-0516A SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1436510-39F00 RESISTOR ASSY (INCL. 15 - 16)RESISTOR ASSY (INCL. 15 - 16)
-
1509180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
1609320-10015 CUSHIONCUSHION
-
1709116-06047 BOLT (6X25)BOLT (6X25)
-
1834938-41F50 GUIDE, SPEED SENSORGUIDE, SPEED SENSOR
-
1934990-41F10 SENSOR, SPEEDO (INCL. 20 - 21)SENSOR, SPEEDO (INCL. 20 - 21)
-
2009286-44001 SEALSEAL
-
2134983-27G00 MAGNETMAGNET
-
2209407-14407 CLAMP (L:145)CLAMP (L:145)
-
2309403-06410 CLIP, SENSOR LEADCLIP, SENSOR LEAD
