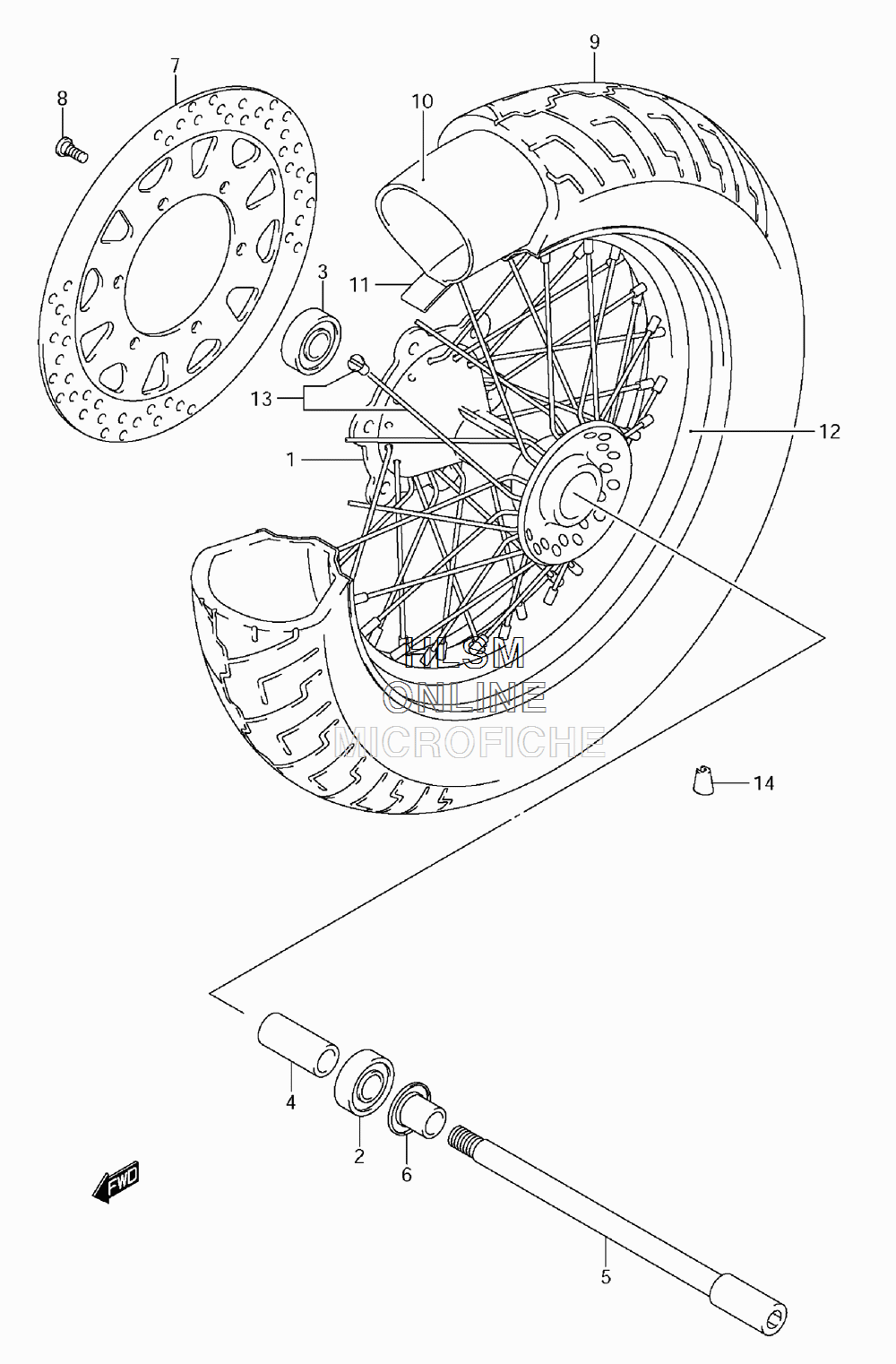

WHEEL - FRONT (EXCEPT CALIF) для Suzuki VL800T L1 - 2011 года выпуска
-
№АртикулНазвание
-
154111-41F20 HUB, FRONT WHEELHUB, FRONT WHEEL
-
208133-62037 BEARING, FRONT HUB LEFT HANDBEARING, FRONT HUB LEFT HAND
-
308143-62037 BEARING, FRONT HUB RIGHT HANDBEARING, FRONT HUB RIGHT HAND
-
409180-17080 SPACER, BEARINGSPACER, BEARING
-
554711-41F00 AXLE, FRONTAXLE, FRONT
-
654740-32C00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
759211-41F00 DISC, FRONT BRAKE RIGHT HANDDISC, FRONT BRAKE RIGHT HAND
-
859421-03A20 BOLTBOLT
-
955100-41F10 TIRE, FRONT, 130/90-16M/C 67H (IRC)TIRE, FRONT, 130/90-16M/C 67H (IRC)
-
1055200-41F00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1155261-41F00 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1255311-41F01 RIM, FRONT WHEEL (16XMT3.00)RIM, FRONT WHEEL (16XMT3.00)
-
1355320-41F00 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
1455411-26G00 BALANCER, WHEELBALANCER, WHEEL
-
1455413-41F00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
