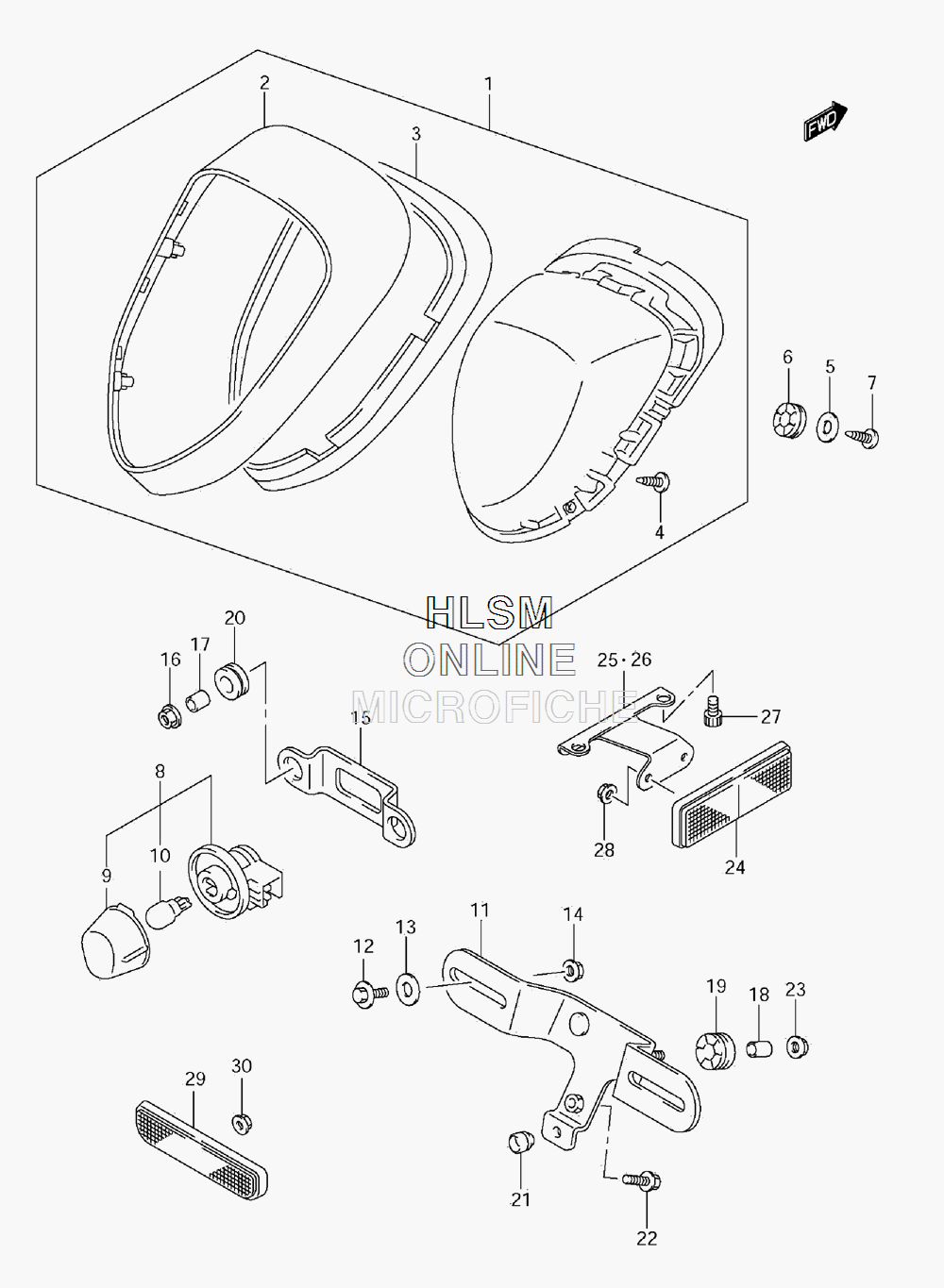

TAILLIGHT ASSY. (CALIF ONLY) для Suzuki VL800T L1 - 2011 года выпуска
-
№АртикулНазвание
-
135710-43H00 LAMP ASSY, REAR COMB (INCL. 2 - 4)LAMP ASSY, REAR COMB (INCL. 2 - 4)
-
235717-43H00 COVERCOVER
-
335713-43H00 RUBBERRUBBER
-
435623-41400 SCREW (3X12)SCREW (3X12)
-
509160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
635765-43H00 CUSHION, REAR COMBCUSHION, REAR COMB
-
703541-0512A SCREW, REAR COMBSCREW, REAR COMB
-
835910-14F01 LAMP ASSY, LICENSE (INCL. 9 - 10)LAMP ASSY, LICENSE (INCL. 9 - 10)
-
935912-14F11 LENSLENS
-
1009471-12216 BULB (12V5W)BULB (12V5W)
-
1135927-43H30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1209116-06168 BOLT (6X16)BOLT (6X16)
-
1309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1408316-1006A NUT, LICENSE PLATENUT, LICENSE PLATE
-
1535928-43H00 BRACKET, LICENSE LAMPBRACKET, LICENSE LAMP
-
1609159-05049 NUT, LICENSE BKTNUT, LICENSE BKT
-
1709180-05054 SPACER (5.5X9.5X11.5)SPACER (5.5X9.5X11.5)
-
1809180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1909320-10051 CUSHION, LICENSE PLATE BRACKETCUSHION, LICENSE PLATE BRACKET
-
2009320-10054 CUSHION, LICENSE LAMP BRACKETCUSHION, LICENSE LAMP BRACKET
-
2109321-06013 CUSHION, LICENSE PLATECUSHION, LICENSE PLATE
-
2201550-0625A BOLT, LICENSE PLATE BRACKETBOLT, LICENSE PLATE BRACKET
-
2308316-1006A NUT, LICENSE PLATE BRACKETNUT, LICENSE PLATE BRACKET
-
2435970-07F01 REFLECTOR ASSY, RR SIDEREFLECTOR ASSY, RR SIDE
-
2535975-43H00 BRACKET, RR SIDE RR, RIGHT HANDBRACKET, RR SIDE RR, RIGHT HAND
-
2635976-43H00 BRACKET, RR SIDE RR, LEFT HANDBRACKET, RR SIDE RR, LEFT HAND
-
2707130-0612A BOLT, RR SIDE RR BRACKETBOLT, RR SIDE RR BRACKET
-
2808316-1005A NUT, RR SIDE RRNUT, RR SIDE RR
-
2935970-05H00 REFLECTOR ASSY, RRREFLECTOR ASSY, RR
-
3008316-1005A NUT, REAR RRNUT, REAR RR
