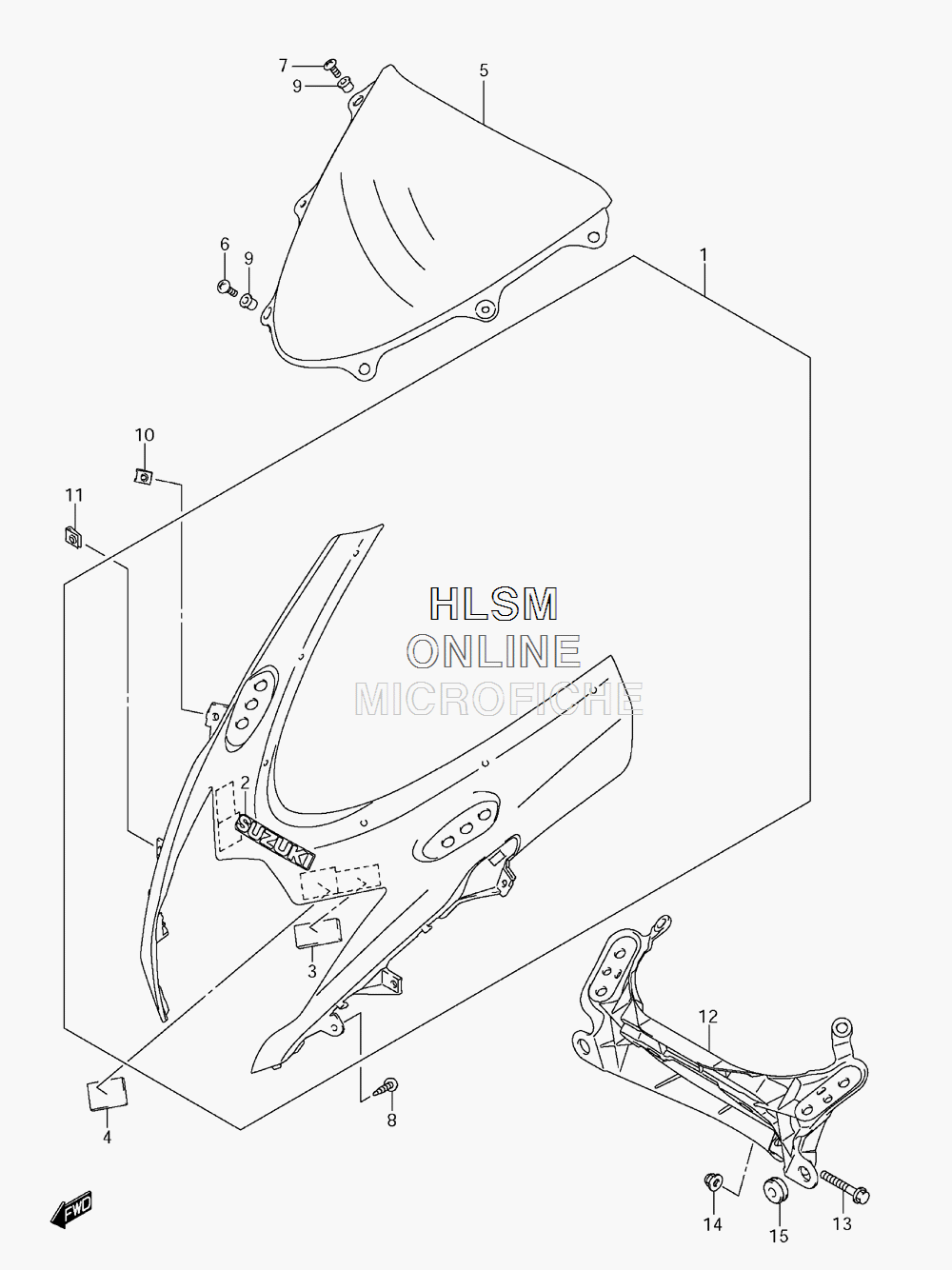

COWLING BODY для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
194410-14J10-YSF BODY, COWLING (YSF - WHITE FOR GLR)BODY, COWLING (YSF - WHITE FOR GLR)
-
194410-14J10-YMF BODY, COWLING (YMF - DAYTONA YELLOW FOR KGK)BODY, COWLING (YMF - DAYTONA YELLOW FOR KGK)
-
268641-19F00-YBD ...EMBLEM, "SUZUKI" (WHITE FOR YSF - WHITE)...EMBLEM, "SUZUKI" (WHITE FOR YSF - WHITE)
-
268281-24F10-019 ...EMBLEM, "SUZUKI" (BLACK FOR YMF - YELLOW)...EMBLEM, "SUZUKI" (BLACK FOR YMF - YELLOW)
-
392146-14J00 ...CUSHION...CUSHION
-
444572-02F01 FASTENERFASTENER
-
594611-14J00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
803541-0516A SCREWSCREW
-
909159-05019 NUTNUT
-
1009148-05052 NUTNUT
-
1109148-05047 NUTNUT
-
1294511-14J00 BRACE, COWLINGBRACE, COWLING
-
1309103-08207 BOLT (8X45)BOLT (8X45)
-
1408313-2008A NUTNUT
-
1509320-08047 CUSHIONCUSHION
