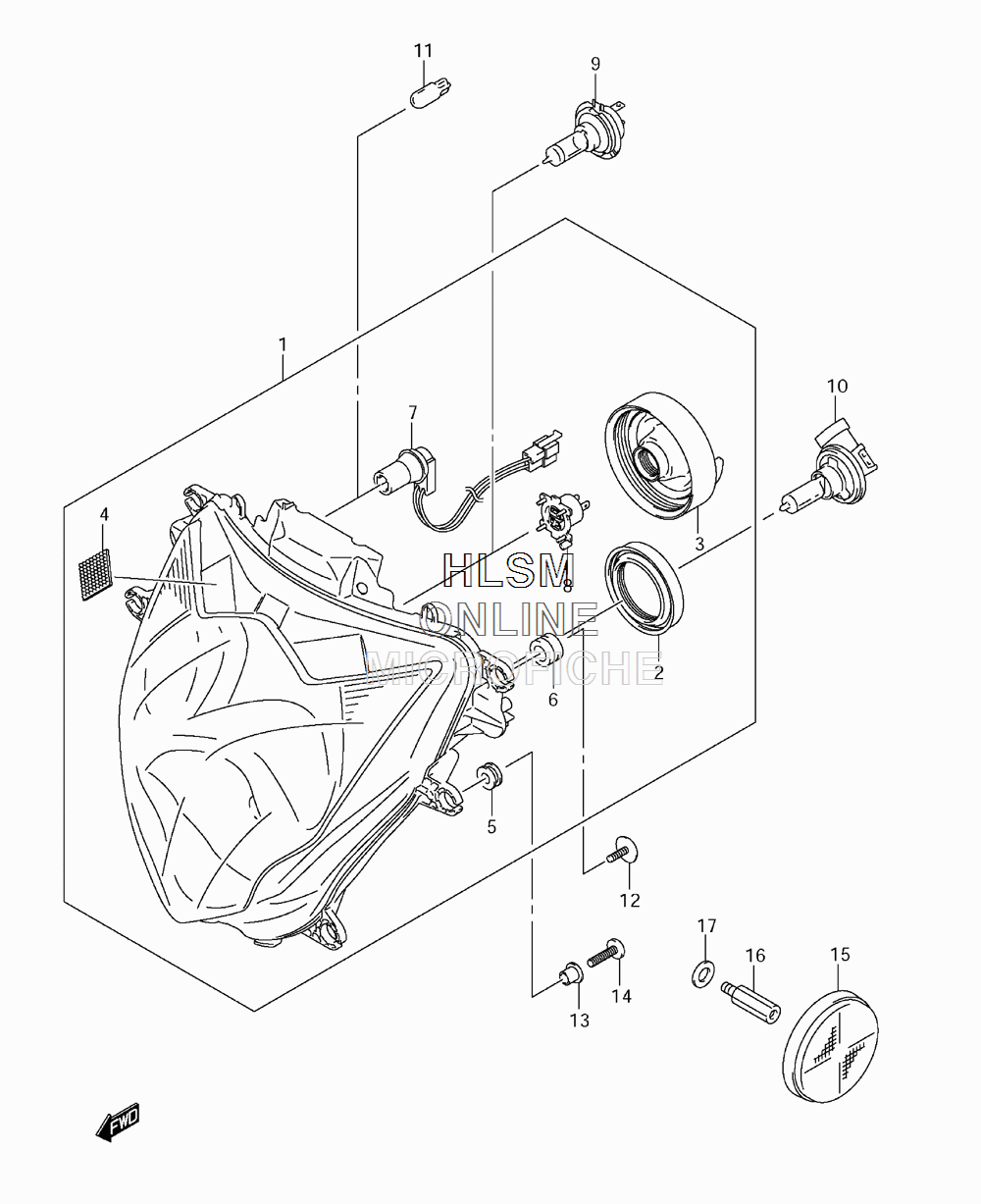

HEADLAMP для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
135100-14J31-999 HEADLAMP ASSYHEADLAMP ASSY
-
235179-01H00 ...COVER, SOCKET...COVER, SOCKET
-
335179-58J00 ...COVER, SOCKET...COVER, SOCKET
-
444572-02F01 ...FASTENER...FASTENER
-
509320-07014 ...CUSHION...CUSHION
-
609320-09039 ...CUSHION...CUSHION
-
736118-29G51 ...CORD ASSY...CORD ASSY
-
837175-14J00 ...ADAPTER ASSY...ADAPTER ASSY
-
909471-12222 BULB (12V65W)BULB (12V65W)
-
1009471-12188 BULB (12V55W)BULB (12V55W)
-
1109471-12216 BULB (12V5W)BULB (12V5W)
-
1209136-05062 SCREW (5X15)SCREW (5X15)
-
1309169-05018 WASHERWASHER
-
1402142-0520B SCREWSCREW
-
1535950-14A11 REFLEX REFLECTOR ASSY, FRONTREFLEX REFLECTOR ASSY, FRONT
-
1609119-06109 BOLTBOLT
-
1709160-08043 WASHER (8.5X18X1)WASHER (8.5X18X1)
