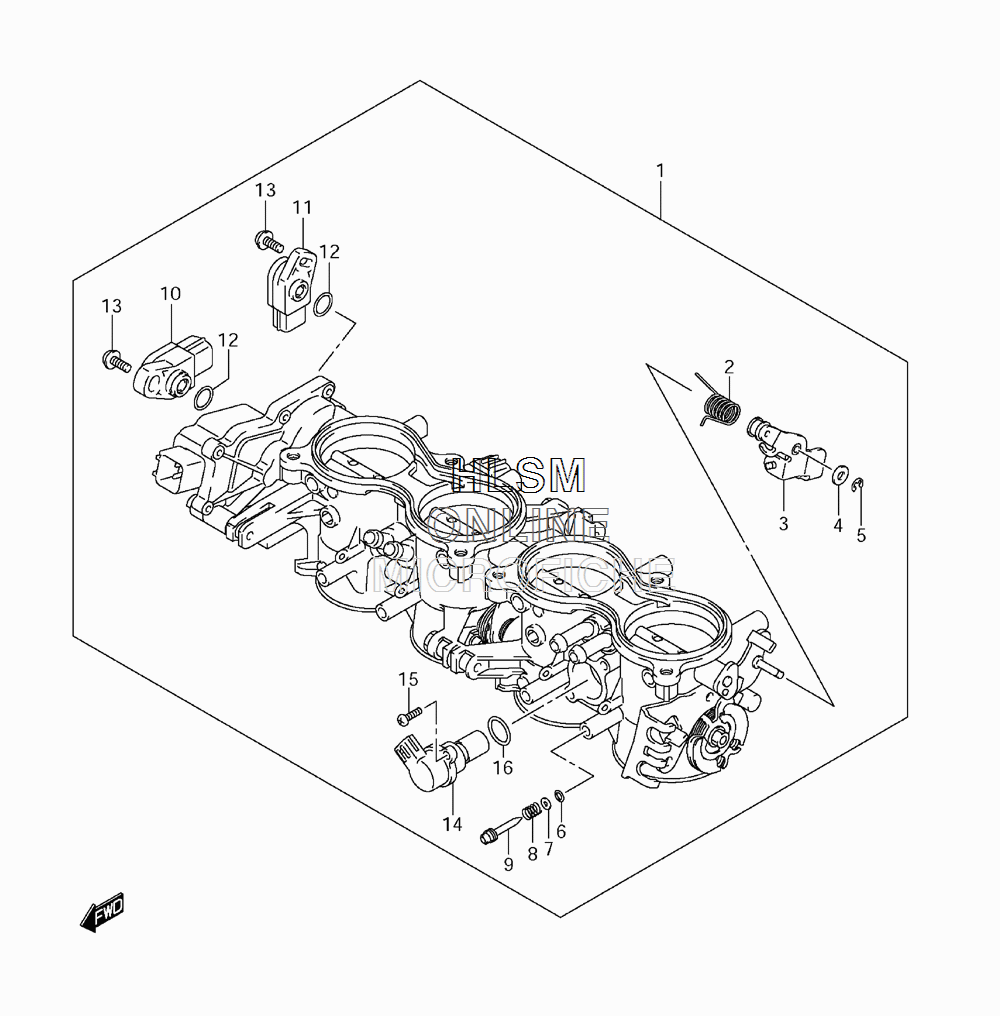

THROTTLE BODY (CALIF. ONLY) для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
113406-15J10 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213426-29G00 ...TORSION SPRING...TORSION SPRING
-
313420-37H00 ...LEVER ASSY...LEVER ASSY
-
413427-29G00 ...PACKING...PACKING
-
513424-29G00 ...E RING...E RING
-
613295-29900 ...O RING...O RING
-
713606-47A00 ...WASHER...WASHER
-
813268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
913269-33E00 ...SCREW...SCREW
-
1013580-14J00 ...SENSOR ASSY...SENSOR ASSY
-
1113580-14J10 ...SENSOR ASSY...SENSOR ASSY
-
1213575-29G00 ...O RING...O RING
-
1313605-02F00 ...SCREW...SCREW
-
1418117-14J01 ...MOTOR ASSY...MOTOR ASSY
-
1513605-37H00 ...SCREW...SCREW
-
1613679-37H00 ...O RING...O RING
