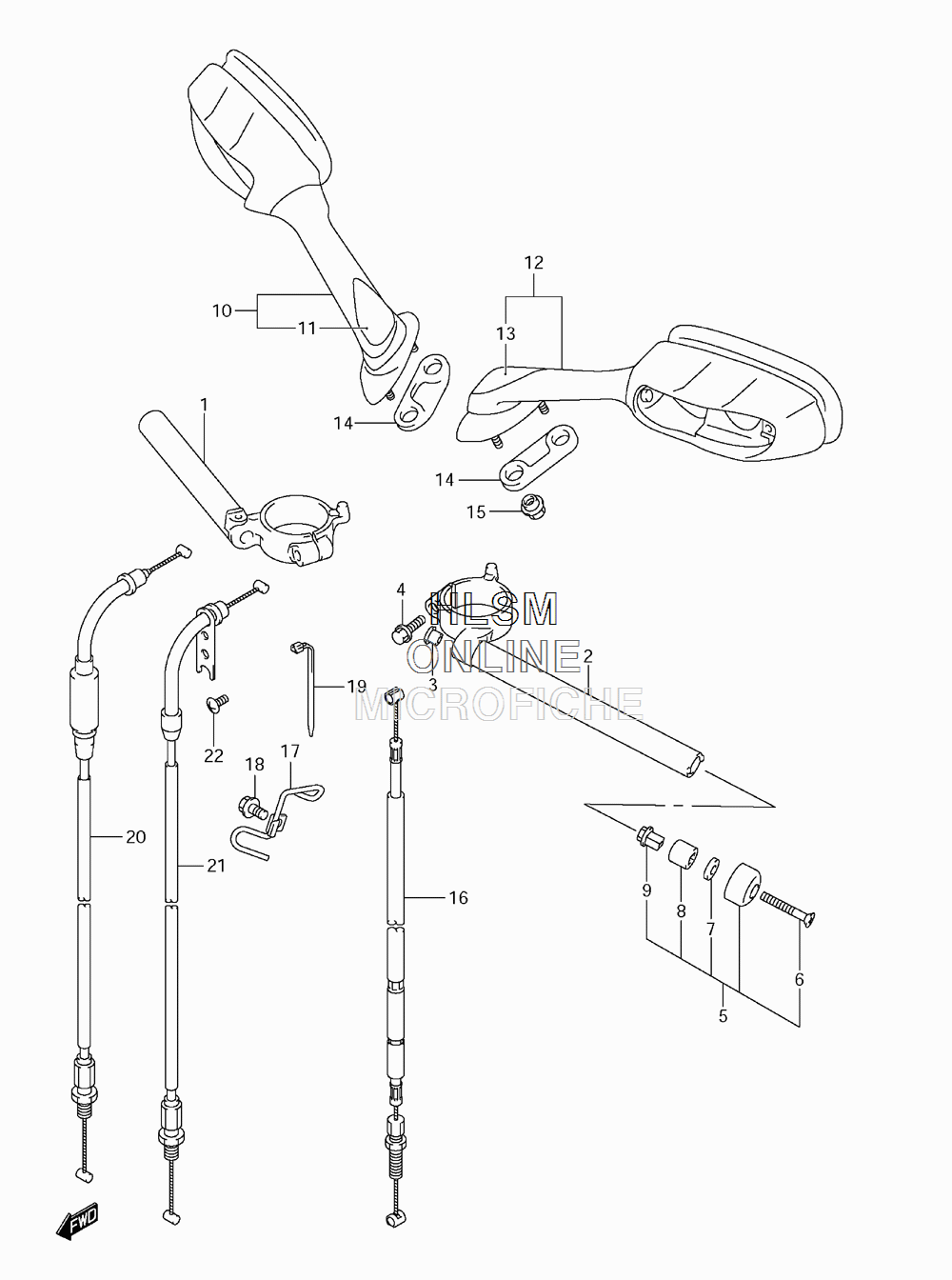

HANDLEBAR для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
156111-14J00 HANDLEBAR, RIGHTHANDLEBAR, RIGHT
-
256151-14J00 HANDLEBAR, LEFTHANDLEBAR, LEFT
-
356131-29G00 CAPCAP
-
409106-08185 BOLT (8X32)BOLT (8X32)
-
556200-41822 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
602122-0640B ...SCREW...SCREW
-
709160-06131 ...WASHER (6.5X16X4)...WASHER (6.5X16X4)
-
856272-10G00 ...EXPANDER...EXPANDER
-
956273-10G10 ...NUT...NUT
-
1056500-47H01 MIRROR ASSY, REAR VIEW RIGHTMIRROR ASSY, REAR VIEW RIGHT
-
1156515-47H01 ...CAP...CAP
-
1256600-47H01 MIRROR ASSY, REAR VIEW LEFTMIRROR ASSY, REAR VIEW LEFT
-
1356615-47H01 ...CAP...CAP
-
1494575-14J00 CUSHION, RIGHTCUSHION, RIGHT
-
1556619-41G01 NUTNUT
-
1658200-14J00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1758620-14J00 GUIDE, CABLEGUIDE, CABLE
-
1801547-0612A BOLTBOLT
-
1909407-17403 CLAMP (L:154)CLAMP (L:154)
-
2058300-14J00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
2158300-14J10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
2209125-05042 SCREW (5X10)SCREW (5X10)
