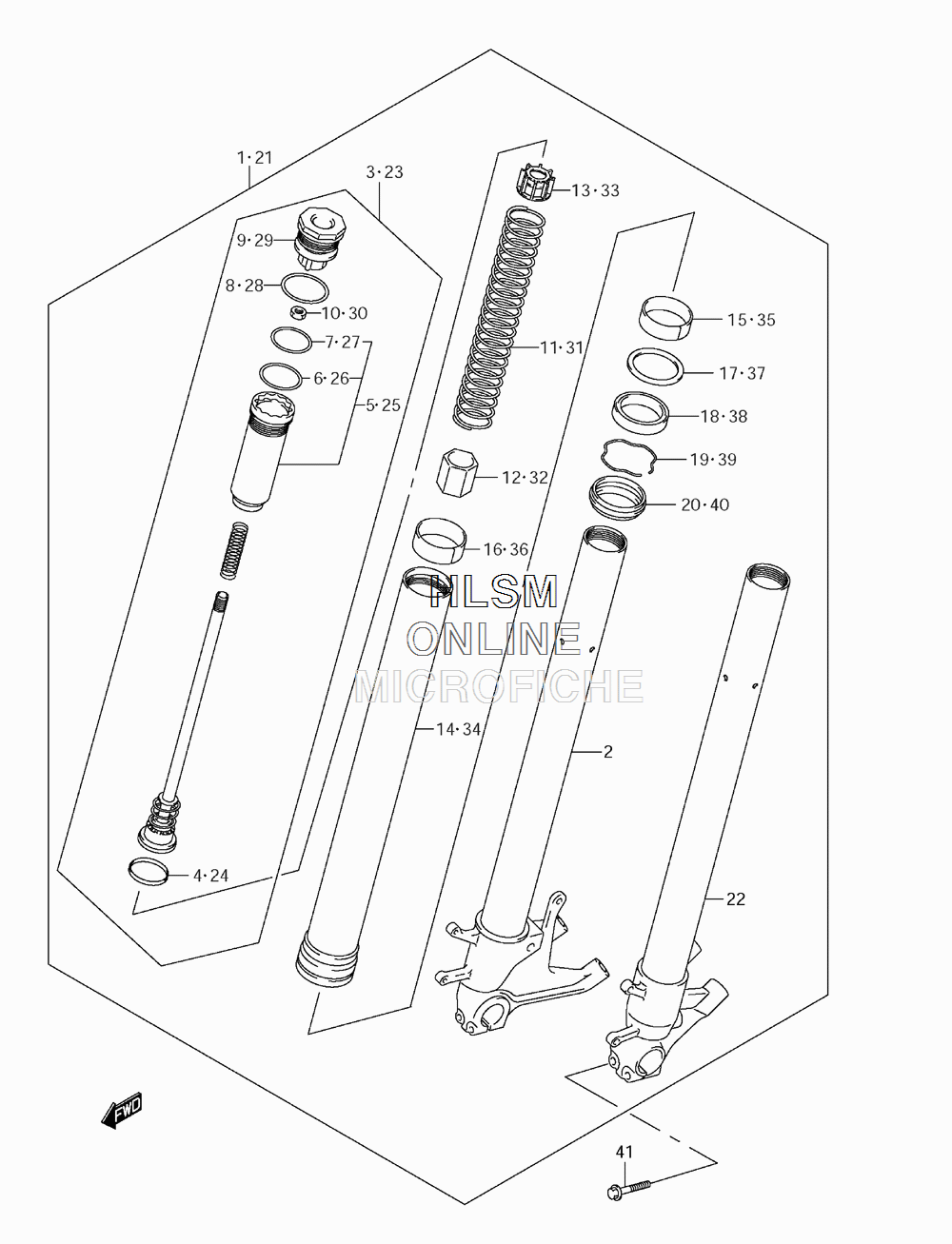

SUSPENSION - FRONT FORK для Suzuki GSX-R750 L2 - 2012 года выпуска
-
№АртикулНазвание
-
151103-15J10 DAMPER ASSY, FRONT FORK RIGHTDAMPER ASSY, FRONT FORK RIGHT
-
251110-14J00 ...TUBE, INNER RIGHT...TUBE, INNER RIGHT
-
352110-15J00 ...ROD, PISTON...ROD, PISTON
-
451118-14J00 ......RING, PISTON......RING, PISTON
-
551174-14J00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
651118-14J10 .........PISTON RING.........PISTON RING
-
751187-14J00 .........O RING.........O RING
-
851187-01H00 ......O RING......O RING
-
951189-14J00 ......BOLT......BOLT
-
1051827-29G00 ......NUT......NUT
-
1151171-15J10 ...SPRING...SPRING
-
1251176-14J10 ...COLLAR, SPRING...COLLAR, SPRING
-
1351175-14J00 ...COLLAR, SPRING...COLLAR, SPRING
-
1451131-15J00 ...TUBE, OUTER...TUBE, OUTER
-
1551152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
1651152-14J00 ...BUSH, SLIDE...BUSH, SLIDE
-
1751168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
1851153-01H10 ...SEAL, OIL...SEAL, OIL
-
1951556-38B00 ...RING, STOPPER...RING, STOPPER
-
2051173-01H00 ...SEAL, DUST...SEAL, DUST
-
2151104-15J10 DAMPER ASSY, FRONT FORK LEFTDAMPER ASSY, FRONT FORK LEFT
-
2251120-14J00 ...TUBE, INNER LEFT...TUBE, INNER LEFT
-
2352110-15J00 ...ROD, PISTON...ROD, PISTON
-
2451118-14J00 ......RING, PISTON......RING, PISTON
-
2551174-14J00 ......CASE, ROD GUIDE......CASE, ROD GUIDE
-
2651118-14J10 .........PISTON RING.........PISTON RING
-
2751187-14J00 .........O RING.........O RING
-
2851187-01H00 ......O RING......O RING
-
2951189-14J00 ......BOLT......BOLT
-
3051827-29G00 ......NUT......NUT
-
3151171-15J10 ...SPRING...SPRING
-
3251176-14J10 ...COLLAR, SPRING...COLLAR, SPRING
-
3351175-14J00 ...COLLAR, SPRING...COLLAR, SPRING
-
3451131-15J00 ...TUBE, OUTER...TUBE, OUTER
-
3551152-01H10 ...BUSH, GUIDE...BUSH, GUIDE
-
3651152-14J00 ...BUSH, SLIDE...BUSH, SLIDE
-
3751168-38B00 ...SPACER, SEAL...SPACER, SEAL
-
3851153-01H10 ...SEAL, OIL...SEAL, OIL
-
3951556-38B00 ...RING, STOPPER...RING, STOPPER
-
4051173-01H00 ...SEAL, DUST...SEAL, DUST
-
4151321-36F00 BOLTBOLT
