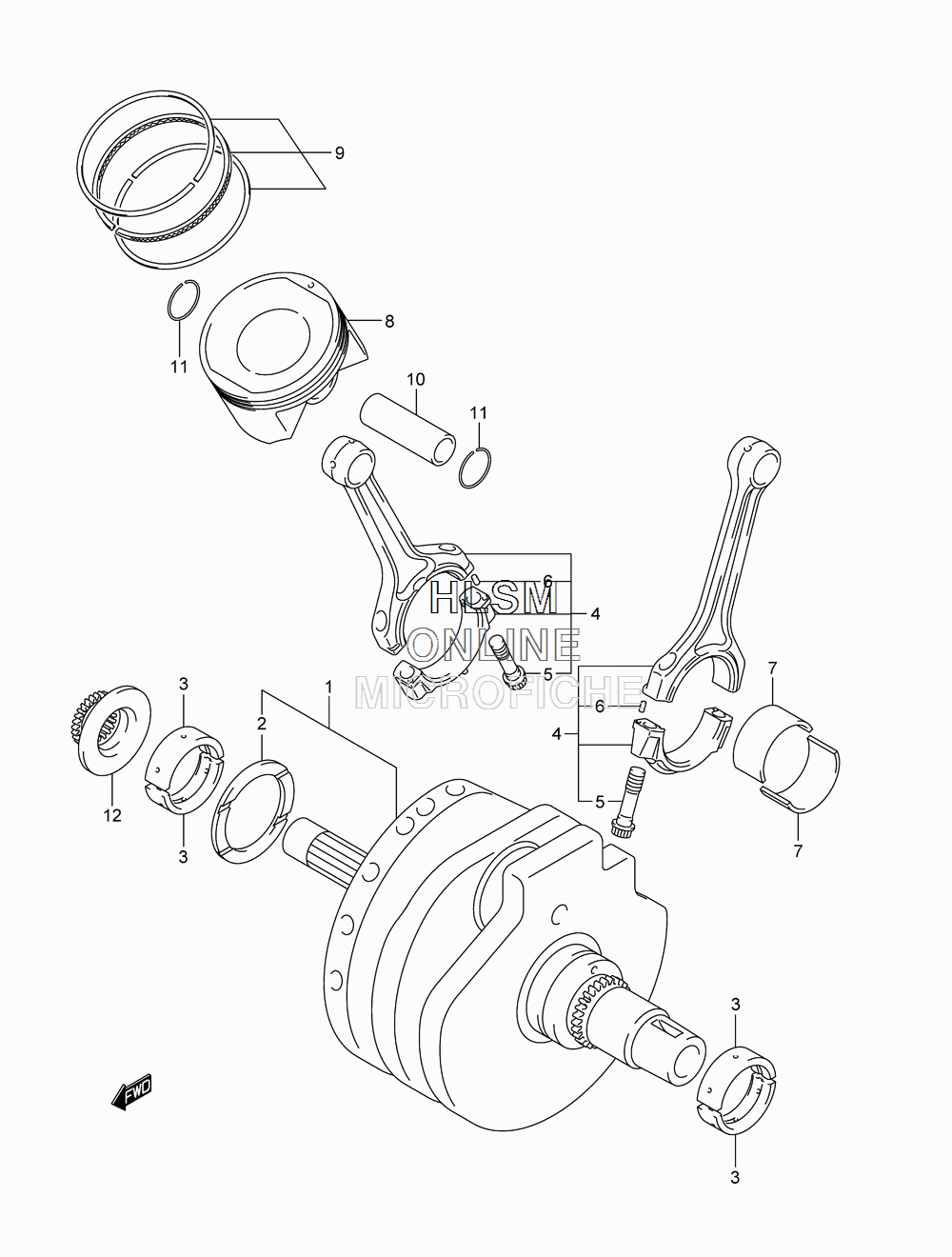

CRANKSHAFT W/ PISTON для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
112000-40840 CRANKSHAFT SETCRANKSHAFT SET
-
212228-40H00-0A0 ...BEARING, CRANK THRUST (T:1.925)...BEARING, CRANK THRUST (T:1.925)
-
212228-40H00-0B0 ...BEARING, CRANK THRUST (T:1.950)...BEARING, CRANK THRUST (T:1.950)
-
212228-40H00-0C0 ...BEARING, CRANK THRUST (T:1.975)...BEARING, CRANK THRUST (T:1.975)
-
212228-40H00-0D0 ...BEARING, CRANK THRUST (T:2.000)...BEARING, CRANK THRUST (T:2.000)
-
212228-40H00-0E0 ...BEARING, CRANK THRUST (T:2.025)...BEARING, CRANK THRUST (T:2.025)
-
212228-40H00-0F0 ...BEARING, CRANK THRUST (T:2.050)...BEARING, CRANK THRUST (T:2.050)
-
312229-40H00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
312229-40H00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
312229-40H00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
412160-40H00 CONNROD ASSYCONNROD ASSY
-
512163-06G00 ...BOLT...BOLT
-
604221-04089 ...PIN...PIN
-
712164-40H00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
712164-40H00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
712164-40H00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
712164-40H00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
812111-40H10-0F0 PISTONPISTON
-
912140-40H01 RING SET, PISTONRING SET, PISTON
-
1012151-02F00 PIN, PISTONPIN, PISTON
-
1109381-22002 CIRCLIPCIRCLIP
-
1212731-40H00 SPROCKET, CAM CHAIN DRIVE (NT:23)SPROCKET, CAM CHAIN DRIVE (NT:23)
