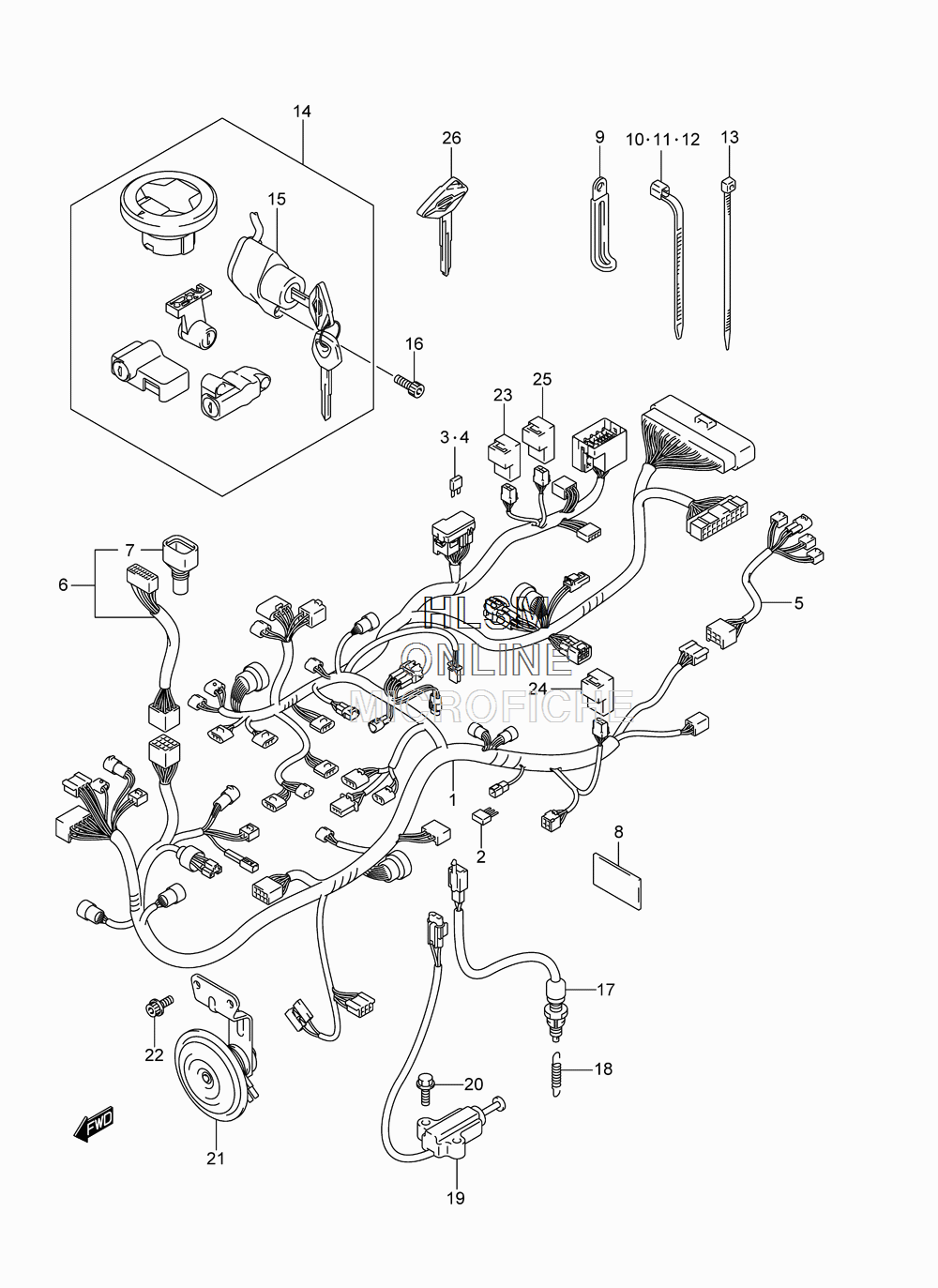

WIRING HARNESS для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
136610-40HG0 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A00 ...DIODE...DIODE
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409481-15501 ...FUSE (15A)...FUSE (15A)
-
536858-40H00 WIRE, REAR CORDWIRE, REAR CORD
-
636859-40H00 WIRE, METER LEADWIRE, METER LEAD
-
736618-33E00 ...BOOT...BOOT
-
833652-26E00 PROTECTOR (20X90X1)PROTECTOR (20X90X1)
-
909404-06429 CLAMP (L:45)CLAMP (L:45)
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109407-19401 CLAMP (L:190)CLAMP (L:190)
-
1209407-10403 CLAMP (L:95)CLAMP (L:95)
-
1309407-14407 CLAMP (L:145)CLAMP (L:145)
-
1437000-40831 LOCK SETLOCK SET
-
1537110-40H31 ...SWITCH ASSY, INGITION...SWITCH ASSY, INGITION
-
1607130-0616A BOLTBOLT
-
1737740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1809443-06077 SPRINGSPRING
-
1937840-22H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2001547-0625A BOLTBOLT
-
2138500-40H00 HORN ASSYHORN ASSY
-
2207120-0612B BOLTBOLT
-
2338740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2438740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2538740-24A00 RELAY ASSY, HEADLAMPRELAY ASSY, HEADLAMP
-
2637146-10F00 KEY, BLANK (BOULEVARD)KEY, BLANK (BOULEVARD)
