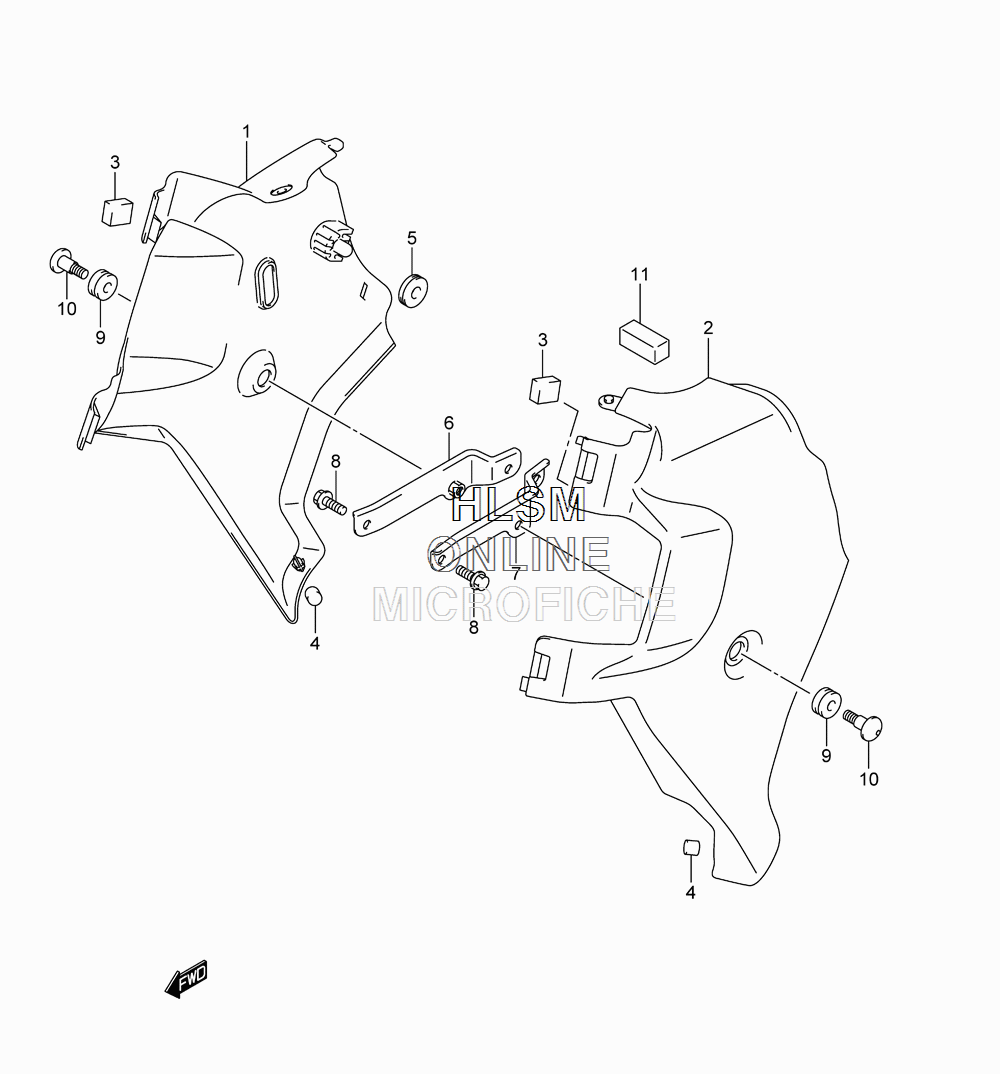

FRAME HEAD COVER для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
147351-40H00-019 COVER, FRAME HEAD RIGHT (019 - BLACK)COVER, FRAME HEAD RIGHT (019 - BLACK)
-
247361-40H00-019 COVER, FRAME HEAD LEFT (019 - BLACK)COVER, FRAME HEAD LEFT (019 - BLACK)
-
317798-39G00 CUSHIONCUSHION
-
409250-12013 CAP (OD:12.3)CAP (OD:12.3)
-
509320-08018 CUSHIONCUSHION
-
647370-40H00 PLATE, HEAD COVER RIGHTPLATE, HEAD COVER RIGHT
-
747380-40H00 PLATE, HEAD COVER LEFTPLATE, HEAD COVER LEFT
-
801547-0616A BOLTBOLT
-
909320-09016 CUSHIONCUSHION
-
1009139-06179 BOLT (6X20)BOLT (6X20)
-
1147191-22D00 CUSHION, UPPERCUSHION, UPPER
