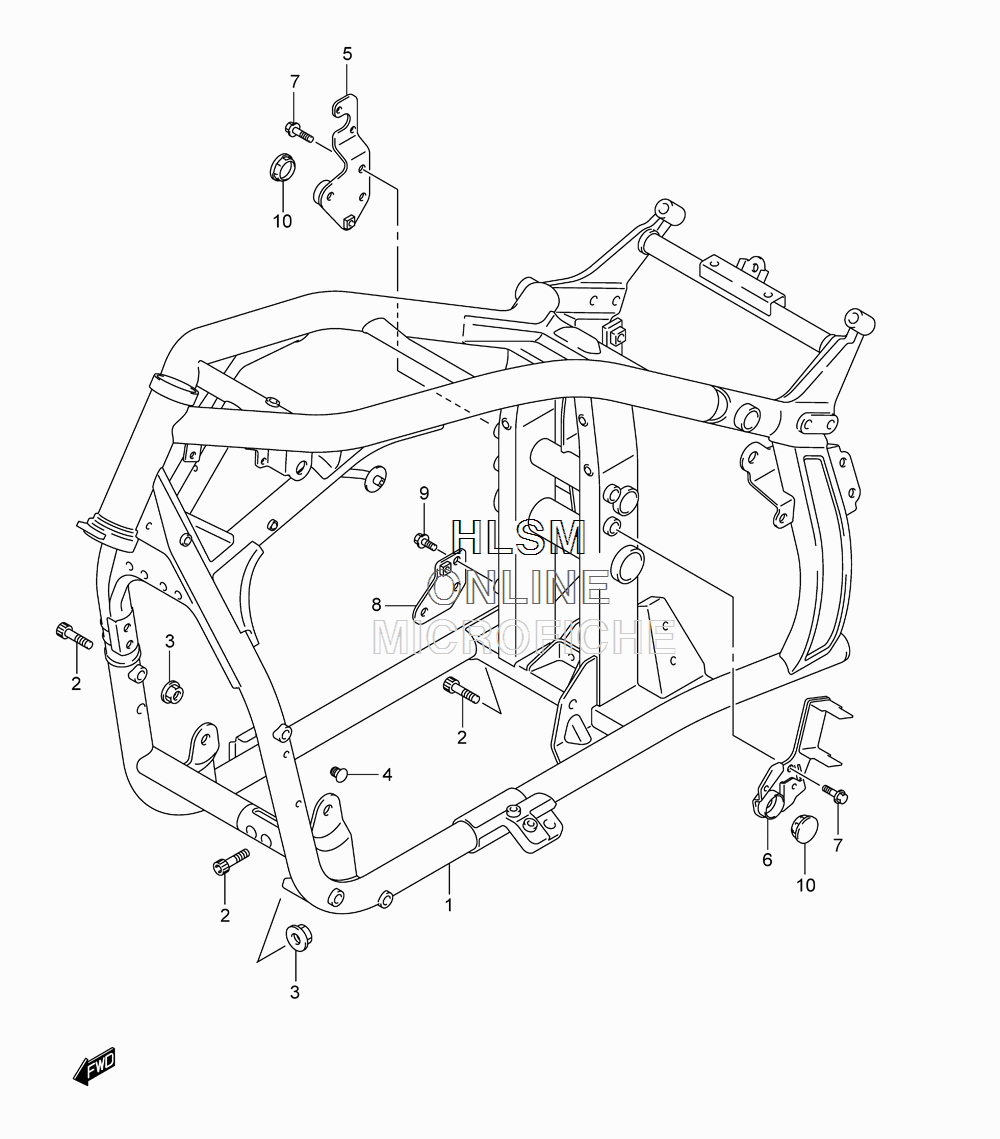

FRAME для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
141100-40H20-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
207130-1035B BOLTBOLT
-
308319-3110B NUTNUT
-
409250-09001 CAP (OD:14)CAP (OD:14)
-
541930-40H10 PLATE, MOUNT REAR RIGHTPLATE, MOUNT REAR RIGHT
-
641940-40H10 PLATE, MOUNT REAR LEFTPLATE, MOUNT REAR LEFT
-
701550-0820A BOLTBOLT
-
841951-40H00 PLATE, MOUNT REAR LOWER RIGHTPLATE, MOUNT REAR LOWER RIGHT
-
901550-0820A BOLTBOLT
-
1043585-48G10 CAPCAP
