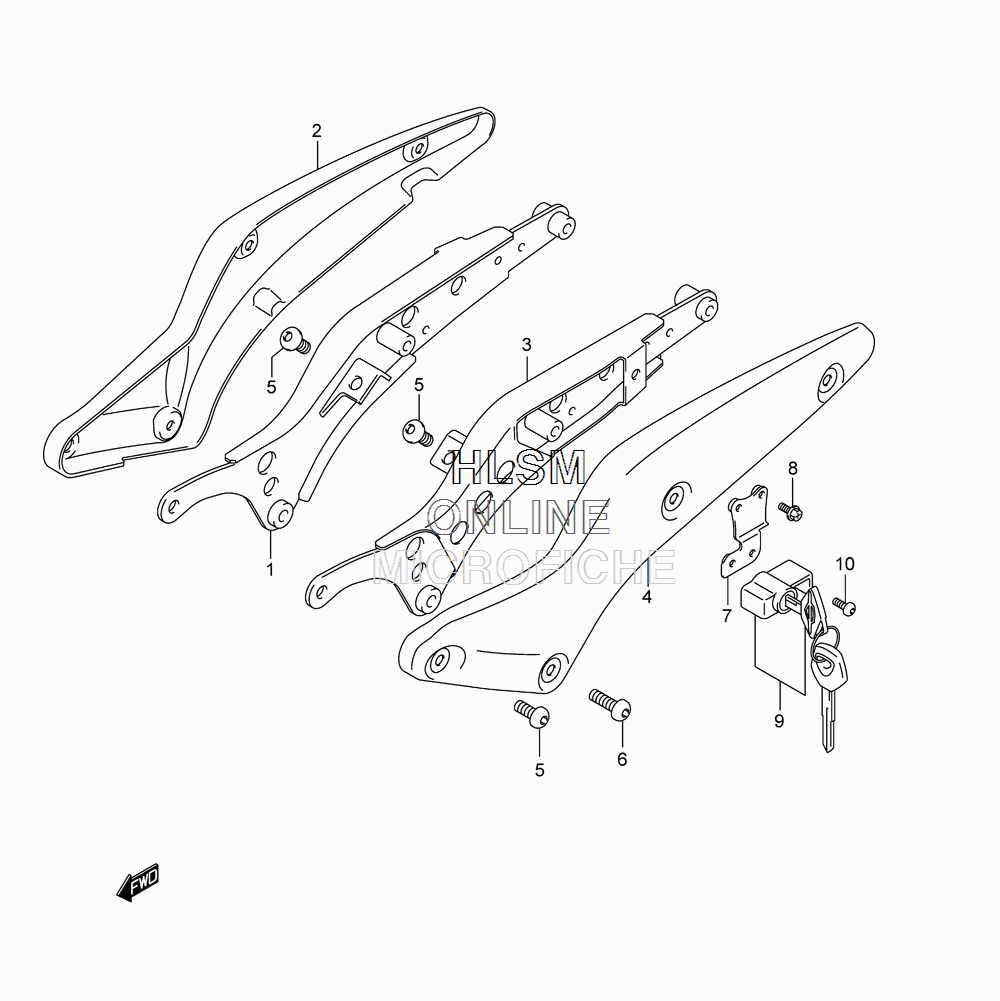

FRAME - REAR для Suzuki VZ1500 L3 - 2013 года выпуска
-
№АртикулНазвание
-
142650-40H01 FRAME, REAR RIGHTFRAME, REAR RIGHT
-
242651-40H00 PLATE, REAR FRAME RIGHTPLATE, REAR FRAME RIGHT
-
342660-40H01 FRAME, REAR LEFTFRAME, REAR LEFT
-
442661-40H00 PLATE, REAR FRAME LEFTPLATE, REAR FRAME LEFT
-
509139-10003 BOLT (10X25)BOLT (10X25)
-
609139-10005 BOLT (10X35)BOLT (10X35)
-
795710-40H00 BRACKET, LOCKBRACKET, LOCK
-
802162-0612A SCREWSCREW
-
995700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
1009139-06089 SCREW (6X14)SCREW (6X14)
