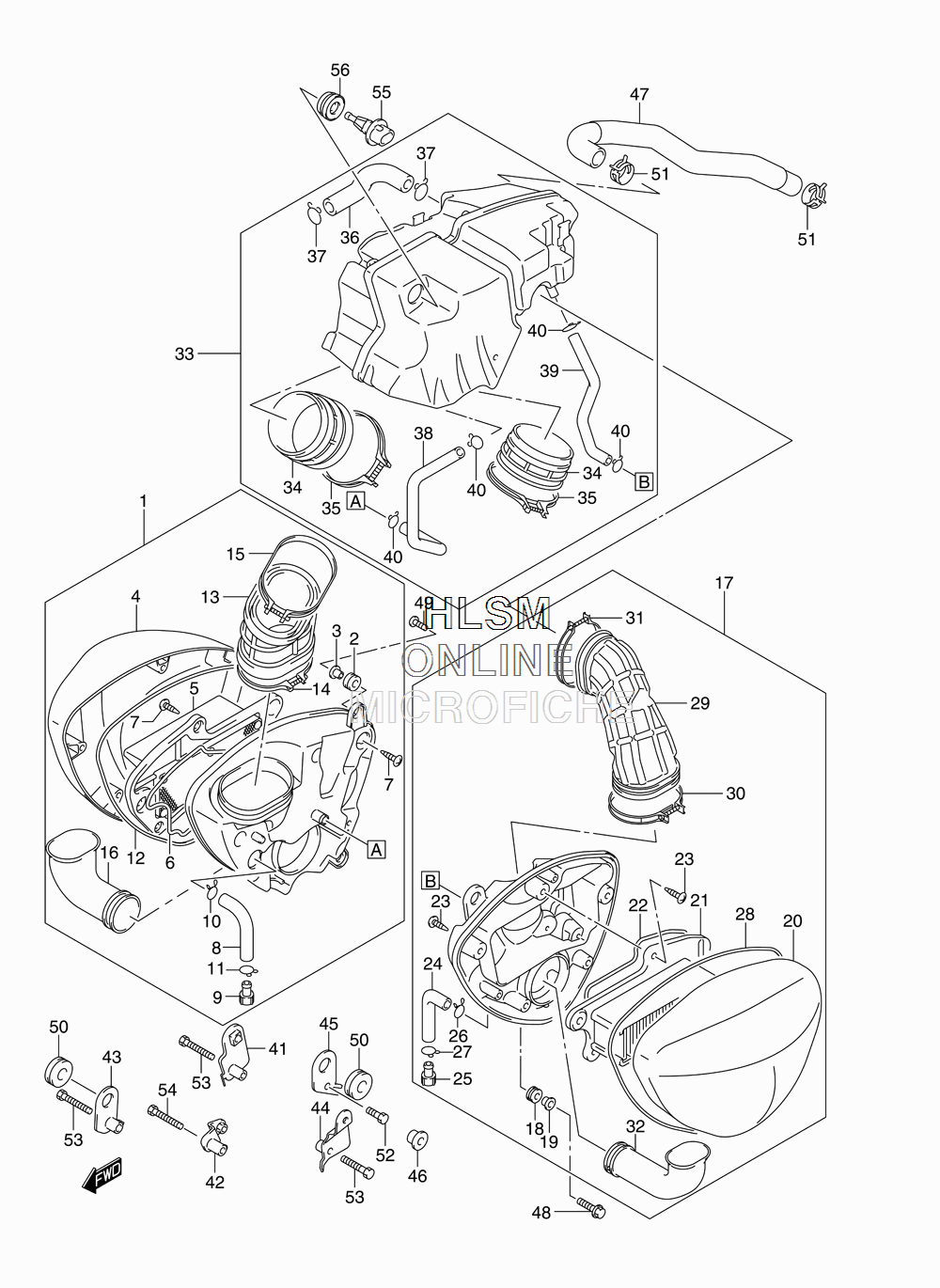

AIR CLEANER для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
113701-48G20 CLEANER, AIR RIGHT (INCL. 2-16)CLEANER, AIR RIGHT (INCL. 2-16)
-
209320-09016 CUSHIONCUSHION
-
313812-29C50 COLLARCOLLAR
-
413741-48G00 CAPCAP
-
513780-48G20 FILTERFILTER
-
613747-48G00 GASKETGASKET
-
703212-0516B SCREWSCREW
-
813873-48G00 TUBE, DRAINTUBE, DRAIN
-
913877-00190 STOPPERSTOPPER
-
1009401-14301 CLIPCLIP
-
1109401-15101 CLIPCLIP
-
1213746-48G00 GASKETGASKET
-
1313739-48G00 TUBE, JOINTTUBE, JOINT
-
1413826-48G00 CLAMPCLAMP
-
1513827-48G00 CLAMPCLAMP
-
1613891-48G20 TLUBE, INLETTLUBE, INLET
-
1713702-48G20 CLEANER, AIR LEFT (INCL. 18-32)CLEANER, AIR LEFT (INCL. 18-32)
-
1809320-09016 CUSHIONCUSHION
-
1913812-29C50 COLLARCOLLAR
-
2013741-48G00 CAPCAP
-
2113780-48G20 FILTERFILTER
-
2213747-48G00 GASKETGASKET
-
2303212-0516B SCREWSCREW
-
2413873-48G00 TUBE, DRAINTUBE, DRAIN
-
2513877-00190 STOPPERSTOPPER
-
2609401-14301 CLIPCLIP
-
2709401-15101 CLIPCLIP
-
2813746-48G00 GASKETGASKET
-
2913739-48G10 TUBE, JOINTTUBE, JOINT
-
3013826-48G00 CLAMPCLAMP
-
3113827-48G00 CLAMPCLAMP
-
3213891-48G20 TUBE, INLETTUBE, INLET
-
3313710-48G30 CHAMBER, AIR CLEANER (INCL. 34-40)CHAMBER, AIR CLEANER (INCL. 34-40)
-
3413881-48G00 TUBE, OUTLETTUBE, OUTLET
-
3513826-22H00 CLAMPCLAMP
-
3613865-48G00 HOSEHOSE
-
3709401-15101 CLIPCLIP
-
3813871-48G00 TUBE, DRAINTUBE, DRAIN
-
3913871-48G10 TUBE, DRAINTUBE, DRAIN
-
4009401-13409 CLIPCLIP
-
4113760-48G00 BRACKET, AIR CLEANER NO. 1BRACKET, AIR CLEANER NO. 1
-
4213760-48G10 BRACKET, AIR CLEANER NO. 2BRACKET, AIR CLEANER NO. 2
-
4313760-48G20 BRACKET, AIR CLEANER NO. 3BRACKET, AIR CLEANER NO. 3
-
4413770-48G00 BRACKET, AIR CLEANER NO. 4BRACKET, AIR CLEANER NO. 4
-
4513770-48G10 BRACKET, AIR CLEANER NO. 5BRACKET, AIR CLEANER NO. 5
-
4613838-48G10 SPACER, LEFTSPACER, LEFT
-
4713850-48G10 TUBE, BREATHERTUBE, BREATHER
-
4809139-06154 BOLT (6X35)BOLT (6X35)
-
4909139-06155 BOLT (6X20)BOLT (6X20)
-
5009320-08028 CUSHIONCUSHION
-
5109401-20405 CLIPCLIP
-
5201500-0612A BOLTBOLT
-
5301500-0625A BOLTBOLT
-
5409139-06154 BOLT (6X35)BOLT (6X35)
-
5513650-52G00 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
5613655-77E00 GROMMETGROMMET
