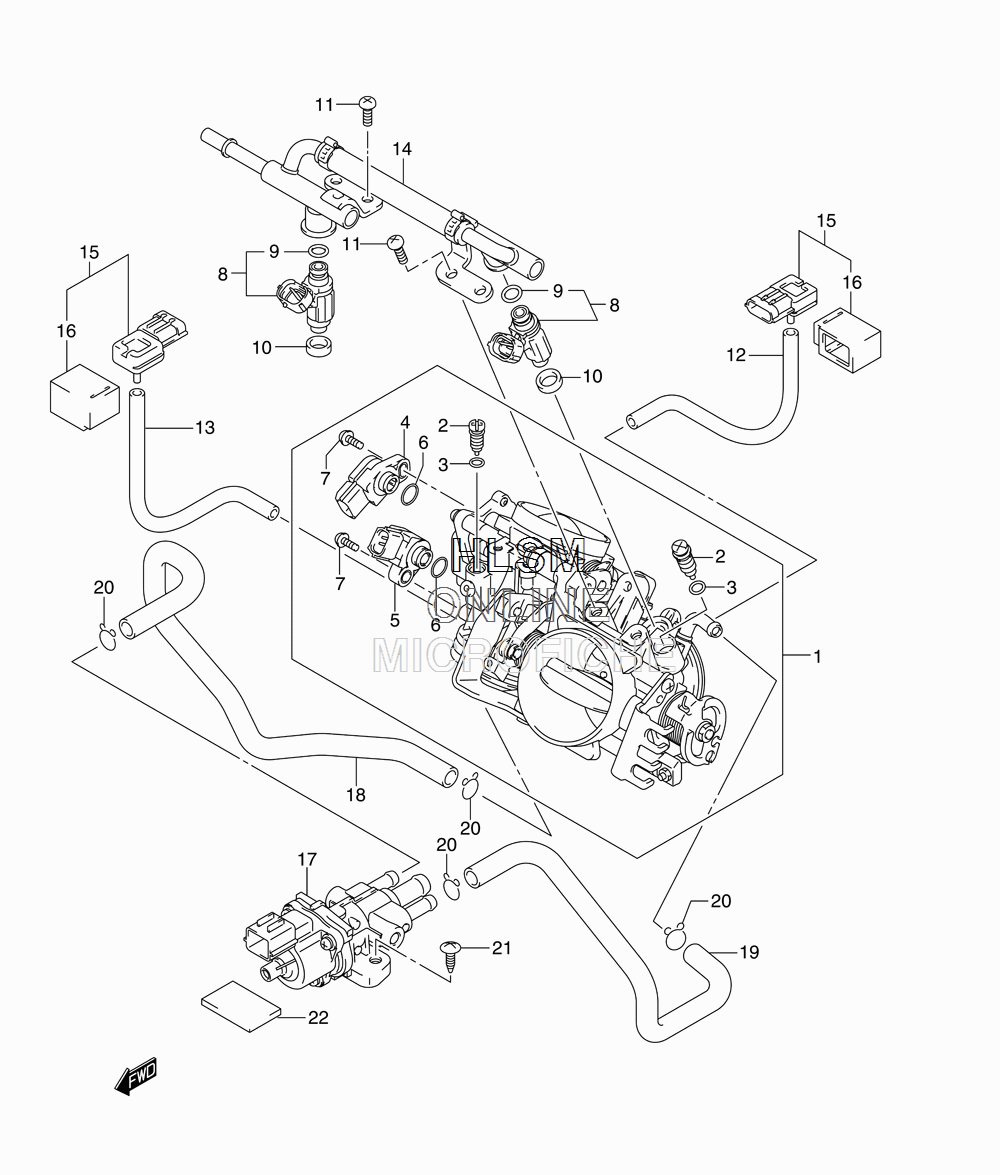

CARBURETOR - THROTTLE BODY для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
113405-48G20 BODY, THROTTLE (INCL. 2-7)BODY, THROTTLE (INCL. 2-7)
-
213269-48G00 ADJUSTERADJUSTER
-
313521-29FA0 O RINGO RING
-
413580-29G00 SENSOR ASSYSENSOR ASSY
-
513580-48G00 SENSOR ASSYSENSOR ASSY
-
613575-29G00 O RINGO RING
-
713605-02F00 SCREWSCREW
-
815710-48G00 INJECTOR ASSY (INCL. 9)INJECTOR ASSY (INCL. 9)
-
915717-58B00 O RINGO RING
-
1015722-29G00 SEALSEAL
-
1113602-06148 SCREWSCREW
-
1213683-48G00 HOSEHOSE
-
1313683-48G10 HOSEHOSE
-
1415730-48G01 PIPE ASSY, DELIVERYPIPE ASSY, DELIVERY
-
1515630-29G10 SENSOR, PRESSURE (INCL. 16)SENSOR, PRESSURE (INCL. 16)
-
1615625-29G00 COVERCOVER
-
1718117-48G00 VALVE, ISCVALVE, ISC
-
1813697-48G00 HOSE, RIGHTHOSE, RIGHT
-
1913698-48G00 HOSE, LEFTHOSE, LEFT
-
2009401-13102 CLIPCLIP
-
2103111-0625A SCREWSCREW
-
2244612-13600 CUSHIONCUSHION
