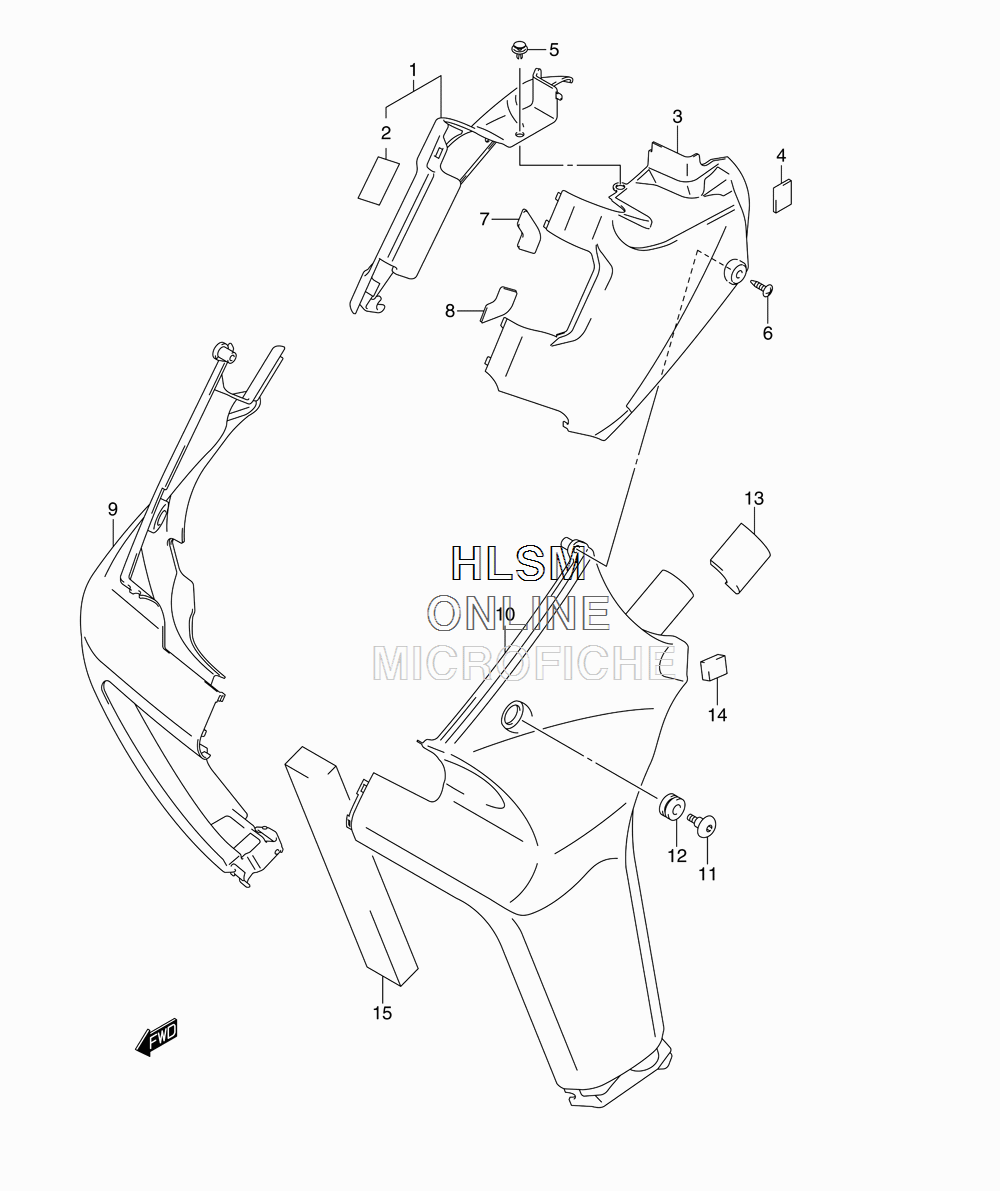

FRAME HEAD COVER для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
147350-48G50-YVZ COVER, FRAME HEAD RIGHT (YVZ - PEARL MIRA RED)COVER, FRAME HEAD RIGHT (YVZ - PEARL MIRA RED)
-
289445-61J00 TAPE, FRAME HEAD COVERTAPE, FRAME HEAD COVER
-
347361-48G50-YVZ COVER, FRAME HEAD LEFT (YVZ - PEARL MIRA RED)COVER, FRAME HEAD LEFT (YVZ - PEARL MIRA RED)
-
417798-39G00 CUSHIONCUSHION
-
509409-06328 CLIPCLIP
-
603541-0516A SCREWSCREW
-
747352-48G00 TAPE, UPPERTAPE, UPPER
-
847353-48G01 TAPE, LOWERTAPE, LOWER
-
947551-48G50-YVZ COVER, FRAME BODY RIGHT (YVZ - PEARL MIRA RED)COVER, FRAME BODY RIGHT (YVZ - PEARL MIRA RED)
-
1047561-48G50-YVZ COVER, FRAME BODY LEFT (YVZ - PEARL MIRA RED)COVER, FRAME BODY LEFT (YVZ - PEARL MIRA RED)
-
1109139-06126 SCREW (6X20)SCREW (6X20)
-
1209320-09016 CUSHIONCUSHION
-
1363191-25C00 CUSHION, UPPERCUSHION, UPPER
-
1417798-39G00 CUSHION, CENTERCUSHION, CENTER
-
1547552-48G00 CUSHION, LOWER RIGHTCUSHION, LOWER RIGHT
