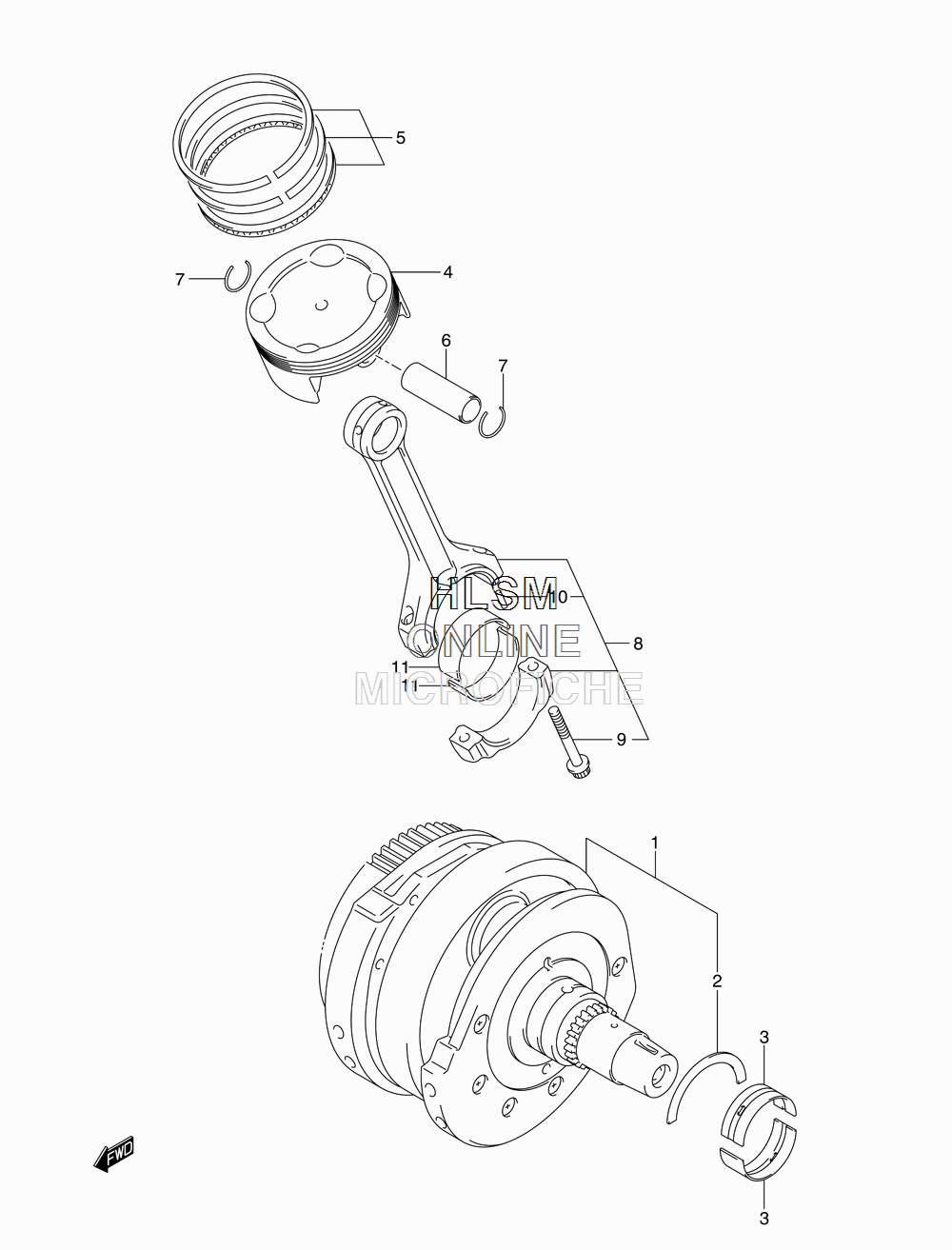

CRANKSHAFT W/ PISTON для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
112000-48831 CRANKSHAFT SET (INCL. 2)CRANKSHAFT SET (INCL. 2)
-
212228-48G00-0A0 WASHER, CRANK THRUST (RED)WASHER, CRANK THRUST (RED)
-
212228-48G00-0B0 WASHER, CRANK THRUST (BLACK)WASHER, CRANK THRUST (BLACK)
-
212228-48G00-0C0 WASHER, CRANK THRUST (BLUE)WASHER, CRANK THRUST (BLUE)
-
212228-48G00-0D0 WASHER, CRANK THRUST (GREEN)WASHER, CRANK THRUST (GREEN)
-
212228-48G00-0E0 WASHER, CRANK THRUST (YELLOW)WASHER, CRANK THRUST (YELLOW)
-
212228-48G00-0F0 WASHER, CRANK THRUST (WHITE)WASHER, CRANK THRUST (WHITE)
-
312229-48G10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
312229-48G10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
312229-48G10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
312229-48G10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
312229-48G10-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
412111-48G00-0F0 PISTONPISTON
-
512140-48G00 RING SET, PISTONRING SET, PISTON
-
612151-48G00 PIN, PISTONPIN, PISTON
-
709381-23003 CIRCLIPCIRCLIP
-
812160-48G00 ROD ASSY, CONNECTING (INCL. 9, 10)ROD ASSY, CONNECTING (INCL. 9, 10)
-
912163-06G00 BOLTBOLT
-
1004221-04089 PIN 4X8PIN 4X8
-
1112164-48G00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
1112164-48G00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
1112164-48G00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
1112164-48G00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
