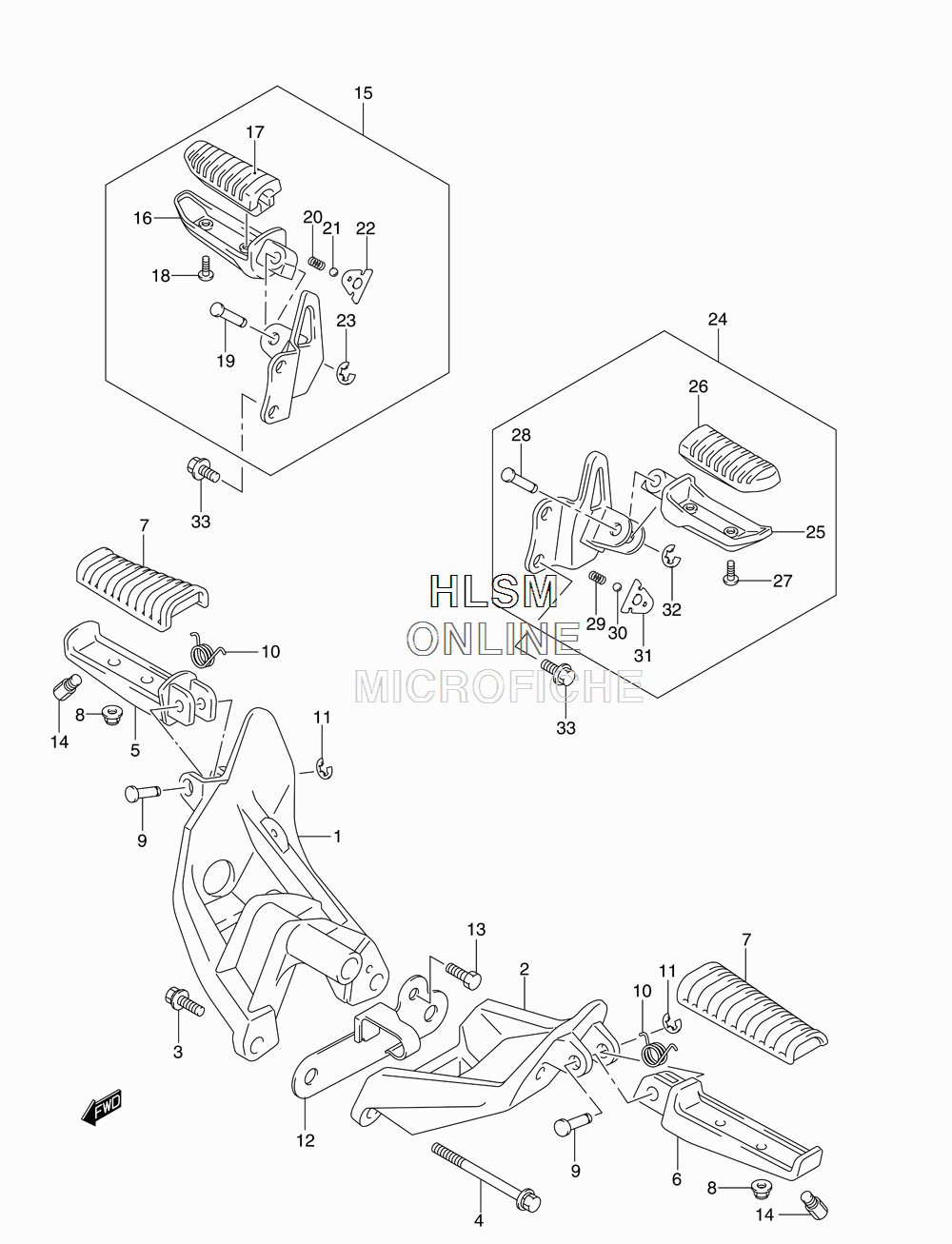

FOOTREST для Suzuki VZR1800Z L3 - 2013 года выпуска
-
№АртикулНазвание
-
143511-48G10 BRACKET, FRONT FOOTREST RIGHTBRACKET, FRONT FOOTREST RIGHT
-
243521-48G01 BRACKET, FRONT FOOTREST LEFTBRACKET, FRONT FOOTREST LEFT
-
309103-10268 BOLT (10X28)BOLT (10X28)
-
409103-10337 BOLT (10X85) LEFTBOLT (10X85) LEFT
-
543531-48G00 BAR, FRONT FOOTREST RIGHTBAR, FRONT FOOTREST RIGHT
-
643541-48G00 BAR, FRONT FOOTREST LEFTBAR, FRONT FOOTREST LEFT
-
743550-48G00 RUBBERRUBBER
-
808319-2106A NUTNUT
-
909208-08019 PINPIN
-
1009448-14047 SPRINGSPRING
-
1108332-1106A E RINGE RING
-
1243560-48G00 PLATE, FOOTREST BRACKETPLATE, FOOTREST BRACKET
-
1301500-0612A BOLTBOLT
-
1443576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1543600-48G00 FOOTREST, PILLION RIGHT (INCL. 16-23)FOOTREST, PILLION RIGHT (INCL. 16-23)
-
1643611-44G00 BAR, RIGHTBAR, RIGHT
-
1743550-44G00 RUBBERRUBBER
-
1802142-05127 SCREWSCREW
-
1909208-08017 PINPIN
-
2009440-05005 SPRINGSPRING
-
2106111-07004 BALLBALL
-
2243816-44G00 PLATE, PILLIONPLATE, PILLION
-
2308332-1106A E RINGE RING
-
2443700-48G00 FOOTREST, PILLION LEFT (INCL. 25-32)FOOTREST, PILLION LEFT (INCL. 25-32)
-
2543621-44G00 BAR, LEFTBAR, LEFT
-
2643550-44G00 RUBBERRUBBER
-
2702142-05127 SCREWSCREW
-
2809208-08017 PINPIN
-
2909440-05005 SPRINGSPRING
-
3006111-07004 BALLBALL
-
3143816-44G00 PLATE, PILLIONPLATE, PILLION
-
3208332-1106A E RINGE RING
-
3309103-08412 BOLT (8X16)BOLT (8X16)
