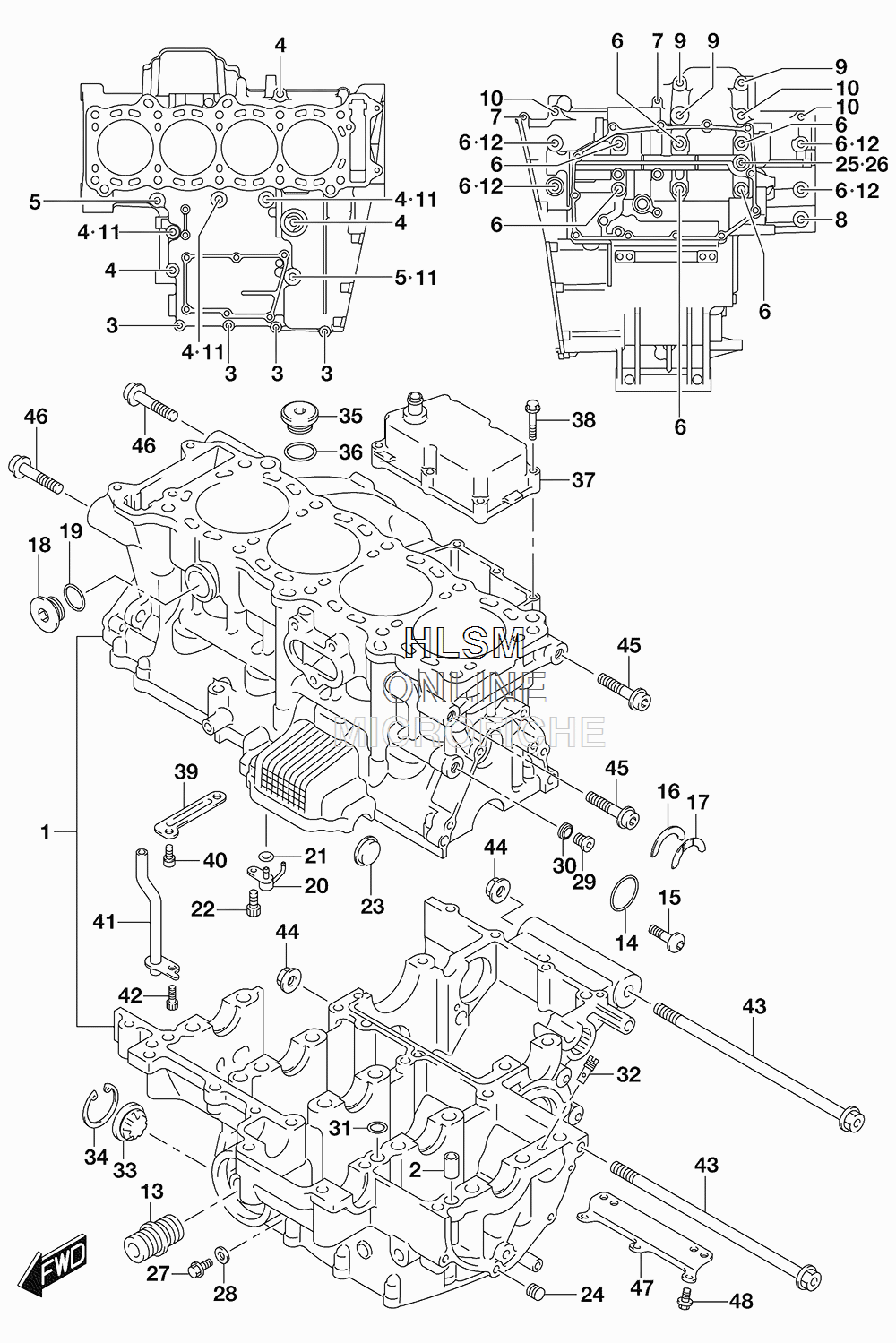

CRANKCASE для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
111300-47890 CRANKCASE SETCRANKCASE SET
-
211319-33E50 ...PIN...PIN
-
301547-0635A ...BOLT...BOLT
-
401550-0855A ...BOLT...BOLT
-
501550-0865A ...BOLT...BOLT
-
609103-09012 ...BOLT (9X95)...BOLT (9X95)
-
701547-0645A ...BOLT...BOLT
-
801550-0835A ...BOLT...BOLT
-
901550-0855A ...BOLT...BOLT
-
1001550-0865A ...BOLT...BOLT
-
1109168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1209168-10031 ...GASKET (10.2X20X2.3)...GASKET (10.2X20X2.3)
-
1316591-06B01 ...UNION, OIL FILTER STAND...UNION, OIL FILTER STAND
-
1409280-00045 ...O RING (D:3,ID:102)...O RING (D:3,ID:102)
-
1509139-06151 ...BOLT (6X20)...BOLT (6X20)
-
1612228-48B00-0E0 ...BEARING, THRUST RIGHT HAND (GREEN)...BEARING, THRUST RIGHT HAND (GREEN)
-
1712228-48B00-0B0 ...BEARING, THRUST LEFT HAND (BROWN)...BEARING, THRUST LEFT HAND (BROWN)
-
1712228-48B00-0C0 ...BEARING, THRUST LEFT HAND (RED)...BEARING, THRUST LEFT HAND (RED)
-
1712228-48B00-0D0 ...BEARING, THRUST LEFT HAND (YELLOW)...BEARING, THRUST LEFT HAND (YELLOW)
-
1712228-48B00-0E0 ...BEARING, THRUST LEFT HAND (GREEN)...BEARING, THRUST LEFT HAND (GREEN)
-
1712228-48B00-0F0 ...BEARING, THRUST LEFT HAND (BLUE)...BEARING, THRUST LEFT HAND (BLUE)
-
1712228-48B00-0G0 ...BEARING, THRUST LEFT HAND (ORANGE)...BEARING, THRUST LEFT HAND (ORANGE)
-
1712228-48B00-0H0 ...BEARING, THRUST LEFT HAND (BLACK)...BEARING, THRUST LEFT HAND (BLACK)
-
1811318-35F00 ...PLUG, WATER JACKET...PLUG, WATER JACKET
-
1909280-20002 ...O RING (D:3.1,ID:19.4)...O RING (D:3.1,ID:19.4)
-
2011390-21H00 JET, PISTON COOLINGJET, PISTON COOLING
-
2109280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2209106-06075 BOLT (6X12)BOLT (6X12)
-
2309241-23005 PLUGPLUG
-
2409246-05006 PLUGPLUG
-
2509248-12004 PLUG (L:12)PLUG (L:12)
-
2609168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2701547-0612A BOLTBOLT
-
2809168-06018 GASKET (6.2X13X1.2)GASKET (6.2X13X1.2)
-
2909248-10010 PLUG (10X10)PLUG (10X10)
-
3009168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
3109280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
3209493-28012 JET, 140JET, 140
-
3311971-33210 LENS, OIL LEVELLENS, OIL LEVEL
-
3408331-4130A CIRCLIPCIRCLIP
-
3509259-26011 PLUG (26X9)PLUG (26X9)
-
3609280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
3711380-47H00 COVER, BREATHERCOVER, BREATHER
-
3801547-0630A BOLTBOLT
-
3911382-47H00 PLATE, BREATHER OIL RETURNPLATE, BREATHER OIL RETURN
-
4009106-06075 BOLT (6X12)BOLT (6X12)
-
4111383-47H00 PIPE, BREATHER OIL RETURNPIPE, BREATHER OIL RETURN
-
4207130-0612A BOLTBOLT
-
4309103-12110 BOLT (12X220)BOLT (12X220)
-
4409159-12054 NUTNUT
-
4509106-10089 BOLT (10X45)BOLT (10X45)
-
4609106-10090 BOLT (10X55)BOLT (10X55)
-
4711322-47H00 PLATE, LOWERPLATE, LOWER
-
4809103-06188 BOLT (6X10)BOLT (6X10)
