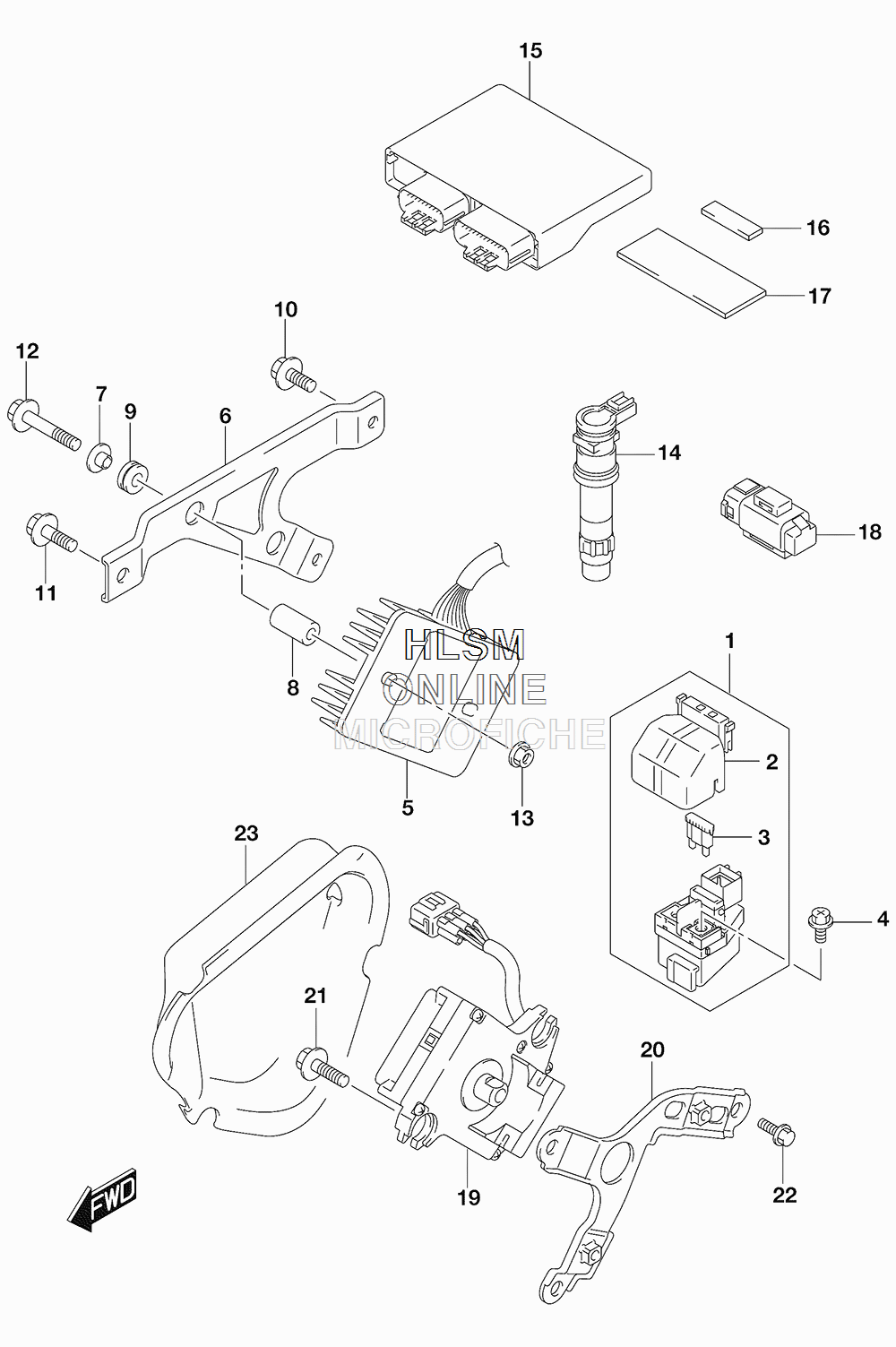

ELECTRICAL для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
131800-41G10 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 ...COVER...COVER
-
309481-30501 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-47H00 RECTIFIER ASSYRECTIFIER ASSY
-
632831-47H10 BRACKET, RECT FTGBRACKET, RECT FTG
-
709180-06325 SPACER (6.2X8.4X6.9)SPACER (6.2X8.4X6.9)
-
809180-06345 SPACER (6.2X14.5X26)SPACER (6.2X14.5X26)
-
909320-08066 CUSHIONCUSHION
-
1001550-0616A BOLTBOLT
-
1109103-06286 BOLT (6X20)BOLT (6X20)
-
1201550-0645A BOLTBOLT
-
1308316-1006A NUTNUT
-
1433410-47H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1532920-47HH1 CONTROL UNIT, FICONTROL UNIT, FI
-
1633652-23H20 CUSHION, FI CONTROL UNITCUSHION, FI CONTROL UNIT
-
1733652-34000 PROTECTOR (30X80X2)PROTECTOR (30X80X2)
-
1833960-27G00 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1933970-47H01 ACTUATOR ASSY, EXHAUSTACTUATOR ASSY, EXHAUST
-
2033971-47H00 HOLDER, ACTUATORHOLDER, ACTUATOR
-
2109116-06202 BOLT (6X25)BOLT (6X25)
-
2201547-0612A BOLTBOLT
-
2333977-47H00 COVER, ACTUATORCOVER, ACTUATOR
