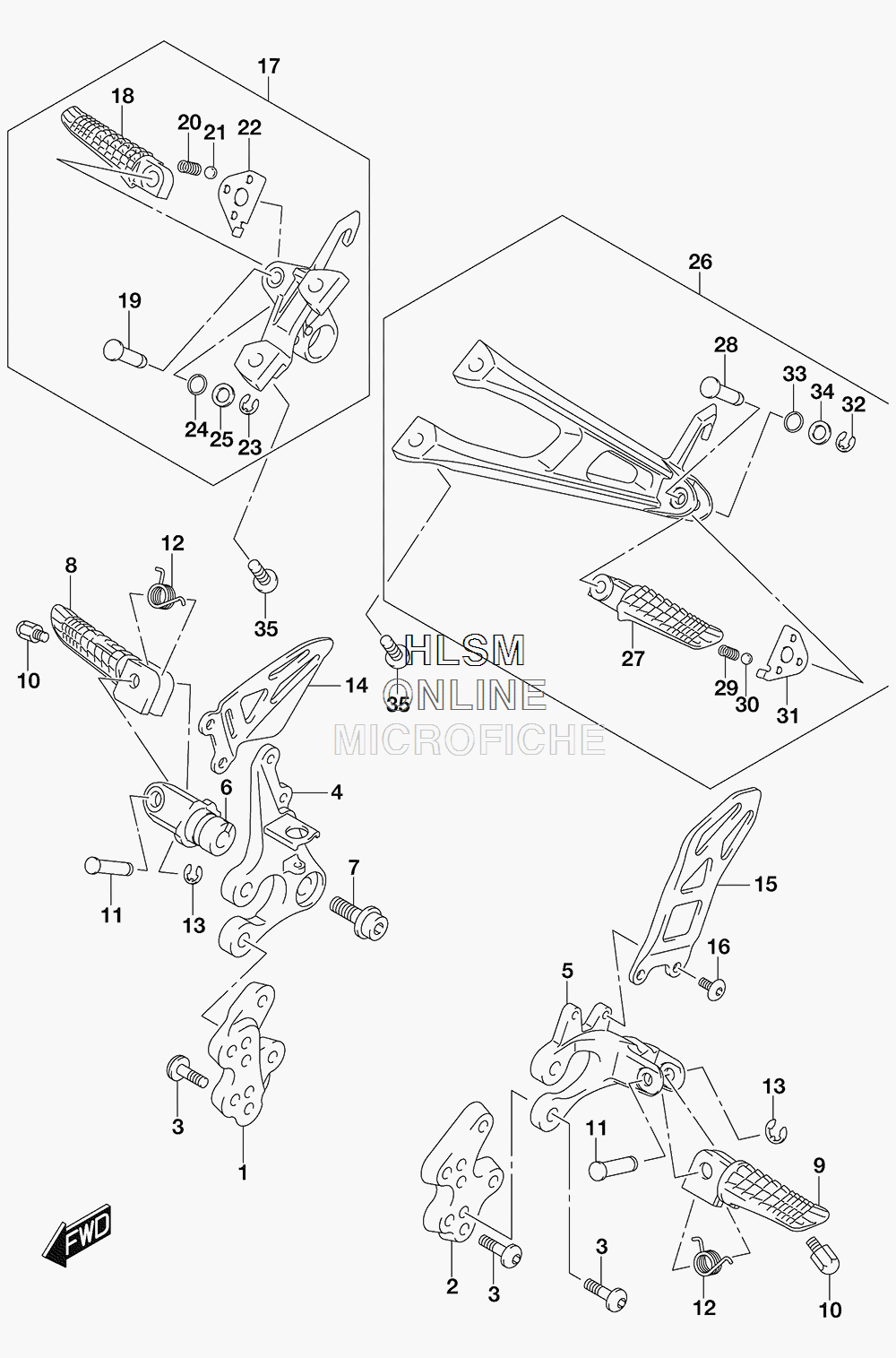

FOOTREST для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
143541-47H10 BRACKET, FRONT NO.1 (RH)BRACKET, FRONT NO.1 (RH)
-
243551-47H10 BRACKET, FRONT NO.1 (LH)BRACKET, FRONT NO.1 (LH)
-
309106-08186 BOLT (8X23)BOLT (8X23)
-
443511-47H10 BRACKET, FRONT NO.2 (RH)BRACKET, FRONT NO.2 (RH)
-
543521-47H20 BRACKET, FRONT NO.2 (LH)BRACKET, FRONT NO.2 (LH)
-
643531-41G20 HOLDER, FOOTRESTHOLDER, FOOTREST
-
709106-10064 BOLT (10X28)BOLT (10X28)
-
843516-37H10 BAR, FOOTREST (RH)BAR, FOOTREST (RH)
-
943526-37H10 BAR, FOOTREST (LH)BAR, FOOTREST (LH)
-
1043576-48B40 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1109208-08018 PINPIN
-
1243581-47H00 SPRING, FRONT FOOTRESTSPRING, FRONT FOOTREST
-
1308332-1106A E RINGE RING
-
1443571-47H30 GUARD, FOOTREST (RH)GUARD, FOOTREST (RH)
-
1543576-47H40 GUARD, FOOTREST (LH)GUARD, FOOTREST (LH)
-
1643577-35F00 SCREW, (LH)SCREW, (LH)
-
1743600-47H20 FOOTREST ASSY, PILLION (RH)FOOTREST ASSY, PILLION (RH)
-
1843611-37H10 ...BAR, PILLION FOOTREST (RH)...BAR, PILLION FOOTREST (RH)
-
1909208-08014 ...PIN...PIN
-
2009440-05005 ...SPRING...SPRING
-
2106111-07004 ...BALL...BALL
-
2243816-47H00 ...PLATE, (RH)...PLATE, (RH)
-
2308332-1106A ...E RING...E RING
-
2418592-68K00 ...O RING...O RING
-
2514289-37H00 ...WASHER...WASHER
-
2643700-47H20 FOOTREST ASSY, PILLION (LH)FOOTREST ASSY, PILLION (LH)
-
2743621-37H10 ...BAR, PILLION FOOTREST (LH)...BAR, PILLION FOOTREST (LH)
-
2809208-08014 ...PIN...PIN
-
2909440-05005 ...SPRING...SPRING
-
3006111-07004 ...BALL...BALL
-
3143826-47H00 ...PLATE, (LH)...PLATE, (LH)
-
3208332-1106A ...E RING...E RING
-
3318592-68K00 ...O RING (D:2.4,ID:6.9)...O RING (D:2.4,ID:6.9)
-
3414289-37H00 ...WASHER...WASHER
-
3509106-08186 BOLT (8X23)BOLT (8X23)
