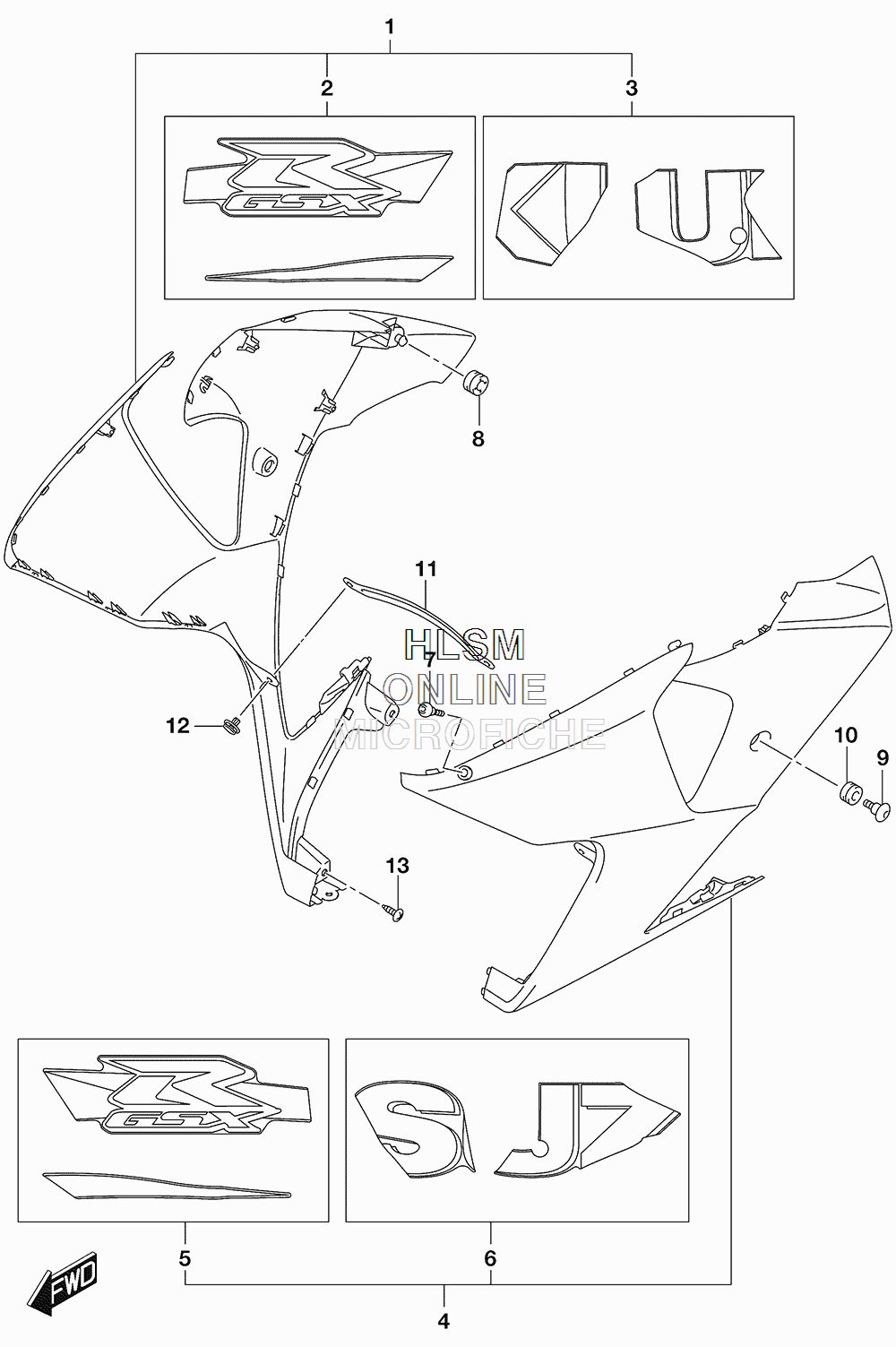

SIDE COWLING (YSF) для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
194490-47H90-YSF COWLING, SIDE RIGHT HAND (BLUE)COWLING, SIDE RIGHT HAND (BLUE)
-
268685-47H30-A4R ...TAPE, SIDE COWLING FRONT (RH)...TAPE, SIDE COWLING FRONT (RH)
-
368685-47H40-A41 ...TAPE, SIDE COWLING REAR (RH)...TAPE, SIDE COWLING REAR (RH)
-
494440-47H90-YSF COWLING, SIDE LEFT HAND (BLUE)COWLING, SIDE LEFT HAND (BLUE)
-
568695-47H30-A4R ...TAPE, SIDE COWLING FRONT (LH)...TAPE, SIDE COWLING FRONT (LH)
-
668695-47H40-A41 ...TAPE, SIDE COWLING REAR (LH)...TAPE, SIDE COWLING REAR (LH)
-
709139-05077 SCREW (5X16)SCREW (5X16)
-
809320-08028 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1009320-09016 CUSHIONCUSHION
-
1194498-47H00 BRACKETBRACKET
-
1294479-35F00 CLIPCLIP
-
1303541-0516A SCREWSCREW
