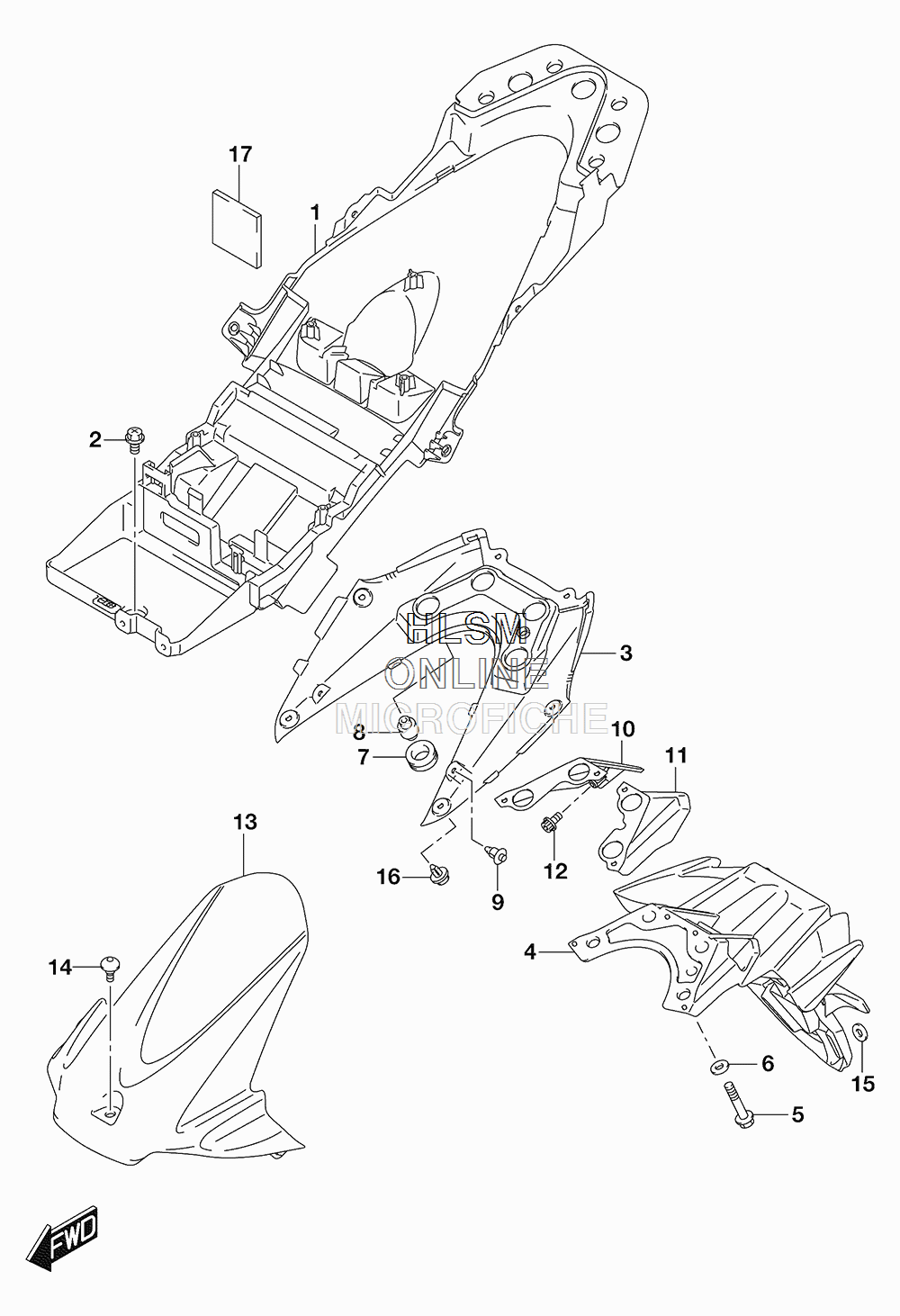

REAR FENDER (CAN) для Suzuki GSX-R1000A L5 - 2015 года выпуска
-
№АртикулНазвание
-
163111-47H10 FENDER, REAR FRONTFENDER, REAR FRONT
-
209111-06107 BOLT (6X12)BOLT (6X12)
-
363112-47H10-YSF COVER, FENDER FRONT (BLUE) (FOR YSF)COVER, FENDER FRONT (BLUE) (FOR YSF)
-
363112-47H10-YVZ COVER, FENDER FRONT (RED) (FOR ARB)COVER, FENDER FRONT (RED) (FOR ARB)
-
363112-47H10-YVB COVER, FENDER FRONT (BLACK) (FOR AR4)COVER, FENDER FRONT (BLACK) (FOR AR4)
-
463113-47H00 FENDER, REARFENDER, REAR
-
509103-06204 BOLT (6X30)BOLT (6X30)
-
609160-06028 WASHER (6.5X18X1)WASHER (6.5X18X1)
-
709320-20010 CUSHIONCUSHION
-
863147-47H00 SPACERSPACER
-
909409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1063170-47H00-YUS COVER, FENDER REAR RIGHT HAND (SILVER)COVER, FENDER REAR RIGHT HAND (SILVER)
-
1163180-47H00-YUS COVER, FENDER REAR LEFT HAND (SILVER)COVER, FENDER REAR LEFT HAND (SILVER)
-
1207120-0510B BOLTBOLT
-
1363114-47H00 FENDER, REAR LOWERFENDER, REAR LOWER
-
1409139-06169 SCREW (6X16)SCREW (6X16)
-
1508322-0106A WASHERWASHER
-
1609409-06328 CLIPCLIP
-
1733652-20C00 CUSHION, TOOL BAGCUSHION, TOOL BAG
