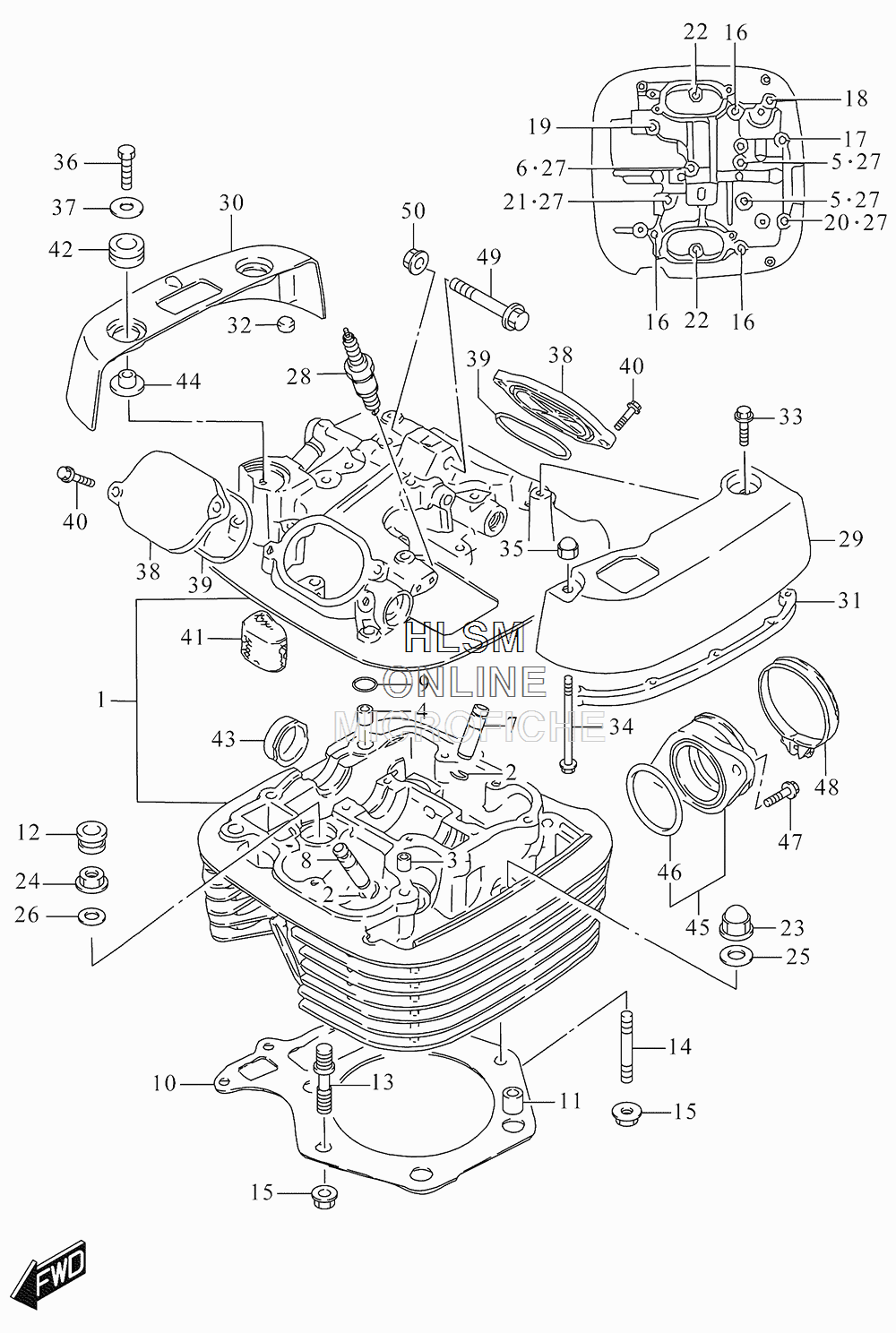

CYLINDER HEAD для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
111100-24B10 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209381-10003 ...SNAP RING...SNAP RING
-
309206-08001 ...PIN (8X11)...PIN (8X11)
-
409206-11011 ...PIN (11X14)...PIN (11X14)
-
509103-06064 ...BOLT (6X60)...BOLT (6X60)
-
609103-06103 ...BOLT (6X70)...BOLT (6X70)
-
711115-44B70 GUIDE, VALVE IN (OS:0.3) (OPT)GUIDE, VALVE IN (OS:0.3) (OPT)
-
811115-37470 GUIDE, VALVE EX (OS:0.3) (OPT)GUIDE, VALVE EX (OS:0.3) (OPT)
-
911178-24B00 O RING, CYLINDER HEAD COVERO RING, CYLINDER HEAD COVER
-
1011141-24B03 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1104211-13189 PINPIN
-
1211145-37401 CAP, CYLINDER HEAD SEALCAP, CYLINDER HEAD SEAL
-
1309108-08205 STUD BOLTSTUD BOLT
-
1409108-08206 STUD BOLT (8X31)STUD BOLT (8X31)
-
1508316-1008A NUTNUT
-
1609103-06026 BOLT (6X39)BOLT (6X39)
-
1709103-06033 BOLT (6X125)BOLT (6X125)
-
1809103-06052 BOLT (6X115)BOLT (6X115)
-
1909103-06064 BOLT (6X60)BOLT (6X60)
-
2009103-06085 BOLT (6X130)BOLT (6X130)
-
2109103-06102 BOLT (6X55)BOLT (6X55)
-
2201550-0625A BOLTBOLT
-
2309159-09003 NUTNUT
-
2409159-09004 NUTNUT
-
2509168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
2609168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
2709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2809482-00334 SPARK PLUG (DPR8EA-9) (NGK)SPARK PLUG (DPR8EA-9) (NGK)
-
2809482-00335 SPARK PLUG (X24EPR-U9) (DENSO)SPARK PLUG (X24EPR-U9) (DENSO)
-
2809482-00354 SPARK PLUG (DPR7EA-9) (OPT NGK)SPARK PLUG (DPR7EA-9) (OPT NGK)
-
2911171-24B04 CAP, HEAD COVER LEFT HANDCAP, HEAD COVER LEFT HAND
-
3011172-24B04 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
3111272-24B01 CUSHION, LEFT HAND CAPCUSHION, LEFT HAND CAP
-
3211273-24B00 CUSHION, RIGHT HAND CAPCUSHION, RIGHT HAND CAP
-
3301550-0620A BOLT (LEFT HAND, NO.2)BOLT (LEFT HAND, NO.2)
-
3401550-0665A BOLT (LEFT HAND, NO.1)BOLT (LEFT HAND, NO.1)
-
3508313-2006A NUTNUT
-
3601500-0625A BOLT (RIGHT HAND)BOLT (RIGHT HAND)
-
3709160-06134 WASHER (6.5X24X1.6)WASHER (6.5X24X1.6)
-
3811175-24B10 CAP, INSPECTIONCAP, INSPECTION
-
3909280-60004 O RING (D:2.4,ID:23)O RING (D:2.4,ID:23)
-
4001550-0620A BOLTBOLT
-
4111186-24B02 SEPARATOR, OIL BRTHR COVERSEPARATOR, OIL BRTHR COVER
-
4209320-13015 CUSHIONCUSHION
-
4309241-30008 PLUG (OD:30)PLUG (OD:30)
-
4409301-06007 BUSHBUSH
-
4513101-14A10 PIPE, INTAKEPIPE, INTAKE
-
4609280-46002 ...O RING (D:2.4,ID:45.7)...O RING (D:2.4,ID:45.7)
-
4702112-1620B SCREWSCREW
-
4809402-58208 CLAMPCLAMP
-
4909103-08339 BOLT (8X55)BOLT (8X55)
-
5008319-3108A NUTNUT
