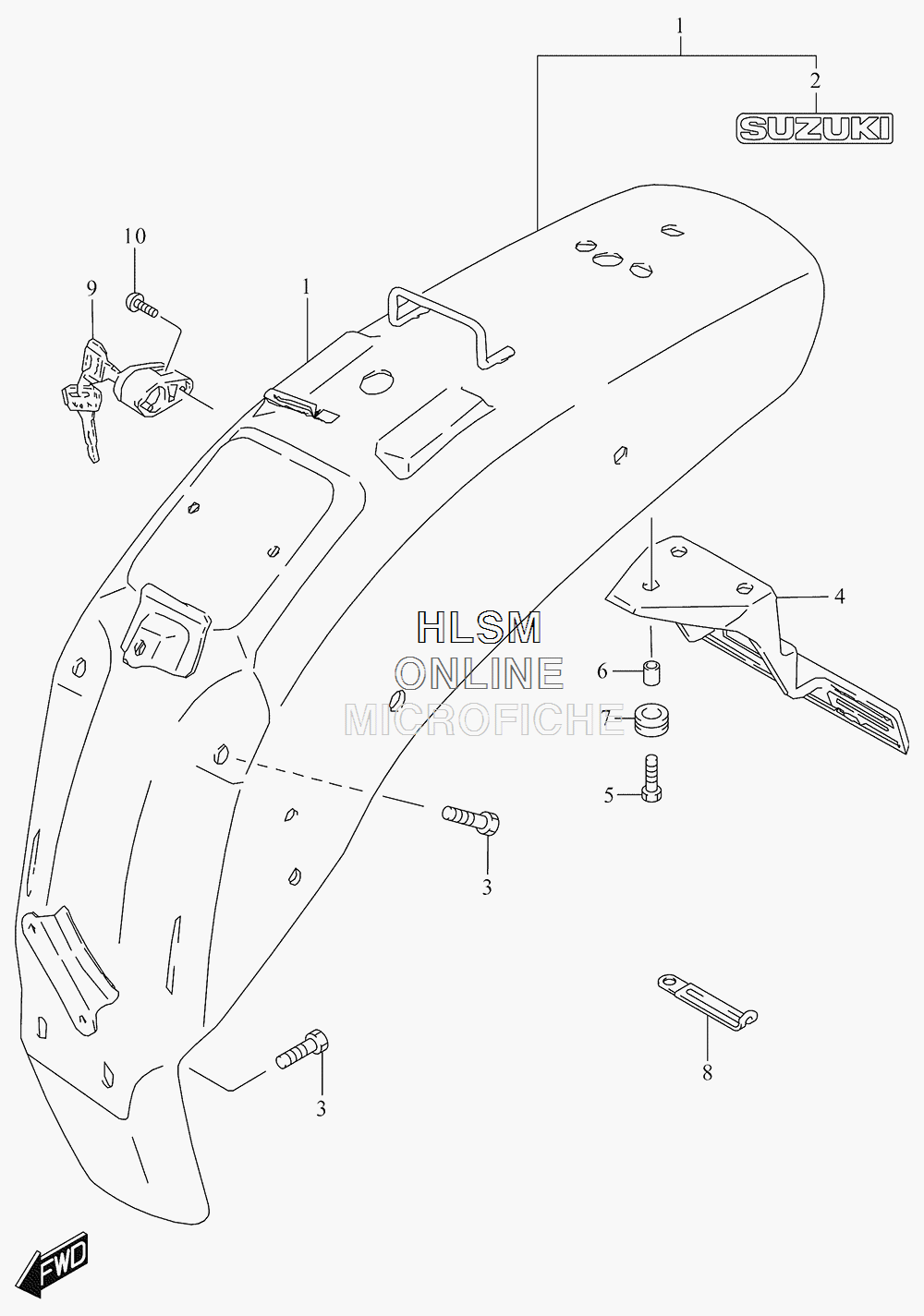

FENDER - REAR для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
163100-24C00-YWC FENDER ASSY, REAR (GRAY)FENDER ASSY, REAR (GRAY)
-
163100-24C00-YYG FENDER, ASSY REAR (RED)FENDER, ASSY REAR (RED)
-
268271-34A00-YES ...EMBLEM, ''SUZUKI'' (SILVER)...EMBLEM, ''SUZUKI'' (SILVER)
-
309103-08419 BOLT (8X25)BOLT (8X25)
-
435916-24B01 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
509116-06010 BOLT (6X20)BOLT (6X20)
-
609180-06263 SPACER (6.5X9X9)SPACER (6.5X9X9)
-
709320-09016 CUSHIONCUSHION
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
995700-38821 LOCK SET, HELMETLOCK SET, HELMET
-
1002112-05127 SCREWSCREW
