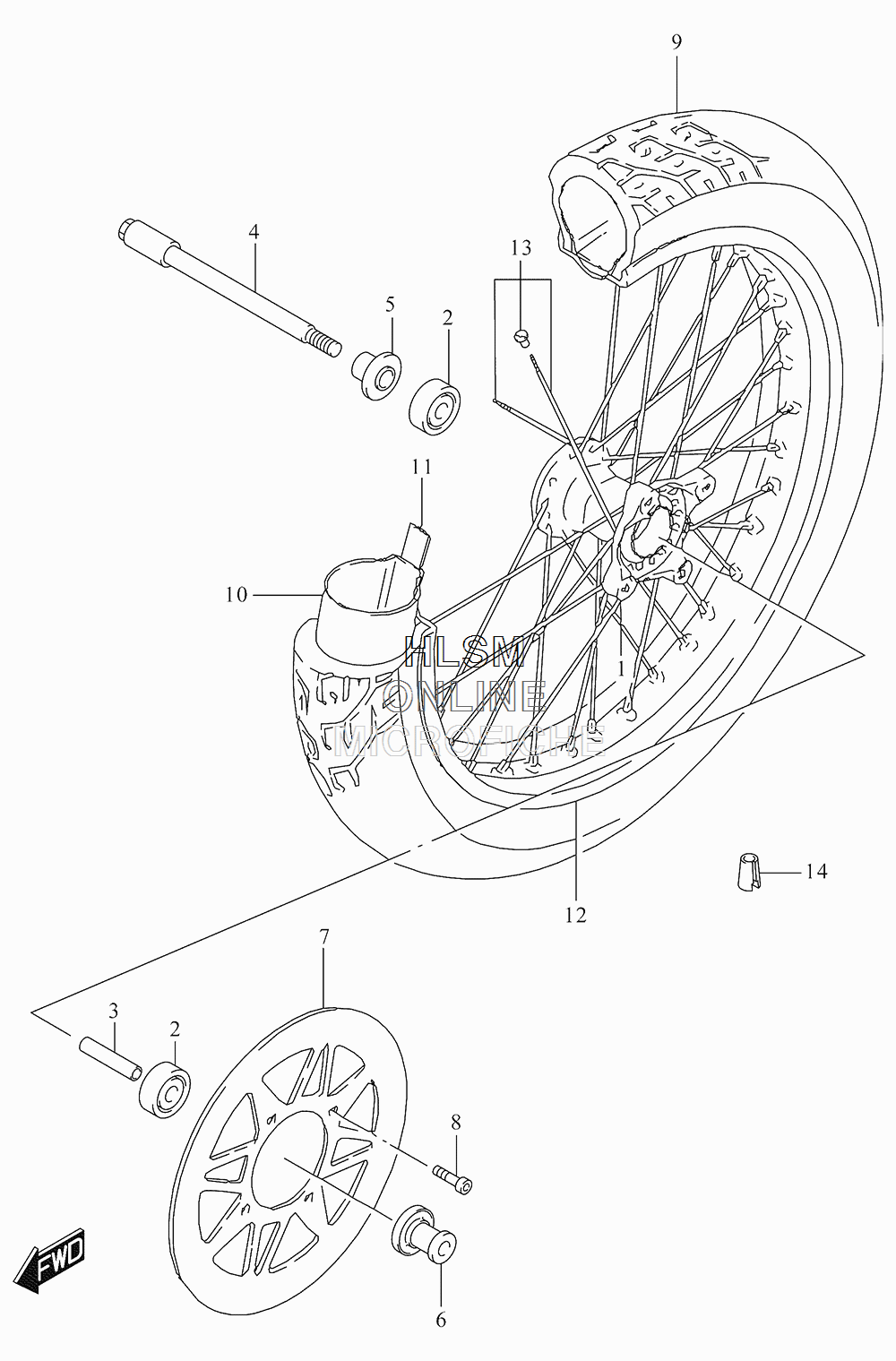

WHEEL - FRONT для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
154111-24B01 HUB, FRONTHUB, FRONT
-
208123-63027 BEARINGBEARING
-
309180-15074 SPACER (15.3X21.7X56)SPACER (15.3X21.7X56)
-
454711-24B01 AXLE, FRONTAXLE, FRONT
-
554740-24B00 SPACER, FRONT AXLE RIGHT HANDSPACER, FRONT AXLE RIGHT HAND
-
654750-24B00 SPACER, FRONT AXLE LEFT HANDSPACER, FRONT AXLE LEFT HAND
-
759211-24B10 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
809106-08049 BOLT (8X25.5)BOLT (8X25.5)
-
955100-24B02 TIRE, FRONT (100/90-19M/C 57H) (IRC)TIRE, FRONT (100/90-19M/C 57H) (IRC)
-
1055200-44610 TUBE ASSY, WHEEL INNER FRONTTUBE ASSY, WHEEL INNER FRONT
-
1155261-15020 PROTECTOR, WHEEL INNER TUBE FRONTPROTECTOR, WHEEL INNER TUBE FRONT
-
1255311-24B00 RIM, FRONT WHEEL (WM2.15X19)RIM, FRONT WHEEL (WM2.15X19)
-
1355320-24B10 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
1455411-26G00 BALANCER, WHEEL NO.2 (15G)BALANCER, WHEEL NO.2 (15G)
-
1455413-41F00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
