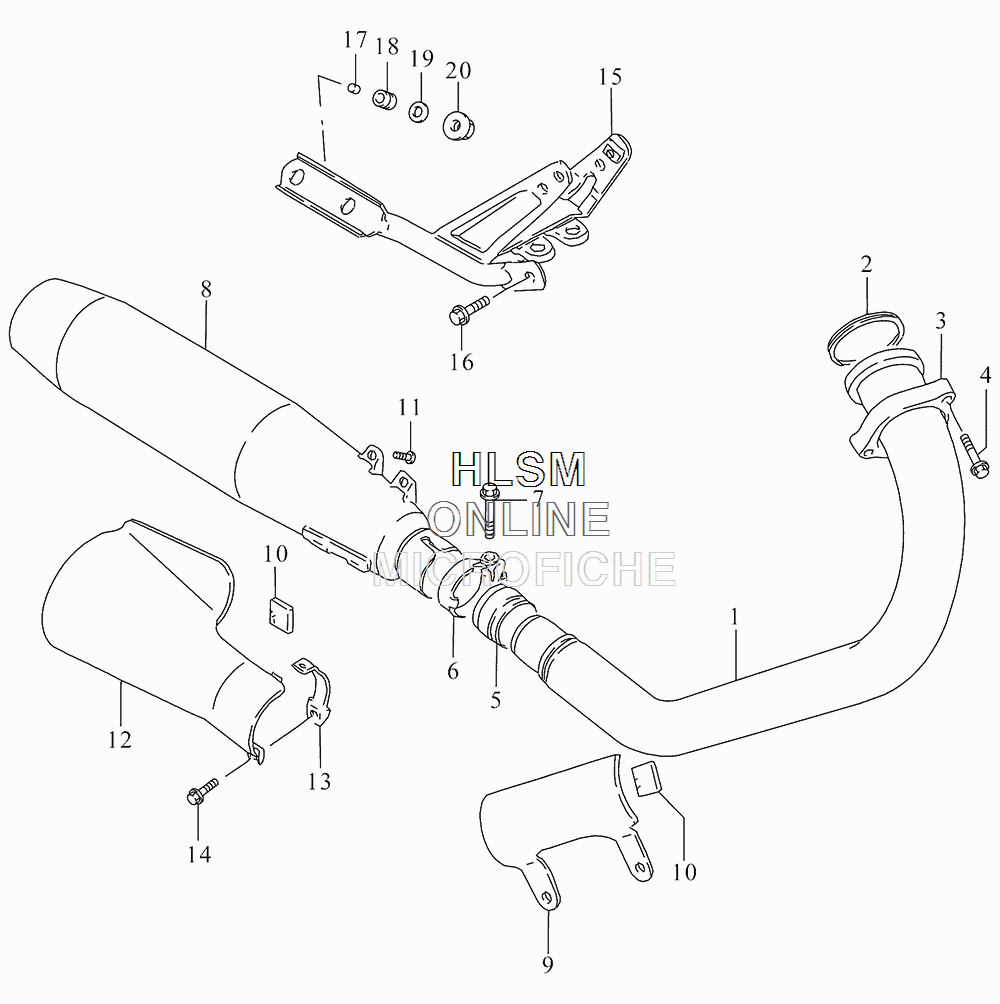

MUFFLER для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
114150-24B01 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-45C00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
314182-38A02 CLAMP, EXHAUST PIPECLAMP, EXHAUST PIPE
-
409104-08026 BOLT (8X35)BOLT (8X35)
-
514771-46E00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
614459-14A10 CLAMP, CONNECTOR MUFFLERCLAMP, CONNECTOR MUFFLER
-
701550-0840A BOLTBOLT
-
814310-24B44-H01 BODY, MUFFLERBODY, MUFFLER
-
914780-24B01 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
1014789-24B12 GASKETGASKET
-
1102112-0610B SCREWSCREW
-
1214790-24B00 COVER, MUFFLERCOVER, MUFFLER
-
1314785-24B00 CLAMP, MUFFLER COVERCLAMP, MUFFLER COVER
-
1401550-0620A BOLTBOLT
-
1514410-24B10-019 STAY, MUFFLER (BLACK)STAY, MUFFLER (BLACK)
-
1609103-08505 BOLT (8X20)BOLT (8X20)
-
1709180-08189 SPACER (8.5X12X11)SPACER (8.5X12X11)
-
1809320-12041 CUSHIONCUSHION
-
1909160-08134 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
2008319-3108A NUTNUT
