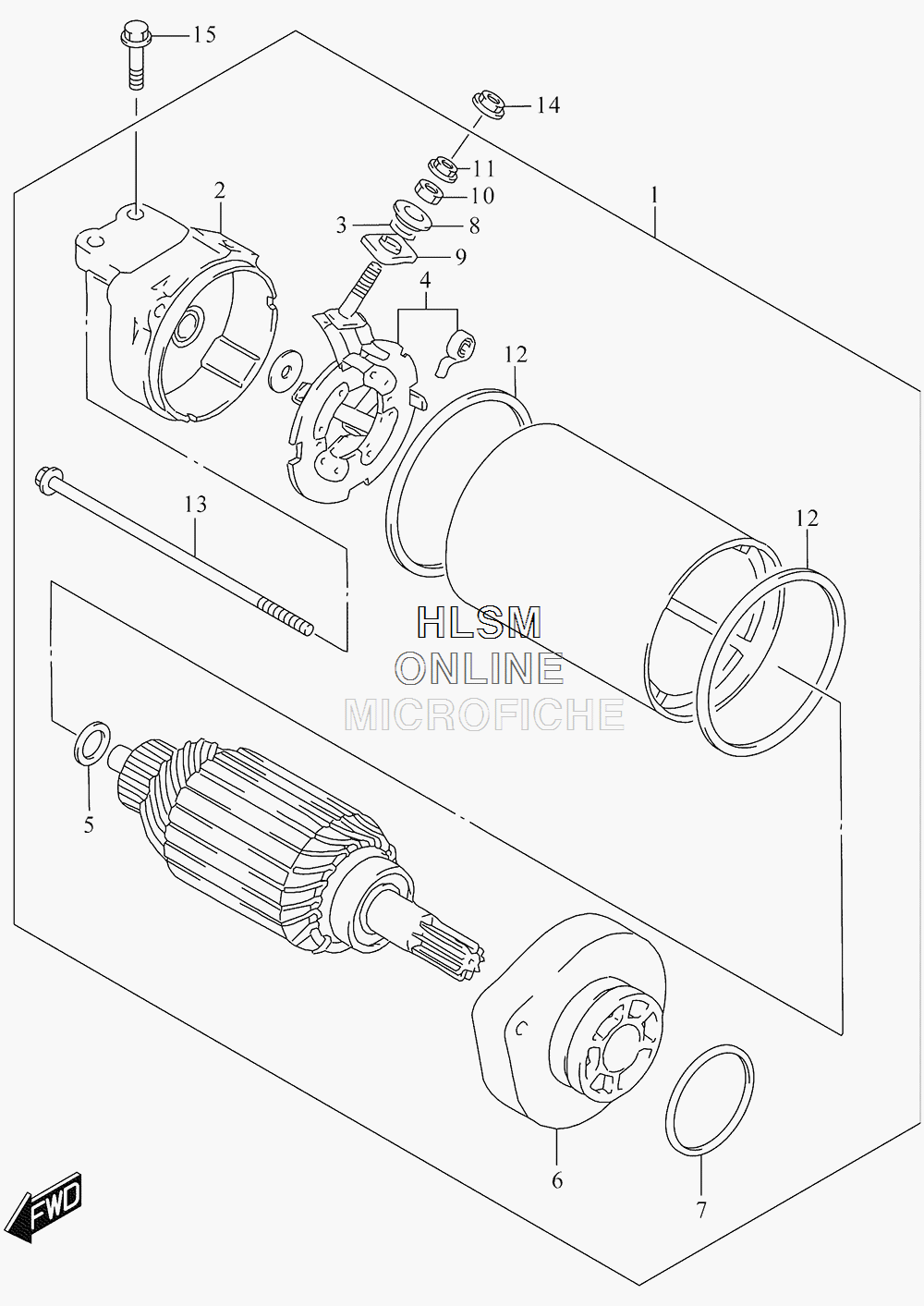

STARTING MOTOR для Suzuki LS650 L5 BOULEVARD S40 - 2015 года выпуска
-
№АртикулНазвание
-
131100-07F00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231170-07F00 ...FRAME ASSY...FRAME ASSY
-
331143-38300 ...O RING...O RING
-
431132-45C00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531170-43400 ...SHIM SET...SHIM SET
-
631150-44B10 ...HOUSING ASSY...HOUSING ASSY
-
731156-48B00 ...O RING...O RING
-
831172-38300 ...BUSHING...BUSHING
-
931173-88C00 ...BUSHING...BUSHING
-
1008310-00067 ...NUT...NUT
-
1108361-3506A ...NUT...NUT
-
1231264-44110 ...O RING...O RING
-
1331281-31D00 ...BOLT...BOLT
-
1408361-3506A NUTNUT
-
1509103-06223 BOLT (6X20)BOLT (6X20)
