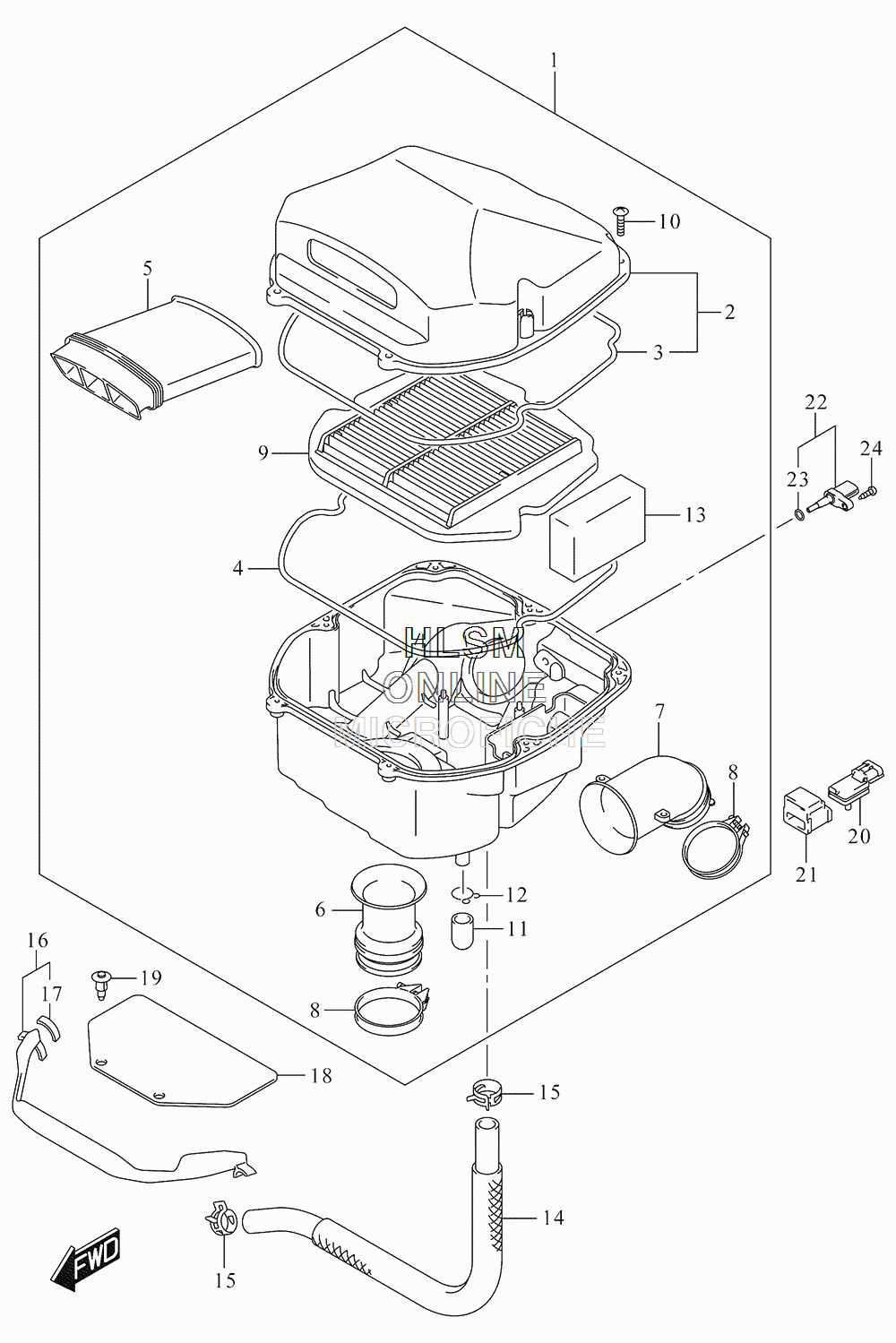

AIR CLEANER для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
113700-44H01 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-44H00 ...CAP, AIR CLEANER...CAP, AIR CLEANER
-
313746-44H00 ......GASKET......GASKET
-
413746-44H00 ...GASKET...GASKET
-
513891-44H00 ...TUBE, INLET...TUBE, INLET
-
613881-44H00 ...TUBE, OUTLET...TUBE, OUTLET
-
713882-44H00 ...TUBE, OUTLET...TUBE, OUTLET
-
813826-44H01 ...CLAMP, OUTLET TUBE...CLAMP, OUTLET TUBE
-
913780-44H00 ...FILTER, AIR CLEANER...FILTER, AIR CLEANER
-
1003541-0520A ...SCREW...SCREW
-
1113859-41B10 ...PLUG...PLUG
-
1209401-14301 ...CLIP...CLIP
-
1313788-44H00 ...FILTER, BREATHER...FILTER, BREATHER
-
1413850-44H00 TUBE, BREATHERTUBE, BREATHER
-
1509401-20405 CLIPCLIP
-
1613840-44H00 COVER, INLETCOVER, INLET
-
1744894-24A00 ...CUSHION...CUSHION
-
1813841-44H00 SHEETSHEET
-
1909409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
2018591-41F00 SENSOR, BOOSTSENSOR, BOOST
-
2118595-41F00 HOLDERHOLDER
-
2213650-41F10 SENSOR AIR TEMPSENSOR AIR TEMP
-
2313655-41F10 ...O RING...O RING
-
2403511-0516A SCREWSCREW
