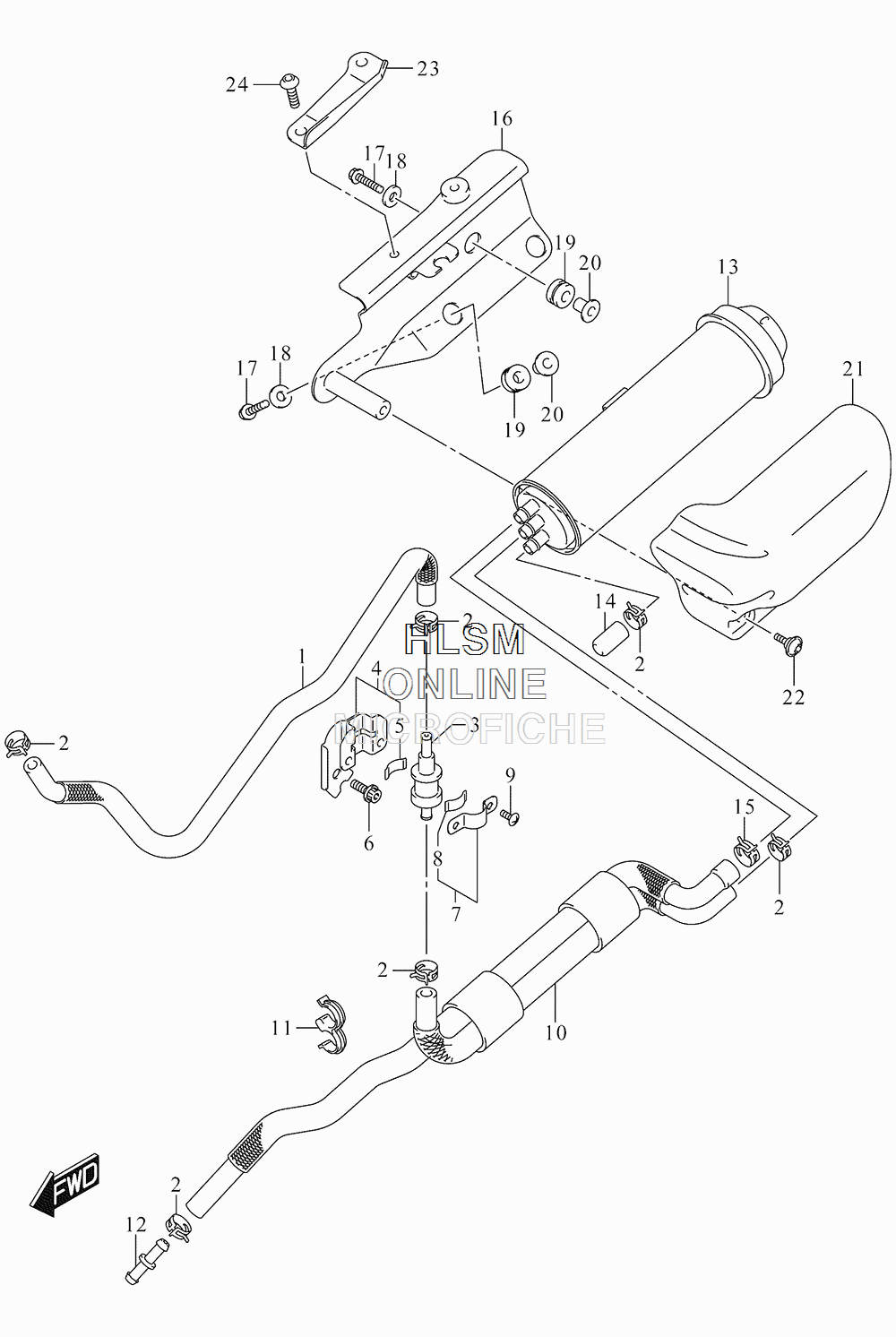

EVAP SYSTEM (CALIF) для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
144434-44H00 HOSE, TANK AND BREATHER VALVEHOSE, TANK AND BREATHER VALVE
-
209401-11413 CLIPCLIP
-
344240-38A00 VALVE, BREATHERVALVE, BREATHER
-
444890-44H00 BRACKET, VALVEBRACKET, VALVE
-
544894-24A00 ...CUSHION...CUSHION
-
607120-0616A BOLTBOLT
-
744892-24A00 PLATE, VALVEPLATE, VALVE
-
844894-24A00 ...CUSHION...CUSHION
-
902142-0408A SCREWSCREW
-
1044430-44H00 HOSE, CANISTERHOSE, CANISTER
-
1109408-00155 CLAMPCLAMP
-
1209367-06009 JOINTJOINT
-
1317200-38A10 CANISTERCANISTER
-
1409251-07003 CAP (OD:11.5)CAP (OD:11.5)
-
1509401-12404 CLIPCLIP
-
1644880-44H00 BRACKET, CANISTERBRACKET, CANISTER
-
1701547-0620A BOLTBOLT
-
1809160-06037 WASHER (6.5X16X3.2)WASHER (6.5X16X3.2)
-
1909320-08001 CUSHIONCUSHION
-
2009169-06070 WASHERWASHER
-
2144991-44H00 COVER, CANISTERCOVER, CANISTER
-
2209139-05064 SCREW (5X13)SCREW (5X13)
