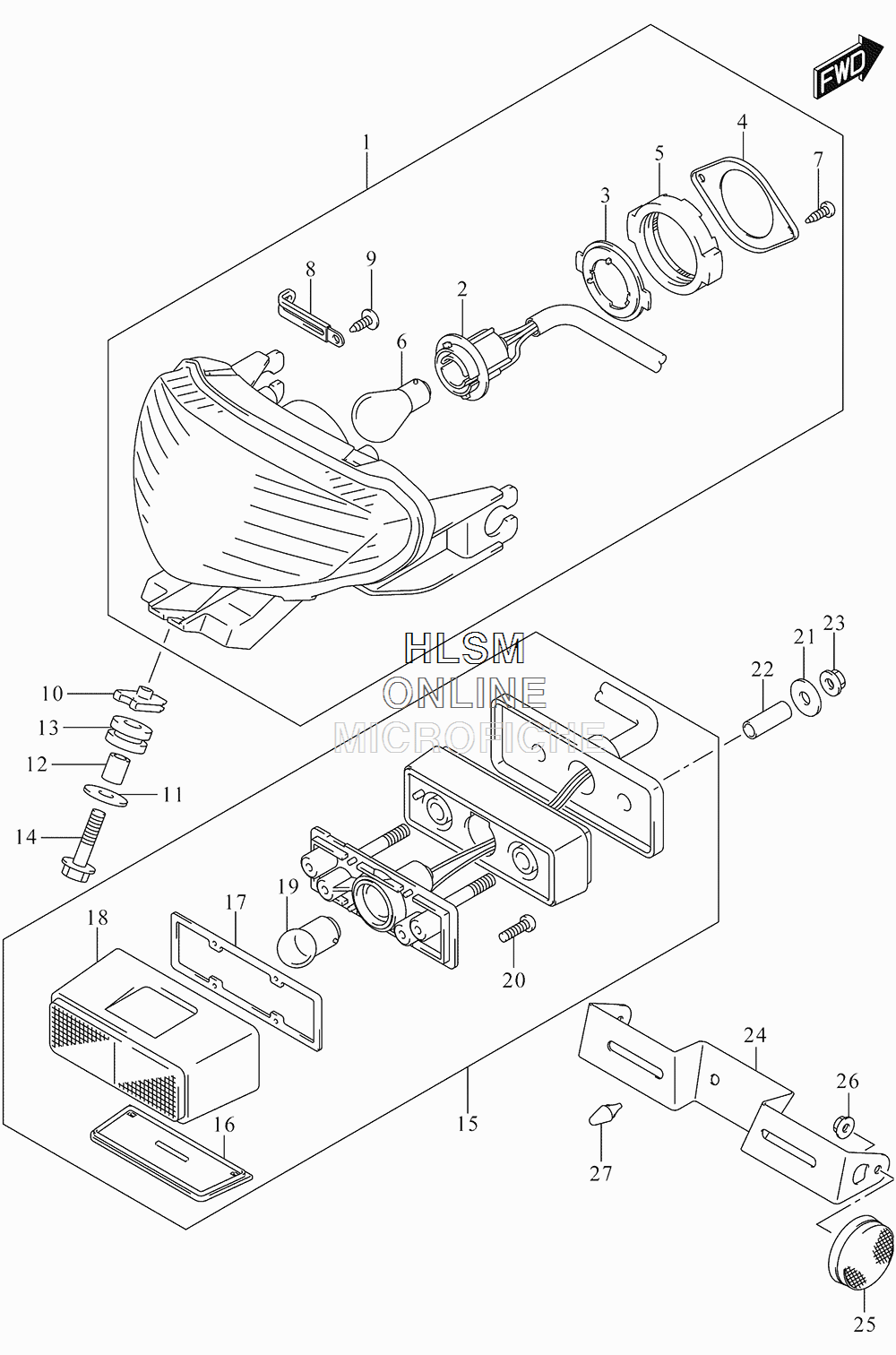

TAILLIGHT ASSY. для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
135710-44H00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235718-44H00 ...SOCKET AND CORD...SOCKET AND CORD
-
335716-48B21 ...PLATE, NO.1...PLATE, NO.1
-
435736-48B21 ...PLATE, NO.2...PLATE, NO.2
-
535765-42E00 ...CUSHION...CUSHION
-
609471-12046 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
703211-0412A ...SCREW...SCREW
-
809404-06429 ...CLAMP (L:45)...CLAMP (L:45)
-
903541-0512A ...SCREW...SCREW
-
1009148-05039 NUTNUT
-
1109160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
1209180-05301 SPACER (5.5X9.5X10)SPACER (5.5X9.5X10)
-
1309320-10054 CUSHIONCUSHION
-
1401550-0525A BOLTBOLT
-
1535910-41G31 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
1635912-41G01 ...LENS, LICENSE...LENS, LICENSE
-
1735913-41G00 ...GASKET...GASKET
-
1835917-41G00 ...COVER, LICENSE LAMP...COVER, LICENSE LAMP
-
1909471-12140 ...BULB (12V,5W)...BULB (12V,5W)
-
2003211-0416A ...SCREW...SCREW
-
2109160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
2209180-06278 SPACER (6.5X9X33.3)SPACER (6.5X9X33.3)
-
2308316-1006A NUTNUT
-
2435927-44H30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2535970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2608316-1005A NUTNUT
-
2709321-06028 CUSHIONCUSHION
