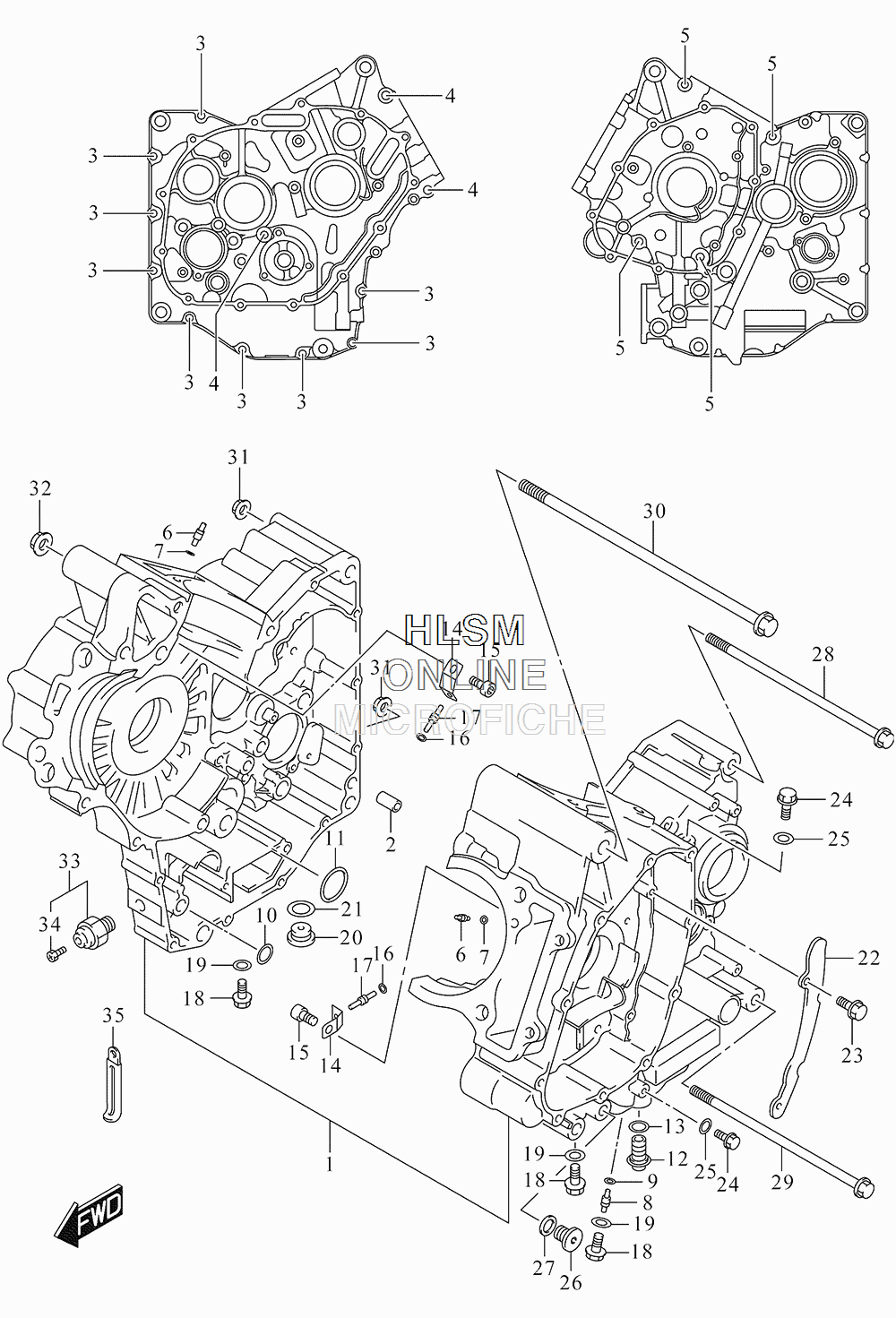

CRANKCASE для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
111301-27850 CRANKCASE SETCRANKCASE SET
-
209206-11007 ...PIN (8.4X11X20)...PIN (8.4X11X20)
-
301547-0650A ...BOLT...BOLT
-
407120-0855A ...BOLT...BOLT
-
507120-0880A ...BOLT...BOLT
-
609493-28010 JET AIR(14)JET AIR(14)
-
709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
809493-36004 JET, OIL GALLYJET, OIL GALLY
-
909280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1009280-12009 O RING (D:1.9,ID:12.6)O RING (D:1.9,ID:12.6)
-
1109280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1209247-12011 PLUG (12X20) (OIL DRAIN)PLUG (12X20) (OIL DRAIN)
-
1309168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1416438-19F00 PLATE, PISTON COOLING JETPLATE, PISTON COOLING JET
-
1509106-06075 BOLT (6X12)BOLT (6X12)
-
1609280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1709493-26007 JETJET
-
1801550-0812A BOLTBOLT
-
1909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
2009248-16012 PLUG (16X8)PLUG (16X8)
-
2109168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2211323-19F00 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
2301547-0612A BOLTBOLT
-
2401547-0610A BOLTBOLT
-
2509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
2609247-12006 PLUG (12X10)PLUG (12X10)
-
2709168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2809103-10041-A05 BOLT (10X215)BOLT (10X215)
-
2909103-10145 BOLT (10X205)BOLT (10X205)
-
3009103-12016 BOLT (12X300)BOLT (12X300)
-
3109159-10111 NUTNUT
-
3209159-12054 NUTNUT
-
3337820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
3437822-33D00 ...BOLT, OIL PRESSURE SWITCH...BOLT, OIL PRESSURE SWITCH
-
3509404-06429 CLAMP (L:45)CLAMP (L:45)
