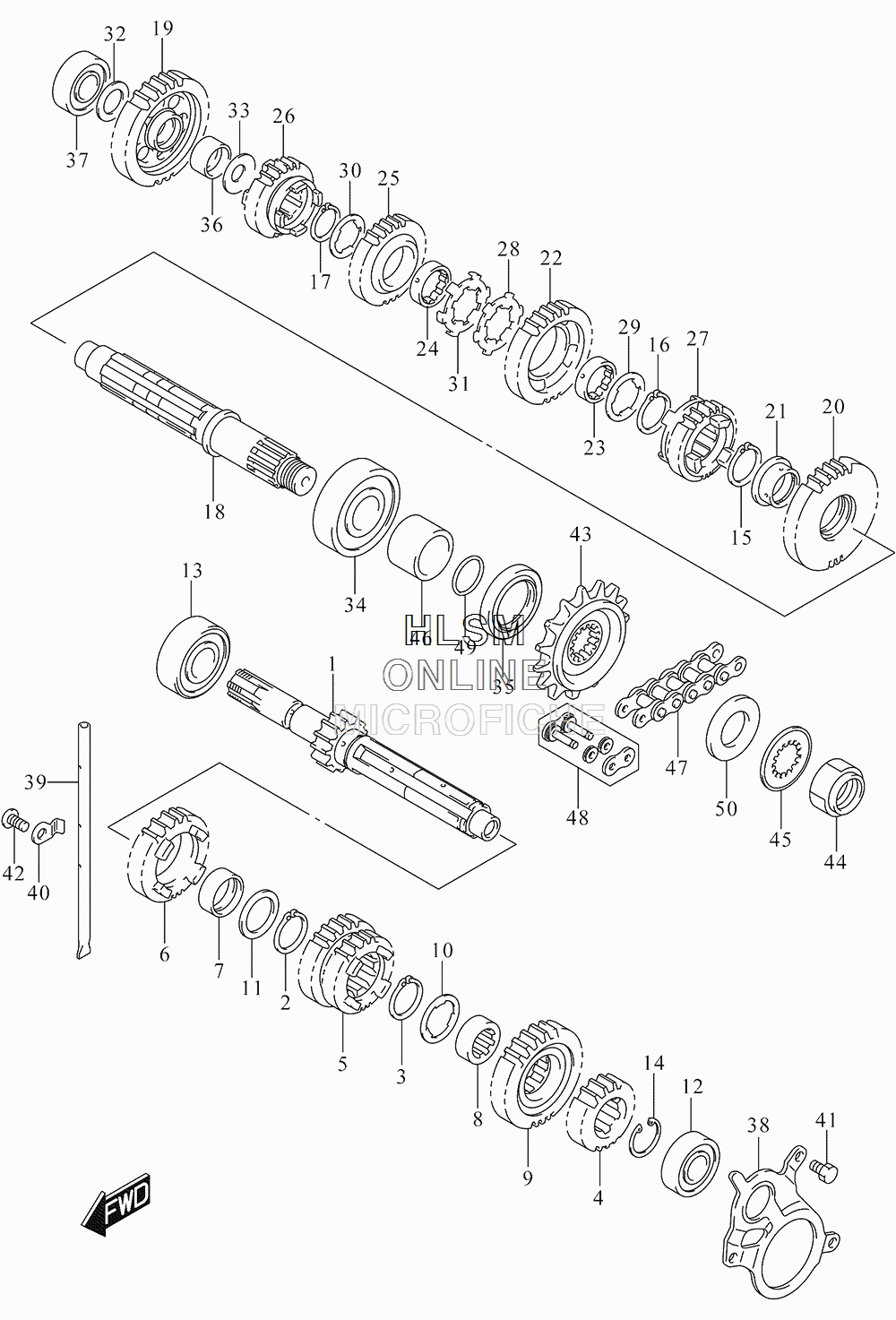

TRANSMISSION для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
124120-27G00 SHAFT, COUNTER (NT:13)SHAFT, COUNTER (NT:13)
-
224127-19F00 CIRCLIP, 5TH DRIVE GEARCIRCLIP, 5TH DRIVE GEAR
-
324127-19F00 CIRCLIP, 6TH DRIVE GEARCIRCLIP, 6TH DRIVE GEAR
-
424221-20F10 GEAR, 2ND DRIVE (NT:18)GEAR, 2ND DRIVE (NT:18)
-
524231-20F10 GEAR, 3RD AND 4TH DRIVE (NT:21/24)GEAR, 3RD AND 4TH DRIVE (NT:21/24)
-
624251-20F02 GEAR, 5TH DRIVE (NT:26)GEAR, 5TH DRIVE (NT:26)
-
724252-19F00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
824252-38A10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
924261-20F00 GEAR, 6TH DRIVE (NT:27)GEAR, 6TH DRIVE (NT:27)
-
1009167-25021 LOCK WASHERLOCK WASHER
-
1109181-25167 SHIM (25X34X1)SHIM (25X34X1)
-
1209262-17046 BEARING (17X40X12) (LEFT HAND)BEARING (17X40X12) (LEFT HAND)
-
1309262-20145 BEARING (20X52X15) (RIGHT HAND)BEARING (20X52X15) (RIGHT HAND)
-
1409380-25012 CIRCLIPCIRCLIP
-
1524127-19F00 CIRCLIP, 2ND DRIVEN GEARCIRCLIP, 2ND DRIVEN GEAR
-
1624127-19F00 CIRCLIP, 3RD DRIVEN GEARCIRCLIP, 3RD DRIVEN GEAR
-
1724127-19F00 CIRCLIP, 4TH DRIVEN GEARCIRCLIP, 4TH DRIVEN GEAR
-
1824130-44H10 SHAFT, DRIVESHAFT, DRIVE
-
1924311-44H00 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
2024321-44H10 GEAR, 2ND DRIVEN (NT:32)GEAR, 2ND DRIVEN (NT:32)
-
2124322-19F10 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2224331-44H00 GEAR, 3RD DRIVEN (NT:29)GEAR, 3RD DRIVEN (NT:29)
-
2324332-24510 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
2424332-24510 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2524341-44H00 GEAR, 4TH DRIVEN (NT:27)GEAR, 4TH DRIVEN (NT:27)
-
2624351-44H10 GEAR, 5TH DRIVEN (NT:25)GEAR, 5TH DRIVEN (NT:25)
-
2724361-44H00 GEAR, 6TH DRIVEN (NT:23)GEAR, 6TH DRIVEN (NT:23)
-
2809167-25013 LOCK WASHERLOCK WASHER
-
2909167-25021 LOCK WASHERLOCK WASHER
-
3009167-25021 LOCK WASHERLOCK WASHER
-
3109169-25001 WASHERWASHER
-
3209181-17195 SHIM (17X28X1)SHIM (17X28X1)
-
3309181-20195 SHIM (20X30X1)SHIM (20X30X1)
-
3409262-25125 BEARING (25X62X17) (LEFT HAND)BEARING (25X62X17) (LEFT HAND)
-
3509283-36011 OIL SEAL (36X50X6)OIL SEAL (36X50X6)
-
3609300-20032 BUSH (20X24X13)BUSH (20X24X13)
-
3709262-17023 BEARING (17X40X12) (RIGHT HAND)BEARING (17X40X12) (RIGHT HAND)
-
3824751-19F10 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
3924881-12C20 GUIDE, T/M OILGUIDE, T/M OIL
-
4024885-12C10 RETAINER, T/M OILRETAINER, T/M OIL
-
4101500-0612A BOLTBOLT
-
4202112-0612A SCREWSCREW
-
4327510-02D10 SPROCKET, ENGINE (NT:15)SPROCKET, ENGINE (NT:15)
-
4409159-20004 NUTNUT
-
4509167-25028 LOCK WASHERLOCK WASHER
-
4627531-19F10 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4727600-44H00-112 CHAIN ASSY, DRIVE (DID 520VM2)CHAIN ASSY, DRIVE (DID 520VM2)
-
4827620-44H00 JOINT SET, CHAIN (OPT)JOINT SET, CHAIN (OPT)
-
4909280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
5008211-25442 WASHERWASHER
