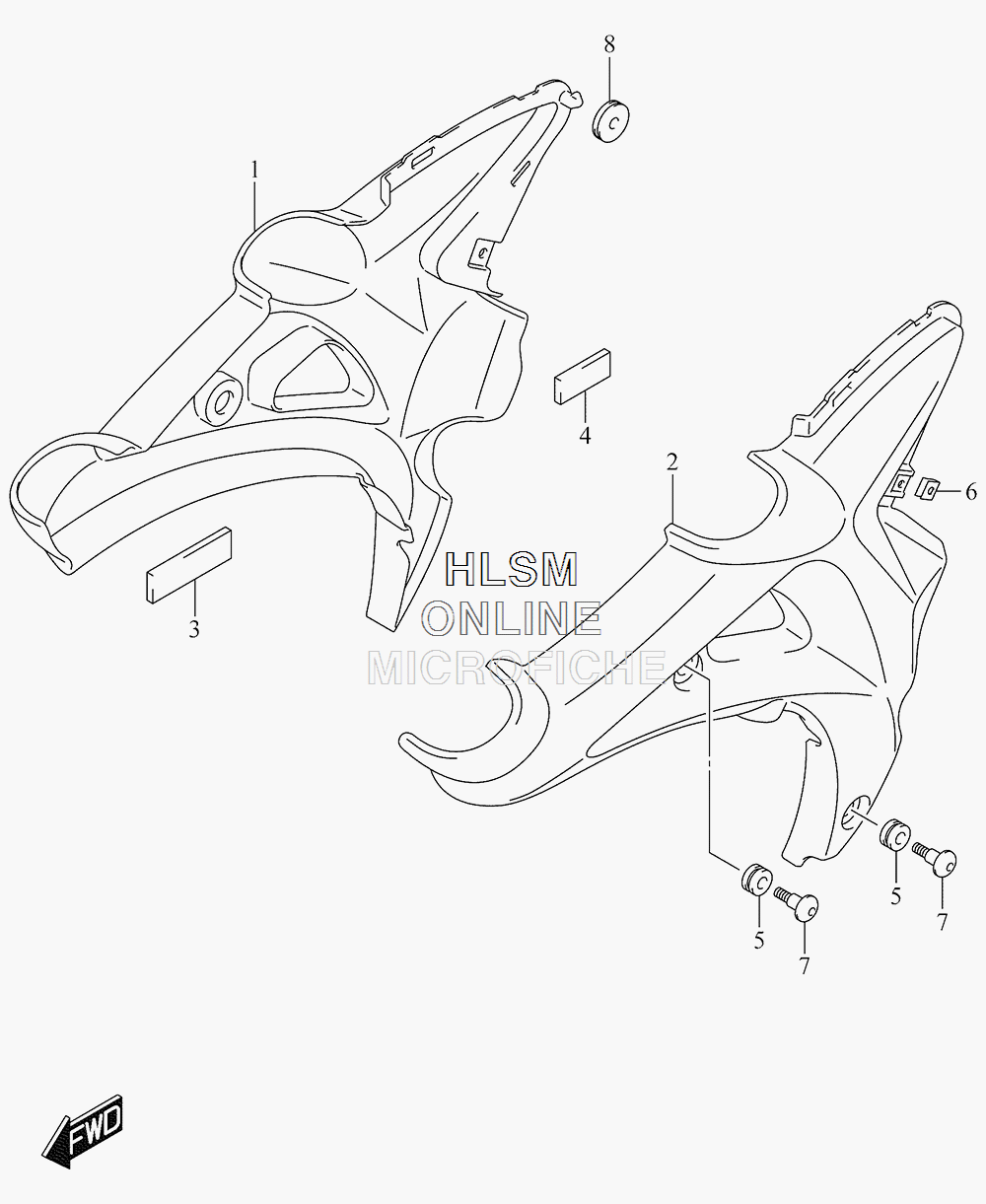

FRAME LOWER COVER для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
147611-44H00-YVZ COVER, FRAME LOWER RIGHT HAND (RED) (FOR AR4)COVER, FRAME LOWER RIGHT HAND (RED) (FOR AR4)
-
147611-44H00-YVB COVER, FRAME LOWER RIGHT HAND (BLACK) (FOR AJP,KGL)COVER, FRAME LOWER RIGHT HAND (BLACK) (FOR AJP,KGL)
-
247711-44H00-YVZ COVER, FRAME LOWER LEFT HAND (RED) (FOR AR4)COVER, FRAME LOWER LEFT HAND (RED) (FOR AR4)
-
247711-44H00-YVB COVER, FRAME LOWER LEFT HAND (BLACK) (FOR AJP,KGL)COVER, FRAME LOWER LEFT HAND (BLACK) (FOR AJP,KGL)
-
347612-44H00 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
447613-44H00 CUSHION, COVER CENTERCUSHION, COVER CENTER
-
509320-09016 CUSHION (LOWER)CUSHION (LOWER)
-
609148-05052 NUTNUT
-
709139-06126 SCREW (6X20)SCREW (6X20)
-
809320-08028 CUSHIONCUSHION
