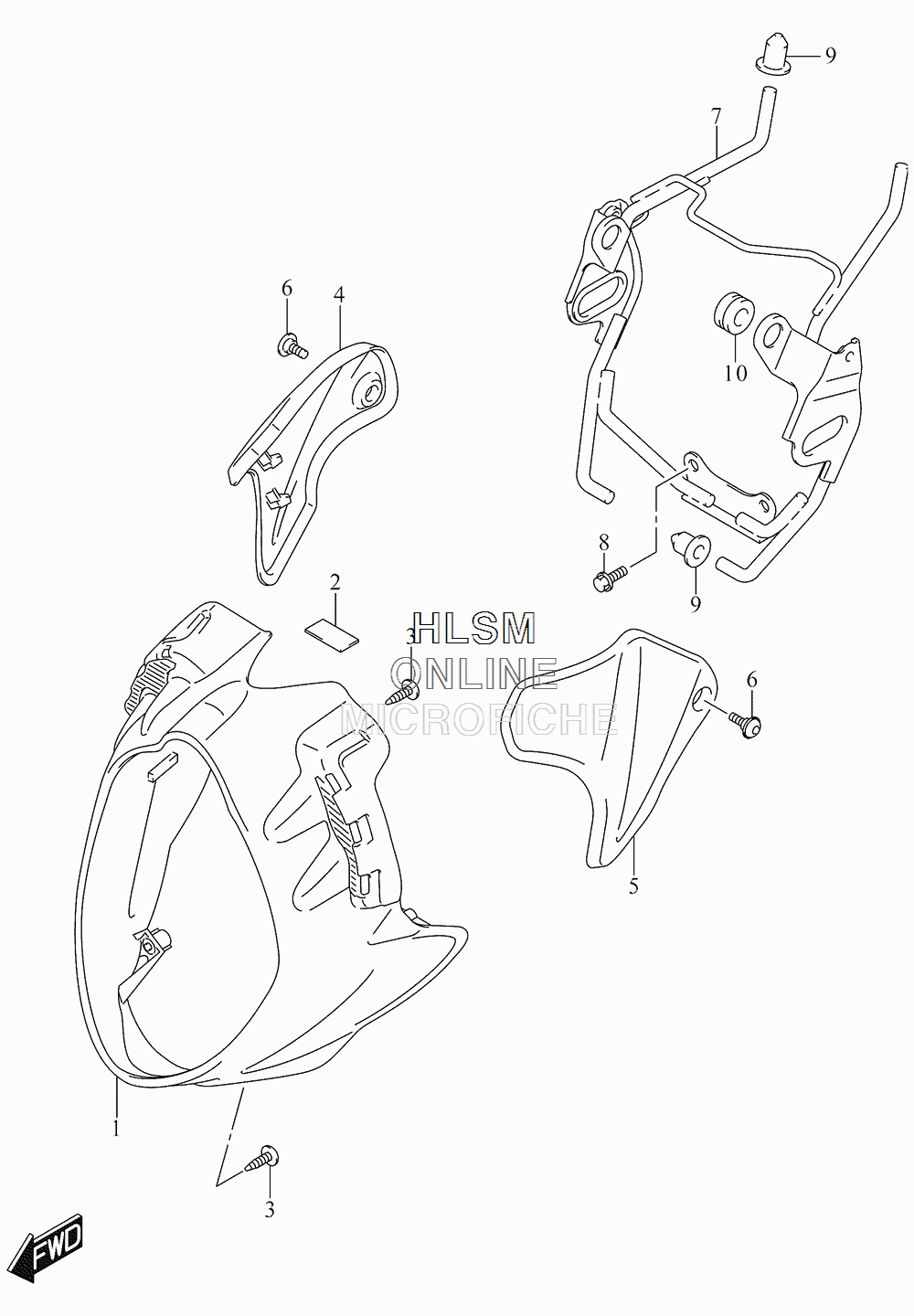

HEADLAMP HOUSING для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
151811-44H00-291 COVER, HEADLAMP (BLACK)COVER, HEADLAMP (BLACK)
-
244543-10G00 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
303541-0516A SCREWSCREW
-
451821-44H00-PGZ COVER, HEADLAMP RIGHT HAND (GRAY) (FOR AR4)COVER, HEADLAMP RIGHT HAND (GRAY) (FOR AR4)
-
451821-44H00-YWW COVER, HEADLAMP RIGHT HAND (WHITE) (FOR AJP)COVER, HEADLAMP RIGHT HAND (WHITE) (FOR AJP)
-
451821-44H00-YKV COVER, HEADLAMP RIGHT HAND (BLACK) (FOR KGL)COVER, HEADLAMP RIGHT HAND (BLACK) (FOR KGL)
-
551831-44H00-PGZ COVER, HEADLAMP LEFT HAND (GRAY) (FOR AR4)COVER, HEADLAMP LEFT HAND (GRAY) (FOR AR4)
-
551831-44H00-YWW COVER, HEADLAMP LEFT HAND (WHITE) (FOR AJP)COVER, HEADLAMP LEFT HAND (WHITE) (FOR AJP)
-
551831-44H00-YKV COVER, HEADLAMP LEFT HAND (BLACK) (FOR KGL)COVER, HEADLAMP LEFT HAND (BLACK) (FOR KGL)
-
609139-05064 SCREW (5X13)SCREW (5X13)
-
751850-44H00 BRACE, HOUSINGBRACE, HOUSING
-
801547-0612A BOLTBOLT
-
951831-21D00 CUSHION, BRACECUSHION, BRACE
