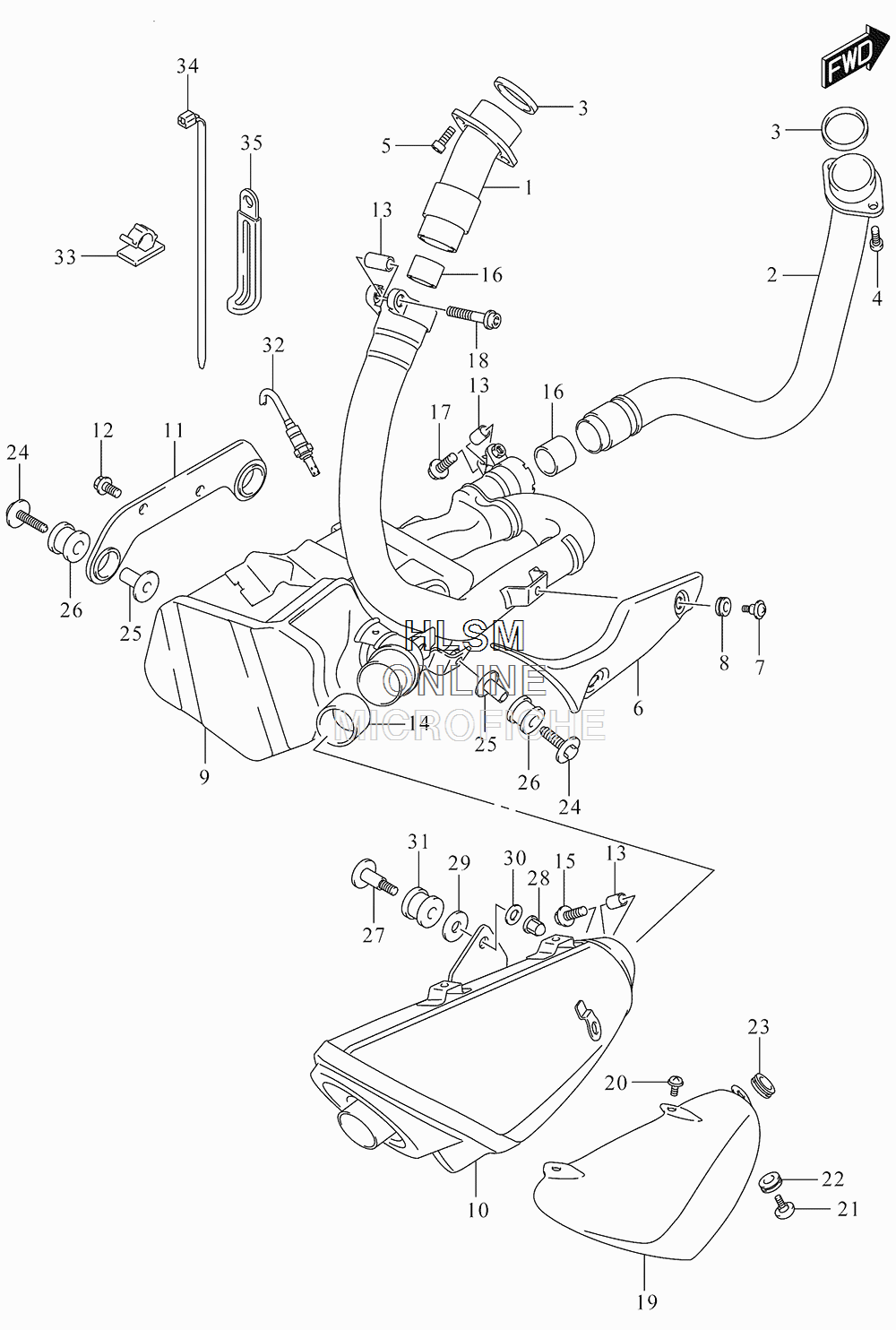

MUFFLER для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
114150-44H00 PIPE, EXHAUST RRPIPE, EXHAUST RR
-
214160-44H00 PIPE, EXHAUST FRPIPE, EXHAUST FR
-
314181-22D01 GASKETGASKET
-
409106-08165 BOLT (8X25)BOLT (8X25)
-
507130-0825B BOLTBOLT
-
614180-44H10 COVER, EXHAUSTCOVER, EXHAUST
-
709139-06124 SCREW (6X12)SCREW (6X12)
-
809320-08066 CUSHIONCUSHION
-
914200-44H01 CHAMBER (W/CATALYST)CHAMBER (W/CATALYST)
-
1014310-44H00-H01 BODY, MUFFLERBODY, MUFFLER
-
1114410-44H00 BRACKETBRACKET
-
1201550-0816A BOLTBOLT
-
1314458-06H00 SPACER, CLAMPSPACER, CLAMP
-
1414771-45G00 CONNECTOR, MUFFLER JOINTCONNECTOR, MUFFLER JOINT
-
1509103-08365 BOLT (8X35)BOLT (8X35)
-
1614771-32E00 CONNECTOR, EXHAUSTCONNECTOR, EXHAUST
-
1709103-08365 BOLT (8X35)BOLT (8X35)
-
1809106-08162 BOLT (8X40)BOLT (8X40)
-
1914780-44H10 COVER, MUFFLERCOVER, MUFFLER
-
2009139-06122 SCREW (6X10)SCREW (6X10)
-
2109139-06124 SCREW (6X12)SCREW (6X12)
-
2209320-08066 CUSHIONCUSHION
-
2309321-10018 CUSHIONCUSHION
-
2409118-08145 BOLT (8X40)BOLT (8X40)
-
2509180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
2609320-12077 CUSHIONCUSHION
-
2714419-29F00 BOLT, MUFFLERBOLT, MUFFLER
-
2809159-08143 NUTNUT
-
2909160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
3009160-08124 WASHER (8.5X20X1.6)WASHER (8.5X20X1.6)
-
3109320-12077 CUSHIONCUSHION
-
3218213-18H10 SENSOR, OXYGENSENSOR, OXYGEN
-
3309403-08327 CLIPCLIP
-
3409407-18402 CLAMP (L:165)CLAMP (L:165)
-
3509404-06429 CLAMP (L:45)CLAMP (L:45)
