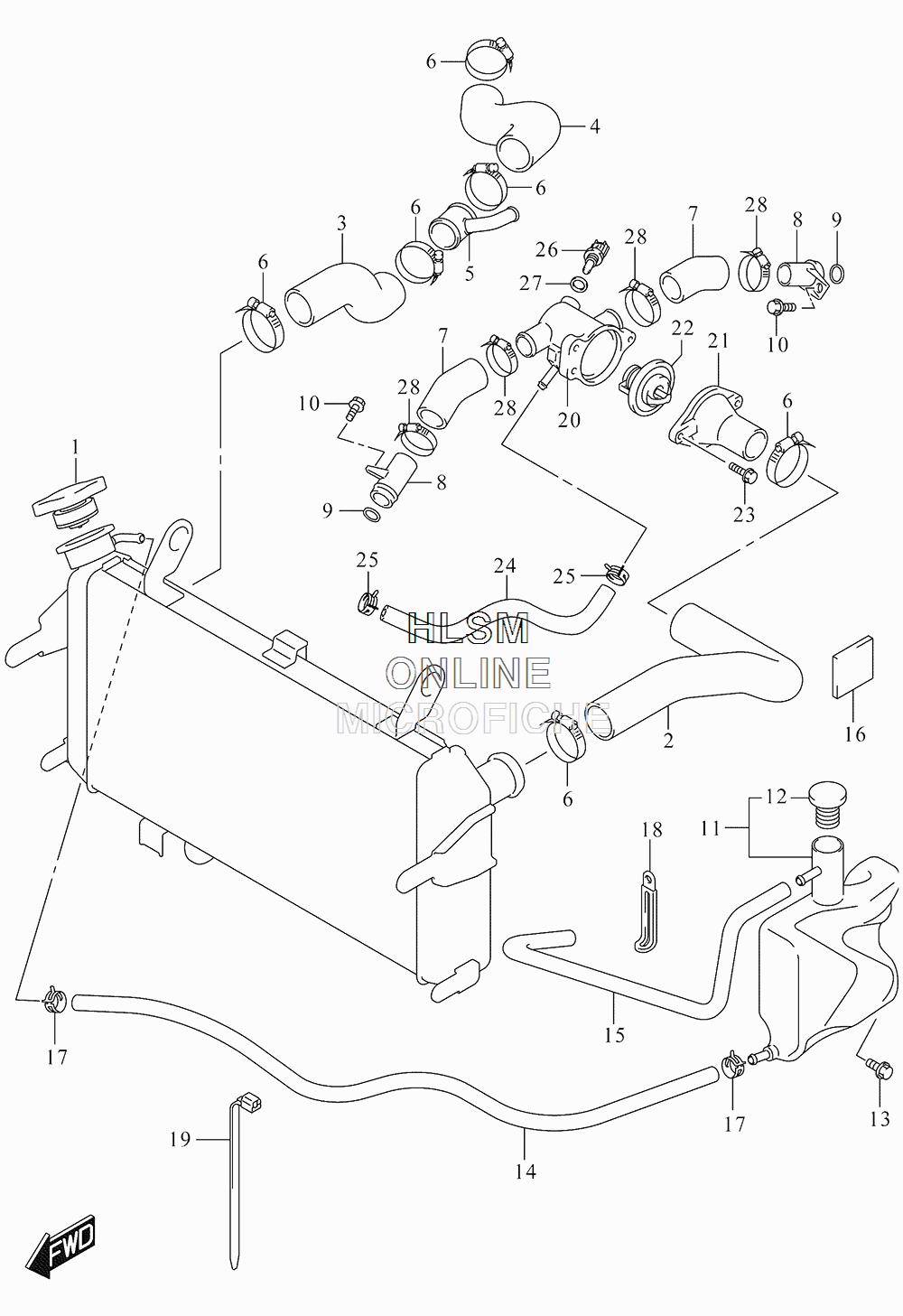

RADIATOR HOSE W/ RESERVOIR для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
117730-12C30 CAP, RADIATOR 1.1CAP, RADIATOR 1.1
-
217851-44H00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
317852-44H00 HOSE, RADIATOR OUTLET NO.1HOSE, RADIATOR OUTLET NO.1
-
417854-44H00 HOSE, RADIATOR OUTLET NO.2HOSE, RADIATOR OUTLET NO.2
-
517880-44H00 UNION, 3WAYUNION, 3WAY
-
609402-38512 CLAMPCLAMP
-
717853-19F00 HOSE, CONNECTOR INLETHOSE, CONNECTOR INLET
-
817890-06G20 UNION, CONNECTOR HOSEUNION, CONNECTOR HOSE
-
909280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1007130-0612A BOLTBOLT
-
1117910-44H00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1217931-02FA0 ...CAP, RESERVOIR TANK...CAP, RESERVOIR TANK
-
1309111-06085 BOLT (6X12)BOLT (6X12)
-
1417981-44H00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
1517982-44H00 HOSE, RESERVOIR TANK OVERFLOWHOSE, RESERVOIR TANK OVERFLOW
-
1663191-25C00 CUSHION, RESERVOIR TANK (CUT AS REQUIRED)CUSHION, RESERVOIR TANK (CUT AS REQUIRED)
-
1709401-08411 CLIPCLIP
-
1809404-06429 CLAMP (L:45)CLAMP (L:45)
-
1909407-19401 CLAMP (L:190)CLAMP (L:190)
-
2017662-02F11 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2117663-17G00 CAP, THERMOSTAT CONNECTORCAP, THERMOSTAT CONNECTOR
-
2217670-06G70 THERMOSTAT, WATERTHERMOSTAT, WATER
-
2301547-0616A BOLTBOLT
-
2417856-44H00 HOSE, CONNECTOR TO WATER PUMPHOSE, CONNECTOR TO WATER PUMP
-
2509401-12414 CLAMPCLAMP
-
2613650-49X00 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
2709168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
2809402-28513 CLAMPCLAMP
