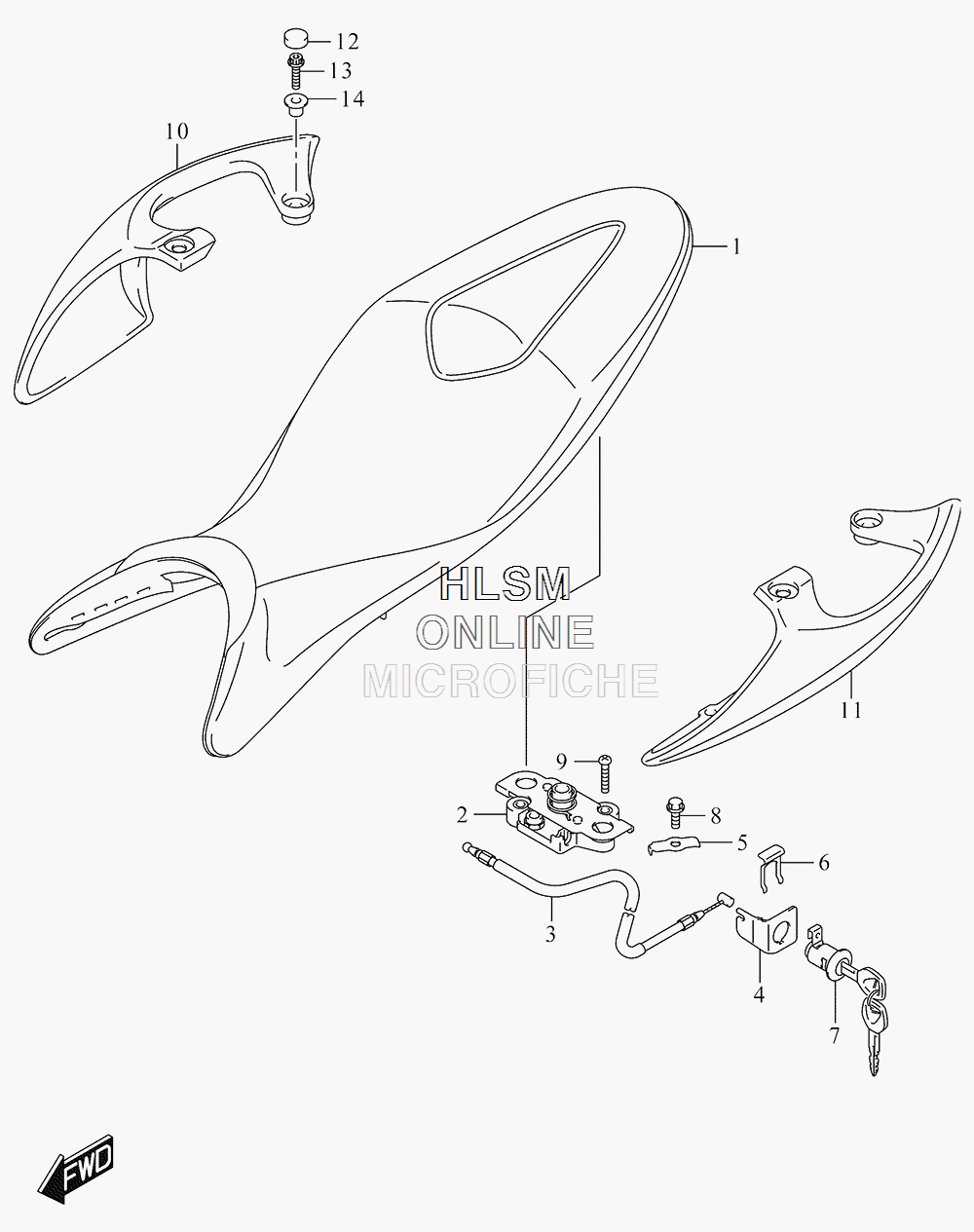

SEAT (CALIF) для Suzuki SFV650A L5 GLADIUS W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
145100-44H40-JRV SEAT ASSY (BLACK/GRAY)SEAT ASSY (BLACK/GRAY)
-
245220-15H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
345280-44H01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
445288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
545288-44H00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
645289-11F00 PLATE, SEAT LOCK ASSYPLATE, SEAT LOCK ASSY
-
795700-14F00 LOCK ASSY, SEATLOCK ASSY, SEAT
-
801547-0612A BOLTBOLT
-
902142-0630A SCREWSCREW
-
1046211-44H00-YVB HANDLE, PILLION RIDER RIGHT HAND (BLACK)HANDLE, PILLION RIDER RIGHT HAND (BLACK)
-
1146231-44H10-YVB HANDLE, PILLION RIDER LEFT HAND (BLACK)HANDLE, PILLION RIDER LEFT HAND (BLACK)
-
1246271-14G00 CAP, PILLION RIDER HANDLECAP, PILLION RIDER HANDLE
-
1309106-08151 BOLT (8X25)BOLT (8X25)
-
1409169-08049 WASHERWASHER
