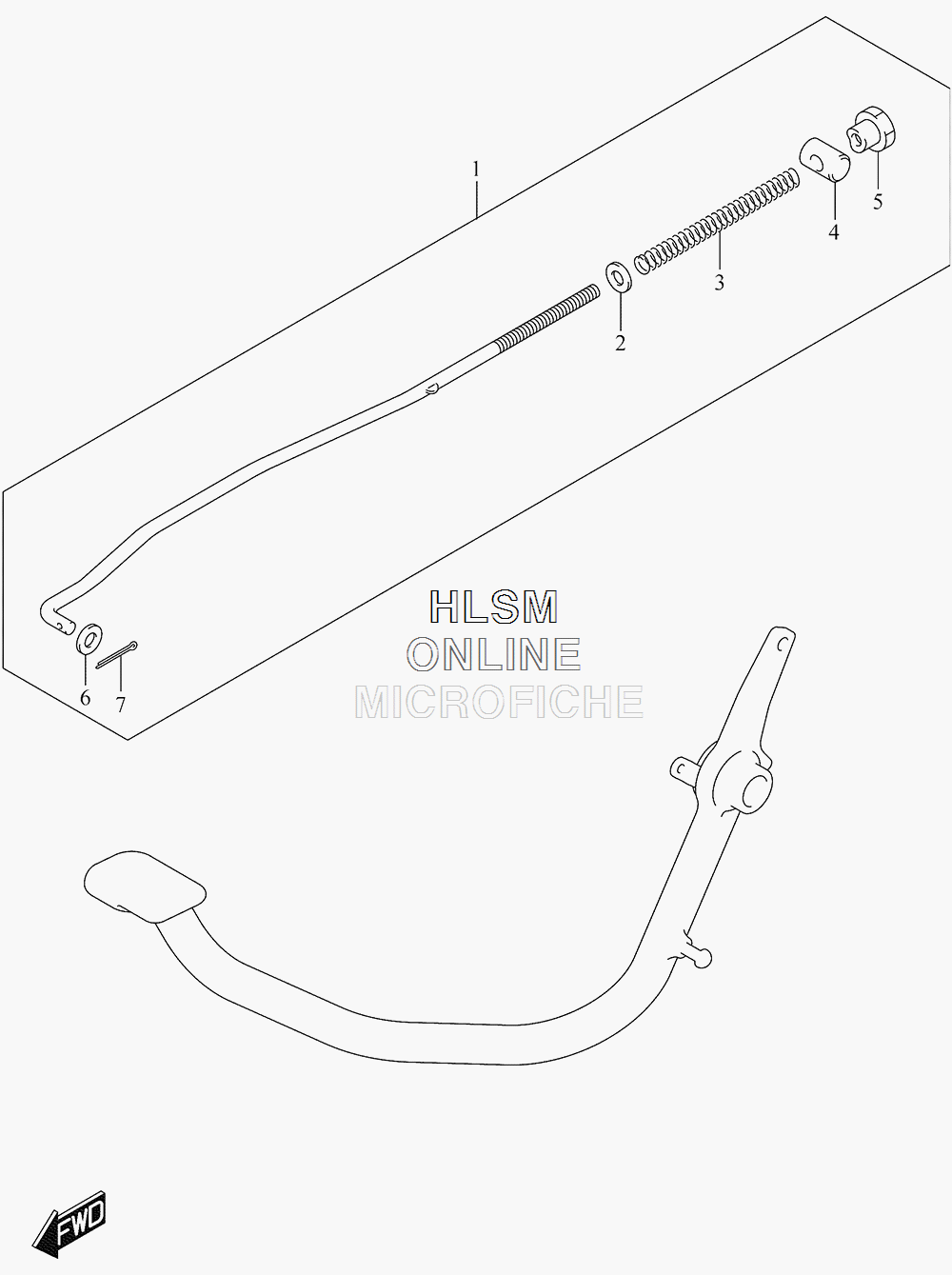

BRAKE - REAR ROD для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
143300-26G00 ROD ASSY, REAR BRAKEROD ASSY, REAR BRAKE
-
208322-0106B ...WASHER...WASHER
-
309440-09004 ...SPRING...SPRING
-
409209-11002 ...PIN (11X18)...PIN (11X18)
-
509150-06010 ...NUT...NUT
-
608322-0105B ...WASHER...WASHER
-
704111-2020A ...COTTER PIN...COTTER PIN
