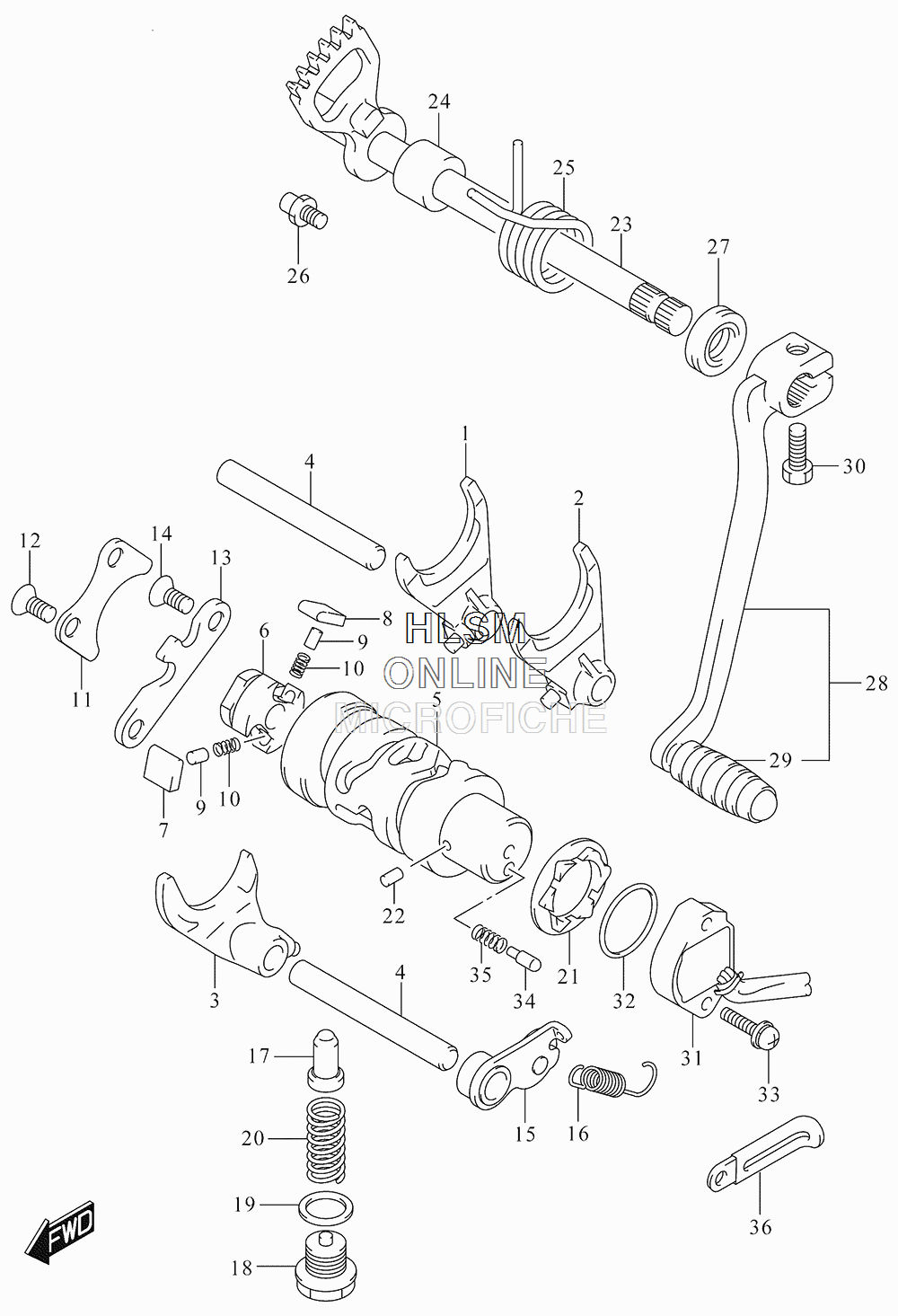

GEAR SHIFTING для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
125211-32402 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-32403 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-32402 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-14331 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
525310-38210 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
625322-31310 GEAR, GEAR SHIFT CAM DRIVENGEAR, GEAR SHIFT CAM DRIVEN
-
725323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
825324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
909261-05003 PIN (5X8)PIN (5X8)
-
1009440-04003 SPRINGSPRING
-
1125331-38201 LIFTER, GEAR SHIFT PAWLLIFTER, GEAR SHIFT PAWL
-
1209126-06011 SCREW (6X12)SCREW (6X12)
-
1325341-38200 GUIDE, GEAR SHIFT CAMGUIDE, GEAR SHIFT CAM
-
1409126-06011 SCREW (6X12)SCREW (6X12)
-
1525350-34000 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1609443-08026 SPRINGSPRING
-
1725351-30010 STOPPER, GEAR SHIFT CAM NEUTRALSTOPPER, GEAR SHIFT CAM NEUTRAL
-
1809247-14026 PLUG (14X12)PLUG (14X12)
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2009440-11026 SPRINGSPRING
-
2125381-45400 PLATE, GEAR SHIFT CAM STOPPERPLATE, GEAR SHIFT CAM STOPPER
-
2204221-04069 PINPIN
-
2325510-38200 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2409180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
2509444-26004 SPRINGSPRING
-
2625671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2709285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2825600-053A0 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
2925652-16500 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3001500-0620A BOLTBOLT
-
3137720-25D00 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
3209280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
3309106-05023 BOLT (5X16)BOLT (5X16)
-
3409209-05011 PIN (5X15.5)PIN (5X15.5)
-
3509440-04010 SPRINGSPRING
-
3609404-06433 CLAMP (L:80)CLAMP (L:80)
