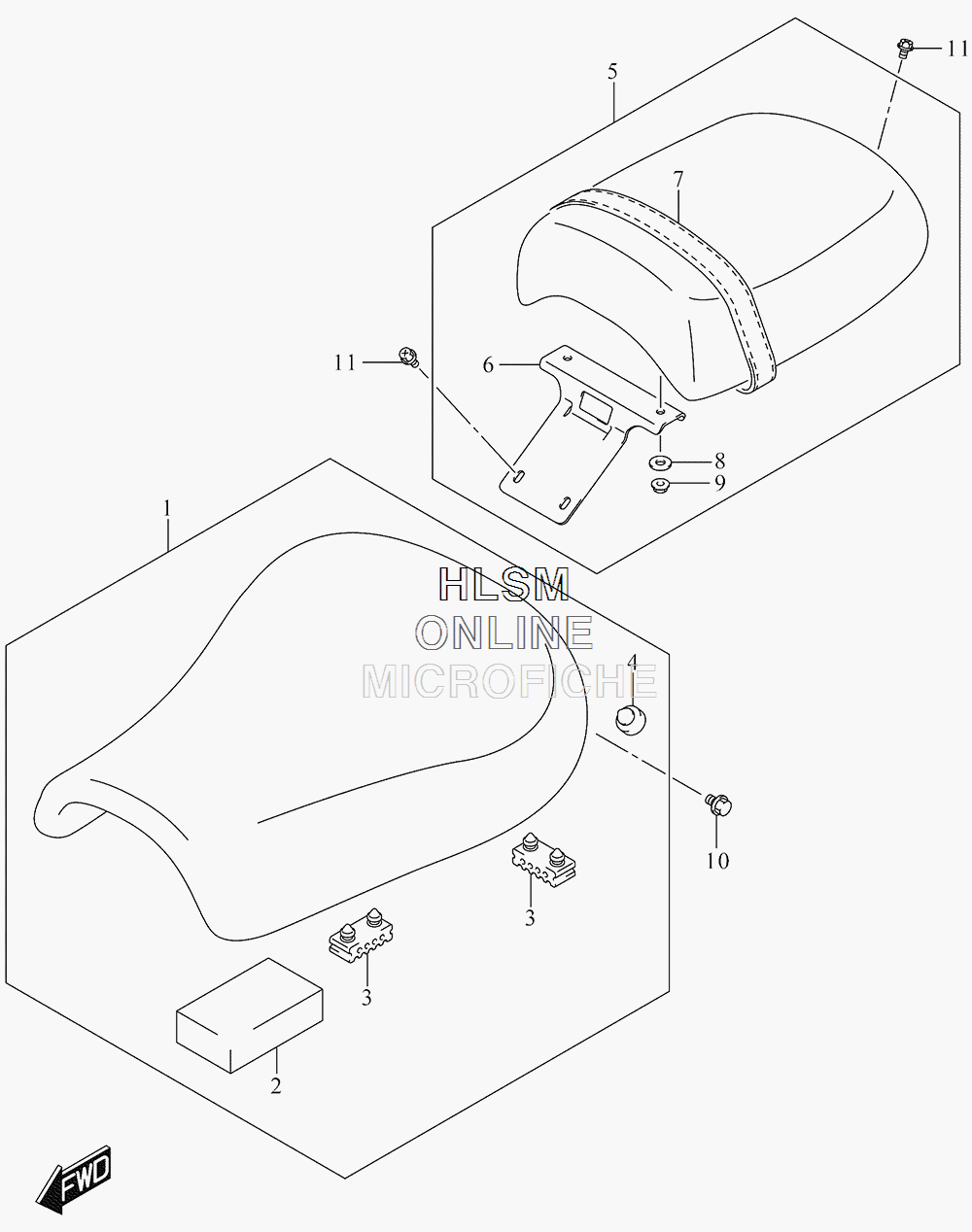

SEAT для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
145100-26G10-58P SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-26G00 ...CUSHION, TOOL...CUSHION, TOOL
-
345149-31300 ...CUSHION, FRONT...CUSHION, FRONT
-
409321-10012 ...CUSHION (REAR)...CUSHION (REAR)
-
545300-26G00-9MG SEAT ASSY, PILLION (BLACK/WHITE)SEAT ASSY, PILLION (BLACK/WHITE)
-
645316-26G00 ...PLATE, FRONT...PLATE, FRONT
-
745381-26G00 ...BAND, SEAT GRIP...BAND, SEAT GRIP
-
809160-06084 ...WASHER (6.5X18X1.6)...WASHER (6.5X18X1.6)
-
908316-1006B ...NUT...NUT
-
1001550-0812B BOLTBOLT
-
1101550-0612B BOLTBOLT
