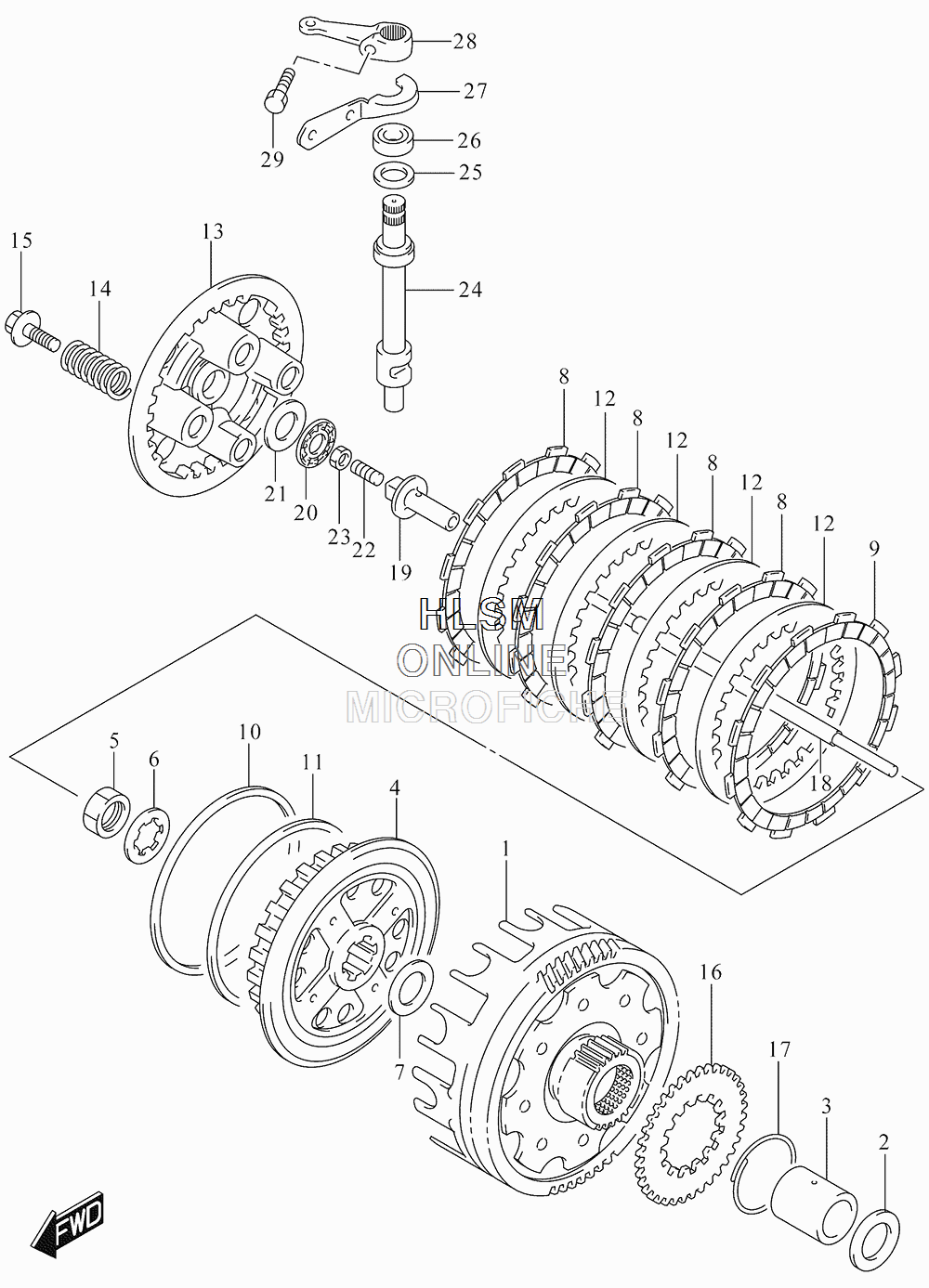

CLUTCH для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
121200-38201 GEAR ASSY, PRIMARY DRIVEN (NT:16/68)GEAR ASSY, PRIMARY DRIVEN (NT:16/68)
-
208211-22363 WASHERWASHER
-
309180-22024 SPACER (22X28X37.5)SPACER (22X28X37.5)
-
421411-38201 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
509140-22005 NUTNUT
-
609167-22010 LOCK WASHERLOCK WASHER
-
708211-22363 WASHERWASHER
-
821441-37400 PLATE, CLUTCH DRIVE NO.1 (T:3.0)PLATE, CLUTCH DRIVE NO.1 (T:3.0)
-
921442-37401 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
1021471-37400 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1109164-00004 WASHERWASHER
-
1221451-14A00 PLATE, CLUTCH DRIVEN (T:1.6)PLATE, CLUTCH DRIVEN (T:1.6)
-
1321462-27A00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1421413-13F00 SPRING, CLUTCHSPRING, CLUTCH
-
1509116-06167 BOLT (6X20)BOLT (6X20)
-
1616321-38210 GEAR, ENGINE OIL PUMP (NT:16/38)GEAR, ENGINE OIL PUMP (NT:16/38)
-
1709380-50001 CIRCLIPCIRCLIP
-
1823110-38201 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1923121-38201 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2009263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2109160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2209134-06010 SCREW (6X25)SCREW (6X25)
-
2309140-06023 NUTNUT
-
2423122-38200 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2509160-14054 WASHER (14.5X22X1)WASHER (14.5X22X1)
-
2609285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2723117-38200 PLATE, CAMSHAFT OIL SEALPLATE, CAMSHAFT OIL SEAL
-
2823271-12D10 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2901500-0620A BOLTBOLT
