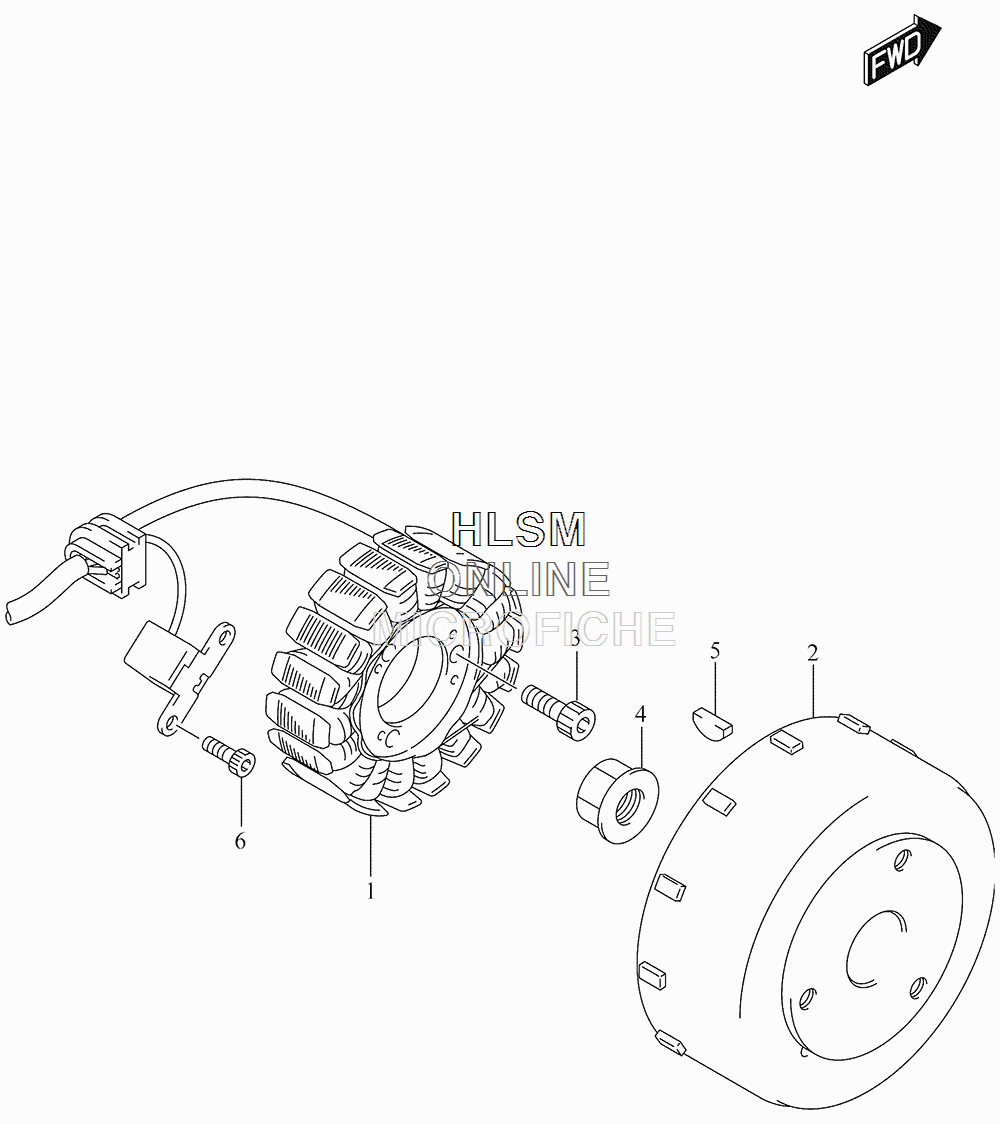

MAGNETO для Suzuki TU250X L5 - 2015 года выпуска
-
№АртикулНазвание
-
132101-26G10 STARTOR ASSYSTARTOR ASSY
-
232102-26G00 ROTOR ASSYROTOR ASSY
-
307130-0630A BOLTBOLT
-
431792-49200 NUTNUT
-
508341-31039 KEYKEY
-
607130-0512A BOLTBOLT
