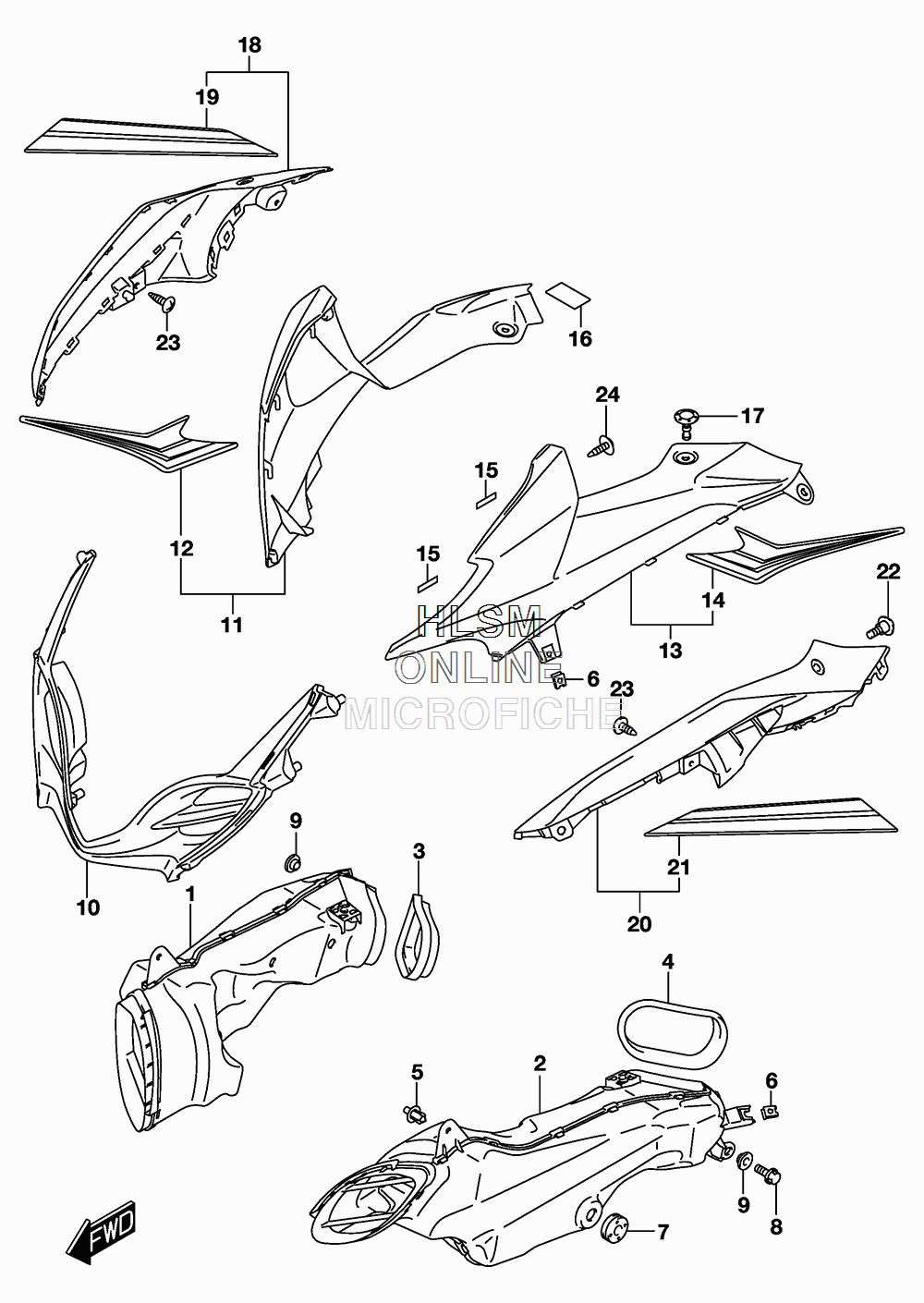

AIR INTAKE (AJP-JSP) для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
194420-47H00 PIPE, AIR INTAKE RHPIPE, AIR INTAKE RH
-
294430-47H00 PIPE, AIR INTAKE LHPIPE, AIR INTAKE LH
-
394423-47H00 MOLDING, RHMOLDING, RH
-
494433-47H00 MOLDING, LHMOLDING, LH
-
509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
609148-05052 NUTNUT
-
709320-08028 CUSHIONCUSHION
-
801550-0616A BOLTBOLT
-
909169-06082 WASHERWASHER
-
1094671-47H10-YKV COVER, INTAKE FRONT (BLACK)COVER, INTAKE FRONT (BLACK)
-
1194670-47H10-YKY COVER, INTAKE RH (BLUE) (FOR AJP)COVER, INTAKE RH (BLUE) (FOR AJP)
-
1194670-47H10-YVZ COVER, INTAKE RH (RED) (FOR JSP)COVER, INTAKE RH (RED) (FOR JSP)
-
1268275-47H20-BAG ...TAPE, INTAKE COVER RH (FOR YKY)...TAPE, INTAKE COVER RH (FOR YKY)
-
1268275-47H20-BAF ...TAPE, INTAKE COVER RH (FOR YVZ)...TAPE, INTAKE COVER RH (FOR YVZ)
-
1394680-47H10-YKY COVER, INTAKE LH (BLUE) (FOR AJP)COVER, INTAKE LH (BLUE) (FOR AJP)
-
1394680-47H10-YVZ COVER, INTAKE LH (RED) (FOR JSP)COVER, INTAKE LH (RED) (FOR JSP)
-
1468276-47H20-BAG ...TAPE, INTAKE COVER LH (FOR YKY)...TAPE, INTAKE COVER LH (FOR YKY)
-
1468276-47H20-BAF ...TAPE, INTAKE COVER LH (FOR YVZ)...TAPE, INTAKE COVER LH (FOR YVZ)
-
1594443-06G00 TAPETAPE
-
1633652-13E00 CUSHIONCUSHION
-
1794479-35F00 CLIPCLIP
-
1894450-47H00-YWW COWL, SIDE UPPER RH (WHITE) (FOR AJP)COWL, SIDE UPPER RH (WHITE) (FOR AJP)
-
1894450-47H00-YVB COWL, SIDE UPPER RH (BLACK) (FOR JSP)COWL, SIDE UPPER RH (BLACK) (FOR JSP)
-
1968685-47H60-BAH ...TAPE, SIDE COWLING UPPER RH (FOR YWW)...TAPE, SIDE COWLING UPPER RH (FOR YWW)
-
1968685-47H60-A2Z ...TAPE, SIDE COWLING UPPER RH (FOR YVB)...TAPE, SIDE COWLING UPPER RH (FOR YVB)
-
2094460-47H00-YWW COWL, SIDE UPPER LH (WHITE) (FOR AJP)COWL, SIDE UPPER LH (WHITE) (FOR AJP)
-
2094460-47H00-YVB COWL, SIDE UPPER LH (BLACK) (FOR JSP)COWL, SIDE UPPER LH (BLACK) (FOR JSP)
-
2168695-47H60-BAH ...TAPE, SIDE COWLING UPPER LH (FOR YWW)...TAPE, SIDE COWLING UPPER LH (FOR YWW)
-
2168695-47H60-A2Z ...TAPE, SIDE COWLING UPPER LH (FOR YVB)...TAPE, SIDE COWLING UPPER LH (FOR YVB)
-
2209139-05077 SCREW (5X16)SCREW (5X16)
-
2303541-0516A SCREWSCREW
-
2409132-05050 SCREW (5X12)SCREW (5X12)
