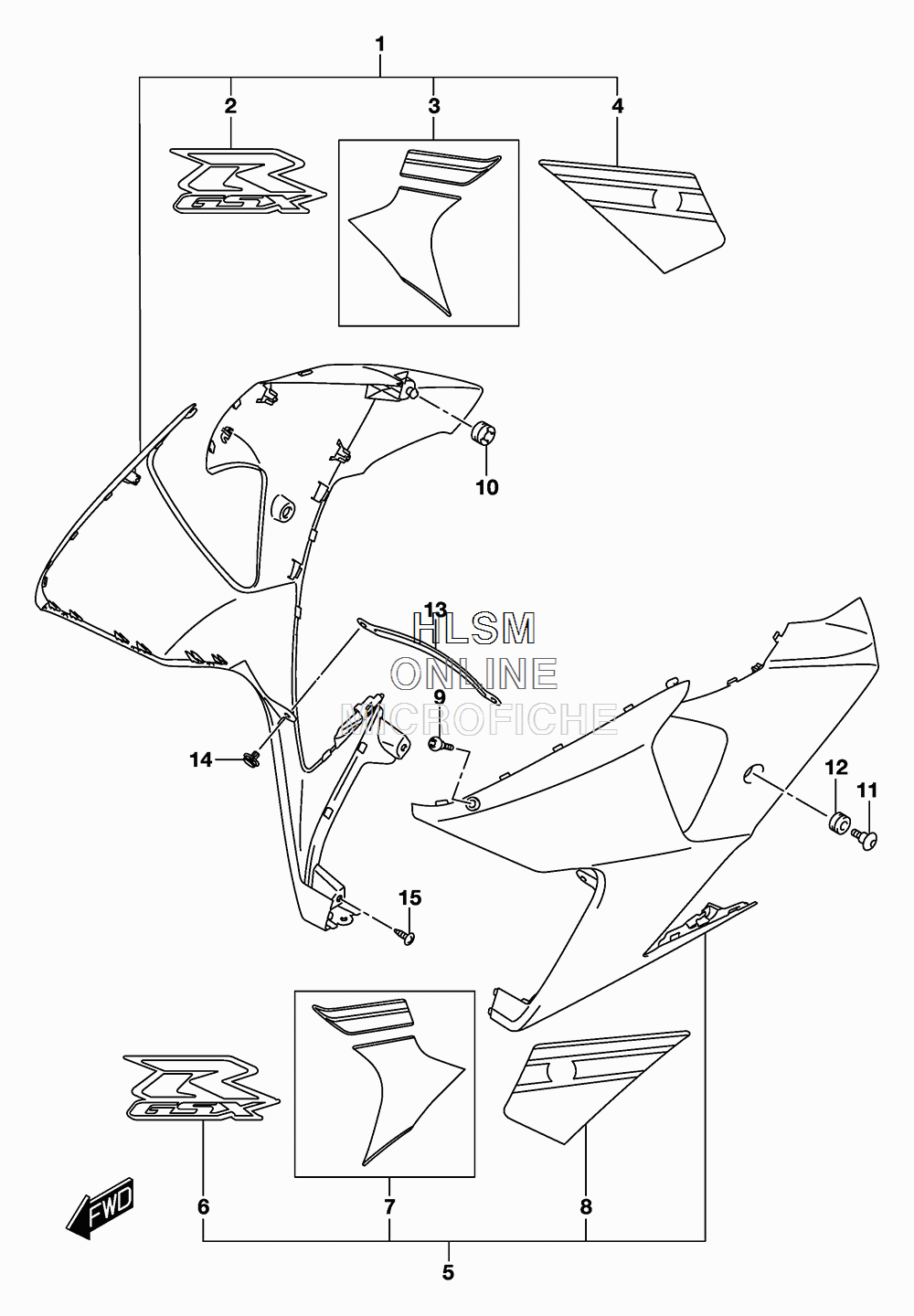

COWLING - SIDE (AJP-JSP) для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
194490-47HB0-YWW COWLING, SIDE RH (WHITE) (FOR AJP)COWLING, SIDE RH (WHITE) (FOR AJP)
-
194490-47HB0-YVB COWLING, SIDE RH (BLACK) (FOR JSP)COWLING, SIDE RH (BLACK) (FOR JSP)
-
268681-47H30-AG9 ...EMBLEM, ''GSXR'' RH (FOR YWW)...EMBLEM, ''GSXR'' RH (FOR YWW)
-
268681-47H30-A5Q ...EMBLEM, ''GSXR'' RH (FOR YVB)...EMBLEM, ''GSXR'' RH (FOR YVB)
-
368680-47H40-BAG ...TAPE SET, SIDE COWLING RH (FOR YWW)...TAPE SET, SIDE COWLING RH (FOR YWW)
-
368680-47H40-BAF ...TAPE SET, SIDE COWLING RH (FOR YVB)...TAPE SET, SIDE COWLING RH (FOR YVB)
-
468685-47H50-BAG ...TAPE, SIDE COWLIMG RH (FOR YWW)...TAPE, SIDE COWLIMG RH (FOR YWW)
-
468685-47H50-BAF ...TAPE, SIDE COWLIMG RH (FOR YVB)...TAPE, SIDE COWLIMG RH (FOR YVB)
-
594440-47HB0-YWW COWLING, SIDE LH (WHITE) (FOR AJP)COWLING, SIDE LH (WHITE) (FOR AJP)
-
594440-47HB0-YVB COWLING, SIDE LH (BLACK) (FOR JSP)COWLING, SIDE LH (BLACK) (FOR JSP)
-
668691-47H30-AG9 ...EMBLEM, ''GSXR'' LH (FOR YWW)...EMBLEM, ''GSXR'' LH (FOR YWW)
-
668691-47H30-A5Q ...EMBLEM, ''GSXR'' LH (FOR YVB)...EMBLEM, ''GSXR'' LH (FOR YVB)
-
768690-47H40-BAG ...TAPE SET, SIDE COWLING LH (FOR YWW)...TAPE SET, SIDE COWLING LH (FOR YWW)
-
768690-47H40-BAF ...TAPE SET, SIDE COWLING LH (FOR YVB)...TAPE SET, SIDE COWLING LH (FOR YVB)
-
868695-47H50-BAG ...TAPE, SIDE COWLIMG LH (FOR YWW)...TAPE, SIDE COWLIMG LH (FOR YWW)
-
868695-47H50-BAF ...TAPE, SIDE COWLIMG LH (FOR YVB)...TAPE, SIDE COWLIMG LH (FOR YVB)
-
909139-05077 SCREW (5X16)SCREW (5X16)
-
1009320-08028 CUSHIONCUSHION
-
1109139-06190 BOLT (6X20)BOLT (6X20)
-
1209320-09016 CUSHIONCUSHION
-
1394498-47H00 BRACKETBRACKET
-
1494479-35F00 CLIPCLIP
-
1503541-0516A SCREWSCREW
